| 08316-10083-000 |
Nut |

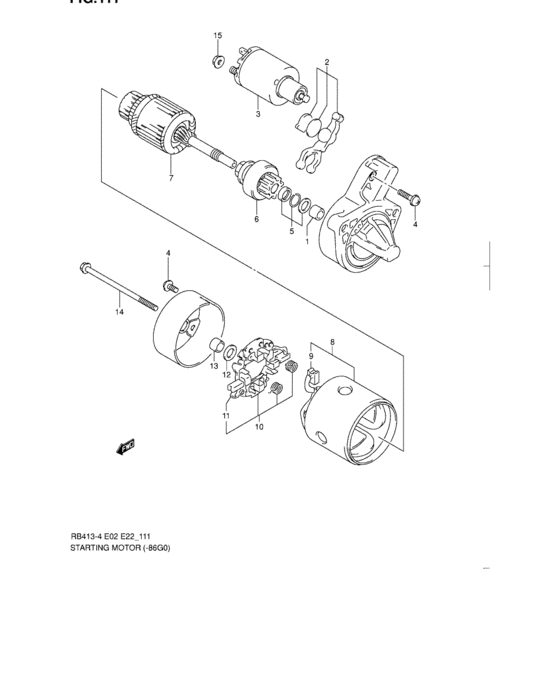

Starting motor (RB413,NAME PLATE:31100-86G0) |
| 08316-1008B-000 |
NUT |
Starting motor (RB413,NAME PLATE:31100-86G0) |
| 31100-86G00-000 |
Motor assy, starting - 0.8kw |
Starting motor (RB413,NAME PLATE:31100-86G0) |
| 31110-70B30-000 |
YOKE ASSY |
Starting motor (RB413,NAME PLATE:31100-86G0) |
| 31131-80090-000 |
BRUSH(+) |
Starting motor (RB413,NAME PLATE:31100-86G0) |
| 31132-80090-000 |
BRUSH(-) |
Starting motor (RB413,NAME PLATE:31100-86G0) |
| 31136-79030-000 |
SCREW ASSY |
Starting motor (RB413,NAME PLATE:31100-86G0) |
| 31152-79030-000 |
BEARING,FRONT |
Starting motor (RB413,NAME PLATE:31100-86G0) |
| 31172-79030-000 |
BUSH |
Starting motor (RB413,NAME PLATE:31100-86G0) |
| 31173-82130-000 |
HOLDER ASSY,BRUSH |
Starting motor (RB413,NAME PLATE:31100-86G0) |
| 31175-79030-000 |
Screw Set |
Starting motor (RB413,NAME PLATE:31100-86G0) |
| 31191-78141-000 |
LEVER ASSY |
Starting motor (RB413,NAME PLATE:31100-86G0) |
| 31220-84030-000 |
SWITCH ASSY |
Starting motor (RB413,NAME PLATE:31100-86G0) |
| 31261-82130-000 |
Bolt |
Starting motor (RB413,NAME PLATE:31100-86G0) |
| 31311-86G00-000 |
ARMATURE |
Starting motor (RB413,NAME PLATE:31100-86G0) |
| 31313-80090-000 |
RING SET |
Starting motor (RB413,NAME PLATE:31100-86G0) |
| 31320-86G00-000 |
CLUTCH,OVER RUNNING |
Starting motor (RB413,NAME PLATE:31100-86G0) |
| 31361-79030-000 |
WASHER |
Starting motor (RB413,NAME PLATE:31100-86G0) |
