RB413D

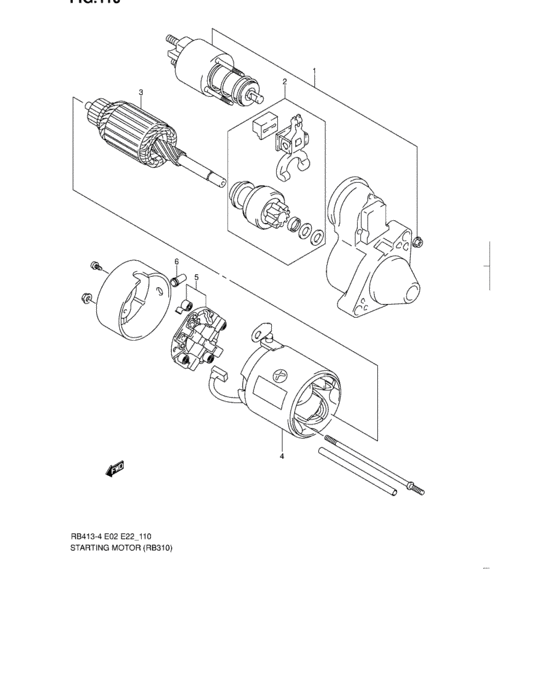

Starting motor (RB310) 7
| # | OEM | Part name |
|---|---|---|
| 0 | 31100-80E10-000 | Motor assy, starting |
| 1 | 31220-80E10-000 | Switch assy |
| 2 | 31320-80E10-000 | Clutch assy |
| 3 | 31311-80E10-000 | Armature |
| 4 | 31110-80E10-000 | Yoke assy |
| 5 | 31131-80E10-000 | Holder assy, brush |
| 6 | 31172-80E10-000 | Pipe, ventilation |
| OEM | Part name | Category |
|---|---|---|
| 31100-80E10-000 | Motor assy, starting | Starting motor (RB310) |
| 31110-80E10-000 | Yoke assy | Starting motor (RB310) |
| 31131-80E10-000 | Holder assy, brush | Starting motor (RB310) |
| 31172-80E10-000 | Pipe, ventilation | Starting motor (RB310) |
| 31220-80E10-000 | Switch assy | Starting motor (RB310) |
| 31311-80E10-000 | Armature | Starting motor (RB310) |
| 31320-80E10-000 | Clutch assy | Starting motor (RB310) |
