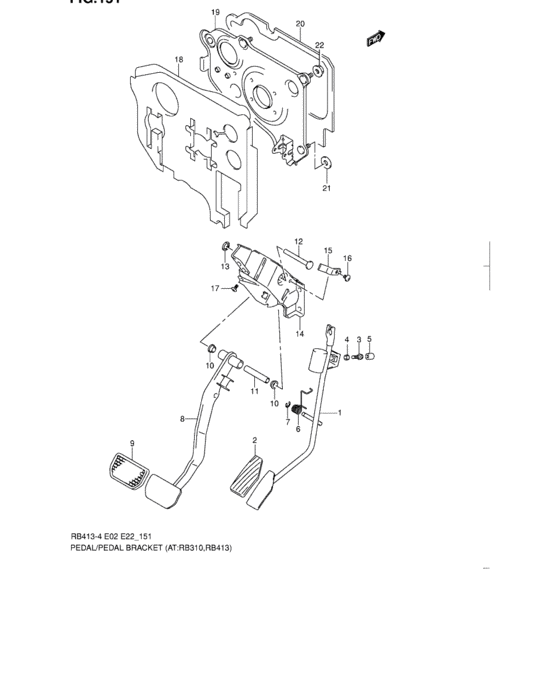

Pedal/pedal bracket (AT)
29
| # | OEM | Part name |
|---|
| 1 |
49410-83E50-000 |
Pedal, accelerator |
| 1 |
49410-83E00-000 |
Pedal, accelerator |
| 2 |
49451-60B00-000 |
PAD,ACCELERATOR PEDAL |
| 3 |
09100-06055-000 |
BOLT(6X25) |
| 4 |
08310-00063-000 |
Nut |
| 4 |
08310-0006B-000 |
NUT - Nut gear shift link rod |
| 4 |
08310-0006A-000 |
NUT |
| 5 |
09251-05007-000 |
CAP(OD:13.6) |
| 6 |
09448-15016-000 |
SPRING |
| 7 |
08332-11073-000 |
E ring |
| 7 |
08332-1107A-000 |
E RING |
| 8 |
49610-83E60-000 |
Pedal, brake |
| 8 |
49610-83E10-000 |
Pedal, brake |
| 9 |
49751-86300-000 |
Pad, brake pedal |
| 9 |
49751-58J10-000 |
PAD,PEDAL |
| 10 |
09307-13005-000 |
BUSH - Bushing |
| 11 |
09180-10121-000 |
SPACER(10.1X13X73.8) |
| 12 |
49672-83E00-000 |
Shaft, brake pedal |
| 13 |
09148-10001-000 |
NUT |
| 14 |
49710-83E00-000 |
Bracket, brake pedal |
| 15 |
49719-83E00-000 |
Stopper, pedal shaft |
| 16 |
09125-05039-000 |
SCREW(5X6) |
| 18 |
49737-85E00-000 |
Silencer, pedal base |
| 19 |
49730-83E80-000 |
Base, pedal |
| 19 |
49730-83E30-000 |
Base, pedal |
| 20 |
49739-83E00-000 |
Packing, pedal base |
| 21 |
49736-83E00-000 |
Packing, pedal base bolt |
| 22 |
08316-10083-000 |
Nut |
| 22 |
08316-1008B-000 |
NUT |
| OEM |
Part name |
Category |
| 08310-00063-000 |
Nut |
Pedal/pedal bracket (AT) |
| 08310-0006A-000 |
NUT |
Pedal/pedal bracket (AT) |
| 08310-0006B-000 |
NUT - Nut gear shift link rod |
Pedal/pedal bracket (AT) |
| 08316-10083-000 |
Nut |
Pedal/pedal bracket (AT) |
| 08316-1008B-000 |
NUT |
Pedal/pedal bracket (AT) |
| 08332-11073-000 |
E ring |
Pedal/pedal bracket (AT) |
| 08332-1107A-000 |
E RING |
Pedal/pedal bracket (AT) |
| 09100-06055-000 |
BOLT(6X25) |
Pedal/pedal bracket (AT) |
| 09125-05039-000 |
SCREW(5X6) |
Pedal/pedal bracket (AT) |
| 09148-10001-000 |
NUT |
Pedal/pedal bracket (AT) |
| 09180-10121-000 |
SPACER(10.1X13X73.8) |
Pedal/pedal bracket (AT) |
| 09251-05007-000 |
CAP(OD:13.6) |
Pedal/pedal bracket (AT) |
| 09307-13005-000 |
BUSH - Bushing |
Pedal/pedal bracket (AT) |
| 09448-15016-000 |
SPRING |
Pedal/pedal bracket (AT) |
| 49410-83E00-000 |
Pedal, accelerator |
Pedal/pedal bracket (AT) |
| 49410-83E50-000 |
Pedal, accelerator |
Pedal/pedal bracket (AT) |
| 49451-60B00-000 |
PAD,ACCELERATOR PEDAL |
Pedal/pedal bracket (AT) |
| 49610-83E10-000 |
Pedal, brake |
Pedal/pedal bracket (AT) |
| 49610-83E60-000 |
Pedal, brake |
Pedal/pedal bracket (AT) |
| 49672-83E00-000 |
Shaft, brake pedal |
Pedal/pedal bracket (AT) |
| 49710-83E00-000 |
Bracket, brake pedal |
Pedal/pedal bracket (AT) |
| 49719-83E00-000 |
Stopper, pedal shaft |
Pedal/pedal bracket (AT) |
| 49730-83E30-000 |
Base, pedal |
Pedal/pedal bracket (AT) |
| 49730-83E80-000 |
Base, pedal |
Pedal/pedal bracket (AT) |
| 49736-83E00-000 |
Packing, pedal base bolt |
Pedal/pedal bracket (AT) |
| 49737-85E00-000 |
Silencer, pedal base |
Pedal/pedal bracket (AT) |
| 49739-83E00-000 |
Packing, pedal base |
Pedal/pedal bracket (AT) |
| 49751-58J10-000 |
PAD,PEDAL |
Pedal/pedal bracket (AT) |
| 49751-86300-000 |
Pad, brake pedal |
Pedal/pedal bracket (AT) |
