RB413D

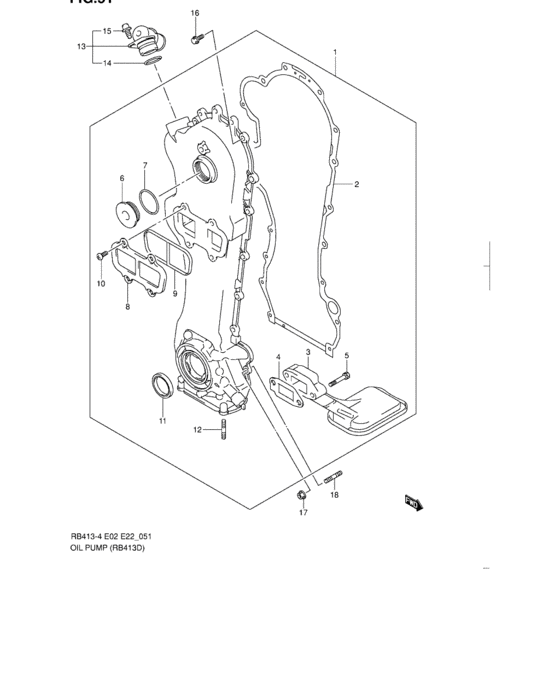

Oil pump (RB413D) 18
| # | OEM | Part name |
|---|---|---|
| 1 | 11360-85E00-000 | Pump assy, oil |
| 2 | 16119-85E00-000 | Gasket, oil pump |
| 3 | 16520-85E00-000 | Tube, suction |
| 4 | 16521-85E00-000 | Gasket, suction tube |
| 5 | 11394-85E00-000 | Bolt, oil pump cover - 6x35 |
| 6 | 16187-85E00-000 | Plug, oil pump |
| 7 | 16529-85E00-000 | Gasket, plug |
| 8 | 16161-85E00-000 | Cover, Oil Pump |
| 9 | 16528-85E00-000 | Gasket, cover |
| 10 | 16186-85E00-000 | Bolt, oil pump cover |
| 11 | 16114-85E00-000 | Oil seal |
| 12 | 16181-85E00-000 | Stud bolt |
| 13 | 11381-85E00-000 | Connector |
| 14 | 16561-85E00-000 | Ring, connector |
| 15 | 16185-85E00-000 | Bolt - 6x16 |
| 16 | 16565-85E00-000 | Bolt, oil pump cover - 6x22 |
| 17 | 16123-85E00-000 | Nut, oil pump cover |
| 18 | 11384-85E00-000 | Stud bolt, oil pump |
| OEM | Part name | Category |
|---|---|---|
| 11360-85E00-000 | Pump assy, oil | Oil pump (RB413D) |
| 11381-85E00-000 | Connector | Oil pump (RB413D) |
| 11384-85E00-000 | Stud bolt, oil pump | Oil pump (RB413D) |
| 11394-85E00-000 | Bolt, oil pump cover - 6x35 | Oil pump (RB413D) |
| 16114-85E00-000 | Oil seal | Oil pump (RB413D) |
| 16119-85E00-000 | Gasket, oil pump | Oil pump (RB413D) |
| 16123-85E00-000 | Nut, oil pump cover | Oil pump (RB413D) |
| 16161-85E00-000 | Cover, Oil Pump | Oil pump (RB413D) |
| 16181-85E00-000 | Stud bolt | Oil pump (RB413D) |
| 16185-85E00-000 | Bolt - 6x16 | Oil pump (RB413D) |
| 16186-85E00-000 | Bolt, oil pump cover | Oil pump (RB413D) |
| 16187-85E00-000 | Plug, oil pump | Oil pump (RB413D) |
| 16520-85E00-000 | Tube, suction | Oil pump (RB413D) |
| 16521-85E00-000 | Gasket, suction tube | Oil pump (RB413D) |
| 16528-85E00-000 | Gasket, cover | Oil pump (RB413D) |
| 16529-85E00-000 | Gasket, plug | Oil pump (RB413D) |
| 16561-85E00-000 | Ring, connector | Oil pump (RB413D) |
| 16565-85E00-000 | Bolt, oil pump cover - 6x22 | Oil pump (RB413D) |
