RB413D

Suzuki WAGON-R-PLUS-SOLIO-WIDE · 3,697 parts · 203 categories
RB413D ×

← Back to categories

3,697 items

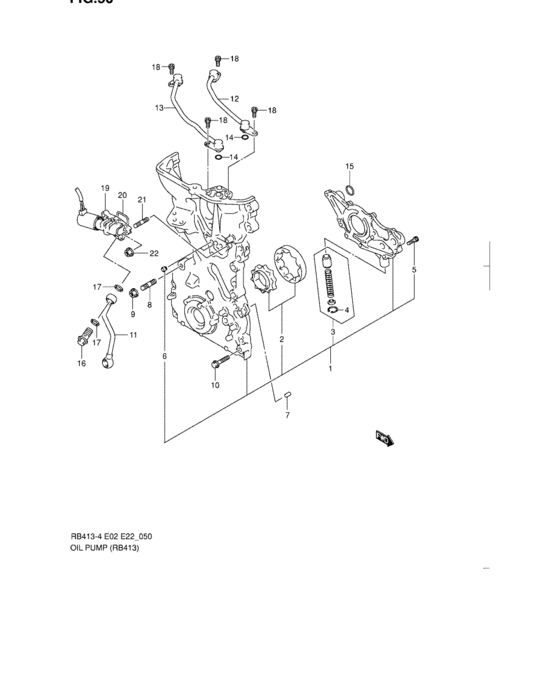

Oil pump (RB413) 36
#OEMPart name
1 16100-69GE4-000 ポンプアッシ,オイル
1 16100-69GF0-000 PUMP ASSY,OIL
1 16100-69GE6-000 ポンプアッシ,オイル
2 16130-69GE0-000 ROTOR SET,OIL PUMP
3 16150-60A10-000 Valve set, oil pump relief
3 16150-60A20-000 VALVE SET,OIL PUMP RELIEF
4 08331-41156-000 Circlip
4 08331-4115A-000 CIRCLIP
5 07130-06253-000 Bolt
5 07130-0625B-000 Bolt
6 16116-69GE0-000 FILTER,OIL GALLERY
7 09206-06005-000 PIN(4X6X11)
8 09108-08090-000 Bolt, stud 8x25 - Stud bolt (8x25)
8 09108-08276-000 BOLT,STUD
9 08316-10083-000 Nut
9 08316-1008B-000 NUT
10 01550-08353-000 Bolt, rear
10 01550-0835B-000 Bolt
10 01550-0835A-000 Bolt
11 16140-69GE0-000 パイプ,オイルギャラリ,NO.1
11 16140-69GE2-000 PIPE,OIL GALLERY NO.1
12 16170-69GE0-000 PIPE,OIL GALLERY NO.2
13 16180-69GE0-000 PIPE,OIL GALLERY NO.3
14 16147-78G70-000 O-RING,OIL PIPE D:1.9 ID:7.8
15 09280-17002-000 O RING(D:2.4,ID:16.8) - O ring (d:2.4,id:16.8)
16 09360-12005-000 UNION - Bolt,union
17 09168-12017-000 GASKET(12X17X1) - Gasket, drain plug
18 07130-06123-000 Bolt - Bolt, oil guide plate lh
18 07130-0612A-000 Bolt
19 16550-69GE2-000 バルブ,オイルコントロール
19 16550-69GE3-000 VALVE,OIL CONTROL
20 16559-69GE0-000 GASKET,OCV
21 09108-06118-000 Bolt, stud (l:20) - Stud bolt
21 09108-06134-000 BOLT,STUD
22 08316-10063-000 Nut
22 08316-1006B-000 NUT
