RB413D

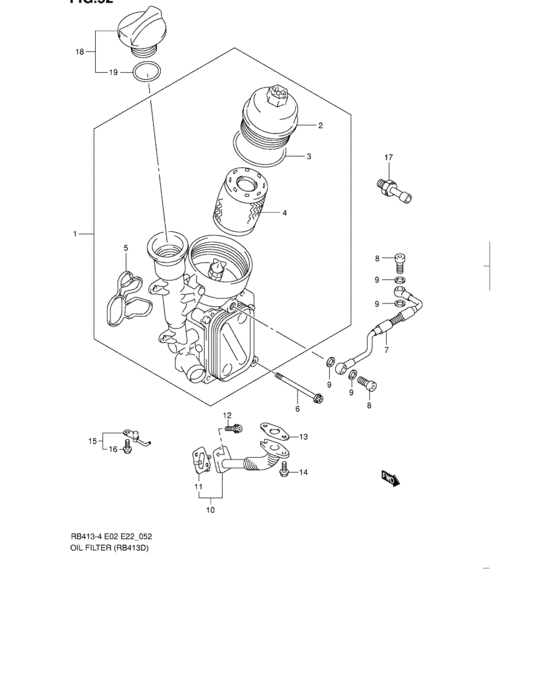

Oil filter (RB413D) 29
| # | OEM | Part name |
|---|---|---|
| 1 | 16510-85E00-000 | Filter assy, oil |
| 1 | 16510-85E10-000 | Filter assy, oil |
| 2 | 16522-85E00-000 | Cover, oil fltr |
| 2 | 16522-85E10-000 | Cover, oil fltr |
| 3 | 16621-85E00-000 | Seal, oil fltr cover |
| 3 | 16621-85E10-000 | Seal, oil fltr cover |
| 4 | 16511-85E00-000 | Element, oil fltr |
| 4 | 16511-85E10-000 | Element, oil fltr |
| 5 | 16512-85E00-000 | Seal, oil fltr hsg |
| 5 | 16512-85E10-000 | Seal, oil fltr hsg |
| 6 | 16593-85E00-000 | Bolt, oil fltr |
| 7 | 13930-85E00-000 | Pipe assy, fltr hsg to turbo |
| 7 | 13930-85E10-000 | Pipe assy, fltr hsg to turbo |
| 8 | 13948-85E00-000 | Bolt, fltr hsg |
| 8 | 13948-85E10-000 | Bolt, fltr hsg |
| 9 | 13949-85E00-000 | Gasket, pipe to turbo |
| 9 | 13949-85E10-000 | Gasket, pipe to turbo |
| 10 | 13946-85E00-000 | Pipe assy, oil return |
| 11 | 13945-85E00-000 | Gasket |
| 12 | 13947-85E00-000 | Bolt, return pipe - 6x12 |
| 13 | 13944-85E00-000 | Gasket, return pipe |
| 14 | 13943-85E00-000 | Bolt, bracket - 6x14 |
| 15 | 16591-85E00-000 | Jet, oil piston cooling |
| 16 | 16592-85E00-000 | Bolt |
| 17 | 16582-85E00-000 | Switch, oil pressure |
| 18 | 16920-85E00-000 | Cap, oil filler |
| 18 | 16920-85E10-000 | Cap, oil filler |
| 19 | 16921-85E00-000 | O ring |
| 19 | 16921-85E10-000 | O ring |
| OEM | Part name | Category |
|---|---|---|
| 13930-85E00-000 | Pipe assy, fltr hsg to turbo | Oil filter (RB413D) |
| 13930-85E10-000 | Pipe assy, fltr hsg to turbo | Oil filter (RB413D) |
| 13943-85E00-000 | Bolt, bracket - 6x14 | Oil filter (RB413D) |
| 13944-85E00-000 | Gasket, return pipe | Oil filter (RB413D) |
| 13945-85E00-000 | Gasket | Oil filter (RB413D) |
| 13946-85E00-000 | Pipe assy, oil return | Oil filter (RB413D) |
| 13947-85E00-000 | Bolt, return pipe - 6x12 | Oil filter (RB413D) |
| 13948-85E00-000 | Bolt, fltr hsg | Oil filter (RB413D) |
| 13948-85E10-000 | Bolt, fltr hsg | Oil filter (RB413D) |
| 13949-85E00-000 | Gasket, pipe to turbo | Oil filter (RB413D) |
| 13949-85E10-000 | Gasket, pipe to turbo | Oil filter (RB413D) |
| 16510-85E00-000 | Filter assy, oil | Oil filter (RB413D) |
| 16510-85E10-000 | Filter assy, oil | Oil filter (RB413D) |
| 16511-85E00-000 | Element, oil fltr | Oil filter (RB413D) |
| 16511-85E10-000 | Element, oil fltr | Oil filter (RB413D) |
| 16512-85E00-000 | Seal, oil fltr hsg | Oil filter (RB413D) |
| 16512-85E10-000 | Seal, oil fltr hsg | Oil filter (RB413D) |
| 16522-85E00-000 | Cover, oil fltr | Oil filter (RB413D) |
| 16522-85E10-000 | Cover, oil fltr | Oil filter (RB413D) |
| 16582-85E00-000 | Switch, oil pressure | Oil filter (RB413D) |
| 16591-85E00-000 | Jet, oil piston cooling | Oil filter (RB413D) |
| 16592-85E00-000 | Bolt | Oil filter (RB413D) |
| 16593-85E00-000 | Bolt, oil fltr | Oil filter (RB413D) |
| 16621-85E00-000 | Seal, oil fltr cover | Oil filter (RB413D) |
| 16621-85E10-000 | Seal, oil fltr cover | Oil filter (RB413D) |
| 16920-85E00-000 | Cap, oil filler | Oil filter (RB413D) |
| 16920-85E10-000 | Cap, oil filler | Oil filter (RB413D) |
| 16921-85E00-000 | O ring | Oil filter (RB413D) |
| 16921-85E10-000 | O ring | Oil filter (RB413D) |
