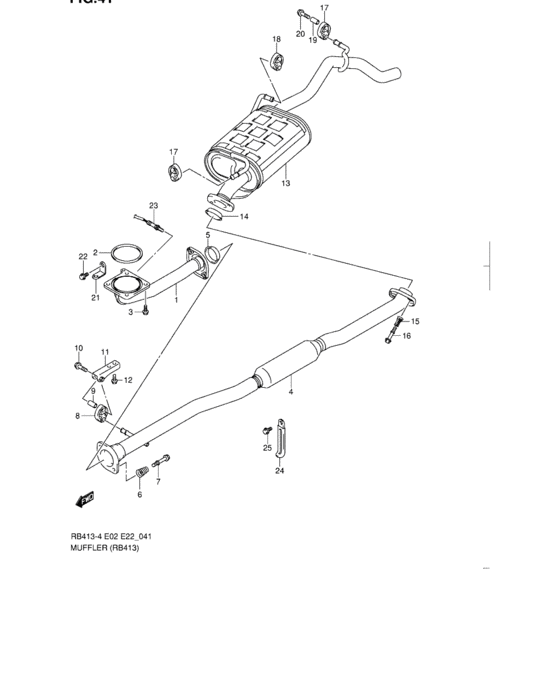

Muffler (RB413)
29
| # | OEM | Part name |
|---|
| 1 |
14190-86G00-000 |
Pipe, exh no.1 |
| 2 |
14181-60G10-000 |
GASKET,EXH PIPE |
| 3 |
09103-10324-000 |
BOLT(10X20) |
| 4 |
14250-86G00-000 |
Pipe, exh no.2 |
| 5 |
14183-65D00-000 |
RING,SEAL EXH PIPE |
| 6 |
14492-82610-000 |
SPRING,EXH PIPE |
| 7 |
09119-10041-000 |
BOLT(10X65) |
| 8 |
14281-83E00-000 |
Mounting |
| 9 |
09180-08057-000 |
Spacer |
| 9 |
09180-08227-000 |
SPACER(8.2X12.5X23.5) |
| 10 |
01550-08403-000 |
Bolt |
| 10 |
01550-0840B-000 |
Bolt |
| 10 |
01550-0840A-000 |
Bolt |
| 11 |
14283-83E10-000 |
Bracket, exh pipe |
| 12 |
02162-06123-000 |
Bolt (6x12) |
| 12 |
02162-0612B-000 |
SCREW - Bolt |
| 12 |
02162-0612A-000 |
SCREW - Bolt, bracket |
| 13 |
14300-84E00-000 |
Muffler |
| 14 |
14183-76A00-000 |
RING,SEAL EXH PIPE |
| 17 |
14281-70H00-000 |
MOUNTINGMUFFLER |
| 17 |
14281-80JA0-000 |
MOUNTING,MUF |
| 20 |
01551-08353-000 |
ボルト |
| 20 |
01551-0835A-000 |
Bolt |
| 21 |
14271-86G00-000 |
Stiffener |
| 23 |
18213-86G10-000 |
Sensor, oxygen |
| 24 |
09404-08206-000 |
CLAMP(L:65 T:0.8) |
| 25 |
01550-08123-000 |
Bolt - Plug, oil gallery |
| 25 |
01550-0812B-000 |
Bolt - Plug, drain |
| 25 |
01550-0812A-000 |
Bolt |
| OEM |
Part name |
Category |
| 01550-08123-000 |
Bolt - Plug, oil gallery |
Muffler (RB413) |
| 01550-0812A-000 |
Bolt |
Muffler (RB413) |
| 01550-0812B-000 |
Bolt - Plug, drain |
Muffler (RB413) |
| 01550-08403-000 |
Bolt |
Muffler (RB413) |
| 01550-0840A-000 |
Bolt |
Muffler (RB413) |
| 01550-0840B-000 |
Bolt |
Muffler (RB413) |
| 01551-08353-000 |
ボルト |
Muffler (RB413) |
| 01551-0835A-000 |
Bolt |
Muffler (RB413) |
| 02162-06123-000 |
Bolt (6x12) |
Muffler (RB413) |
| 02162-0612A-000 |
SCREW - Bolt, bracket |
Muffler (RB413) |
| 02162-0612B-000 |
SCREW - Bolt |
Muffler (RB413) |
| 09103-10324-000 |
BOLT(10X20) |
Muffler (RB413) |
| 09119-10041-000 |
BOLT(10X65) |
Muffler (RB413) |
| 09180-08057-000 |
Spacer |
Muffler (RB413) |
| 09180-08227-000 |
SPACER(8.2X12.5X23.5) |
Muffler (RB413) |
| 09404-08206-000 |
CLAMP(L:65 T:0.8) |
Muffler (RB413) |
| 14181-60G10-000 |
GASKET,EXH PIPE |
Muffler (RB413) |
| 14183-65D00-000 |
RING,SEAL EXH PIPE |
Muffler (RB413) |
| 14183-76A00-000 |
RING,SEAL EXH PIPE |
Muffler (RB413) |
| 14190-86G00-000 |
Pipe, exh no.1 |
Muffler (RB413) |
| 14250-86G00-000 |
Pipe, exh no.2 |
Muffler (RB413) |
| 14271-86G00-000 |
Stiffener |
Muffler (RB413) |
| 14281-70H00-000 |
MOUNTINGMUFFLER |
Muffler (RB413) |
| 14281-80JA0-000 |
MOUNTING,MUF |
Muffler (RB413) |
| 14281-83E00-000 |
Mounting |
Muffler (RB413) |
| 14283-83E10-000 |
Bracket, exh pipe |
Muffler (RB413) |
| 14300-84E00-000 |
Muffler |
Muffler (RB413) |
| 14492-82610-000 |
SPRING,EXH PIPE |
Muffler (RB413) |
| 18213-86G10-000 |
Sensor, oxygen |
Muffler (RB413) |
