RB413D

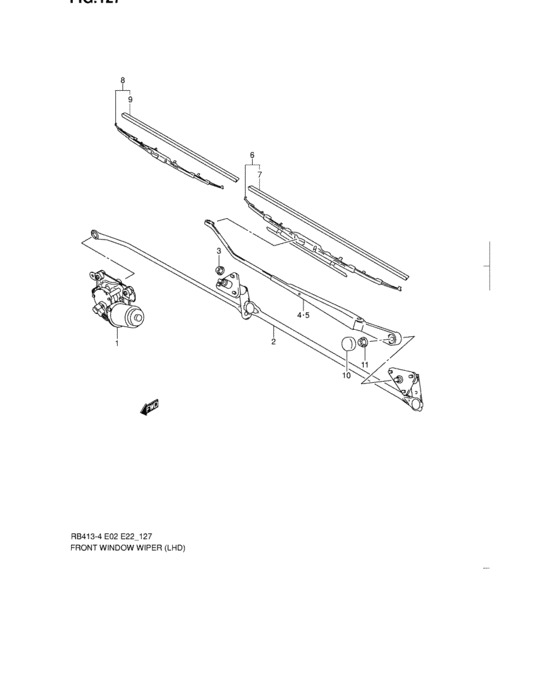

Front window wiper (LHD) 15
| # | OEM | Part name |
|---|---|---|
| 1 | 38101-83E00-000 | Motor & bracket assy, wiper |
| 1 | 38101-83E20-000 | Motor & bracket assy, wiper |
| 2 | 38102-83E01-000 | Link assy, wiper |
| 3 | 08316-10063-000 | Nut |
| 3 | 08316-1006B-000 | NUT |
| 4 | 38310-83E00-000 | Arm assy, wiper lh |
| 5 | 38330-83E00-000 | Arm assy, wiper rh |
| 6 | 38340-83E00-000 | Blade assy, wiper lh |
| 7 | 38346-83E00-000 | Blade |
| 8 | 38340-83E20-000 | Blade assy, wiper rh |
| 9 | 38346-83E10-000 | Blade |
| 10 | 38315-60B10-000 | Cap - Cap, wiper arm |
| 10 | 38315-60B11-000 | CAP,WIPER PIVOT |
| 11 | 08316-10083-000 | Nut |
| 11 | 08316-1008B-000 | NUT |
| OEM | Part name | Category |
|---|---|---|
| 08316-10063-000 | Nut | Front window wiper (LHD) |
| 08316-1006B-000 | NUT | Front window wiper (LHD) |
| 08316-10083-000 | Nut | Front window wiper (LHD) |
| 08316-1008B-000 | NUT | Front window wiper (LHD) |
| 38101-83E00-000 | Motor & bracket assy, wiper | Front window wiper (LHD) |
| 38101-83E20-000 | Motor & bracket assy, wiper | Front window wiper (LHD) |
| 38102-83E01-000 | Link assy, wiper | Front window wiper (LHD) |
| 38310-83E00-000 | Arm assy, wiper lh | Front window wiper (LHD) |
| 38315-60B10-000 | Cap - Cap, wiper arm | Front window wiper (LHD) |
| 38315-60B11-000 | CAP,WIPER PIVOT | Front window wiper (LHD) |
| 38330-83E00-000 | Arm assy, wiper rh | Front window wiper (LHD) |
| 38340-83E00-000 | Blade assy, wiper lh | Front window wiper (LHD) |
| 38340-83E20-000 | Blade assy, wiper rh | Front window wiper (LHD) |
| 38346-83E00-000 | Blade | Front window wiper (LHD) |
| 38346-83E10-000 | Blade | Front window wiper (LHD) |
