Search › Model › RB413D

RB413D

Suzuki WAGON-R-PLUS-SOLIO-WIDE · 3,697 parts · 203 categories

3,697 items

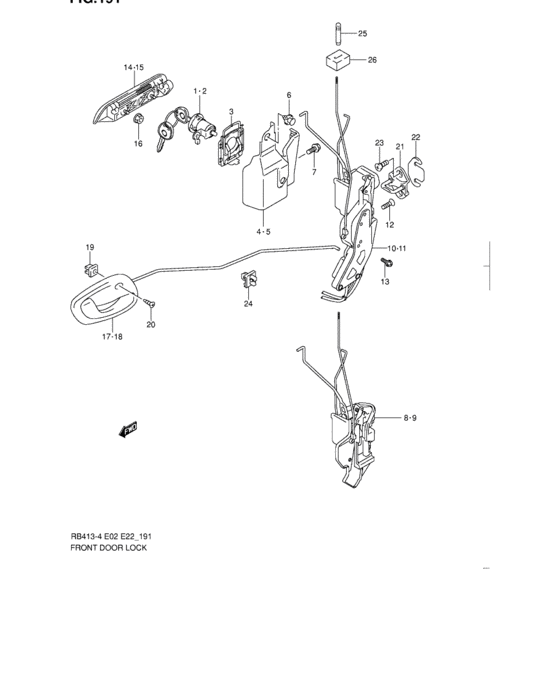

Front door lock (FRONT DOOR LOCK) 32

#	OEM	Part name
1	82270-83831-000	Cylinder, front door lock rh
2	82280-83831-000	Cylinder, front door lock lh
3	82291-83E00-000	RETAINER,DOOR LATCH CYLINDER
4	82295-83E00-000	PROTECTOR,FR DOOR CYLINDER,R
5	82296-83E00-000	PROTECTOR,FR DOOR CYLINDER,L
6	09409-08333-000	CLIP
7	02162-06123-000	Bolt (6x12)
7	02162-0612B-000	SCREW - Bolt
7	02162-0612A-000	SCREW - Bolt, bracket
8	82201-83E00-000	Latch assy,front door,r
9	82202-83E00-000	Latch assy, front door lh
10	82201-84E10-000	Latch assy, front door rh
11	82202-84E10-000	Latch assy, front door lh
12	09137-06028-000	SCREW(6X18)
14	82810-83E00-5PK	Handle assy, dr out rh - Black
15	82820-83E00-5PK	Handle assy, dr out lh - Black
16	08316-10063-000	Nut
16	08316-1006B-000	NUT
17	83101-83E00-S1S	Handle, door inside rh - Gray
18	83102-83E00-S1S	Handle, door inside lh - Gray
19	09148-05031-000	NUT
20	03521-05163-000	Screw
20	03521-0516A-000	SCREW
21	82610-72B11-000	STRIKER COMPDOOR
21	82610-72B12-000	STRIKER,DOOR LATCH
22	78199-78000-000	SPACER,DOOR LOCK STRIKER
23	09137-08006-000	Screw - Screw (8x18)
23	09137-08011-000	SCREW(8X18)
23	09137-08004-000	SCREW(8X18)
24	83271-60D00-000	CLIP
25	82982-83E00-S1S	Knob, door inside lock - Gray
26	83211-76G00-000	PAD SIDE DOOR INSIDE LOCK

OEM	Part name	Category
02162-06123-000	Bolt (6x12)	Front door lock (FRONT DOOR LOCK)
02162-0612A-000	SCREW - Bolt, bracket	Front door lock (FRONT DOOR LOCK)
02162-0612B-000	SCREW - Bolt	Front door lock (FRONT DOOR LOCK)
03521-05163-000	Screw	Front door lock (FRONT DOOR LOCK)
03521-0516A-000	SCREW	Front door lock (FRONT DOOR LOCK)
08316-10063-000	Nut	Front door lock (FRONT DOOR LOCK)
08316-1006B-000	NUT	Front door lock (FRONT DOOR LOCK)
09137-06028-000	SCREW(6X18)	Front door lock (FRONT DOOR LOCK)
09137-08004-000	SCREW(8X18)	Front door lock (FRONT DOOR LOCK)
09137-08006-000	Screw - Screw (8x18)	Front door lock (FRONT DOOR LOCK)
09137-08011-000	SCREW(8X18)	Front door lock (FRONT DOOR LOCK)
09148-05031-000	NUT	Front door lock (FRONT DOOR LOCK)
09409-08333-000	CLIP	Front door lock (FRONT DOOR LOCK)
78199-78000-000	SPACER,DOOR LOCK STRIKER	Front door lock (FRONT DOOR LOCK)
82201-83E00-000	Latch assy,front door,r	Front door lock (FRONT DOOR LOCK)
82201-84E10-000	Latch assy, front door rh	Front door lock (FRONT DOOR LOCK)
82202-83E00-000	Latch assy, front door lh	Front door lock (FRONT DOOR LOCK)
82202-84E10-000	Latch assy, front door lh	Front door lock (FRONT DOOR LOCK)
82270-83831-000	Cylinder, front door lock rh	Front door lock (FRONT DOOR LOCK)
82280-83831-000	Cylinder, front door lock lh	Front door lock (FRONT DOOR LOCK)
82291-83E00-000	RETAINER,DOOR LATCH CYLINDER	Front door lock (FRONT DOOR LOCK)
82295-83E00-000	PROTECTOR,FR DOOR CYLINDER,R	Front door lock (FRONT DOOR LOCK)
82296-83E00-000	PROTECTOR,FR DOOR CYLINDER,L	Front door lock (FRONT DOOR LOCK)
82610-72B11-000	STRIKER COMPDOOR	Front door lock (FRONT DOOR LOCK)
82610-72B12-000	STRIKER,DOOR LATCH	Front door lock (FRONT DOOR LOCK)
82810-83E00-5PK	Handle assy, dr out rh - Black	Front door lock (FRONT DOOR LOCK)
82820-83E00-5PK	Handle assy, dr out lh - Black	Front door lock (FRONT DOOR LOCK)
82982-83E00-S1S	Knob, door inside lock - Gray	Front door lock (FRONT DOOR LOCK)
83101-83E00-S1S	Handle, door inside rh - Gray	Front door lock (FRONT DOOR LOCK)
83102-83E00-S1S	Handle, door inside lh - Gray	Front door lock (FRONT DOOR LOCK)
83211-76G00-000	PAD SIDE DOOR INSIDE LOCK	Front door lock (FRONT DOOR LOCK)
83271-60D00-000	CLIP	Front door lock (FRONT DOOR LOCK)
