RB413D

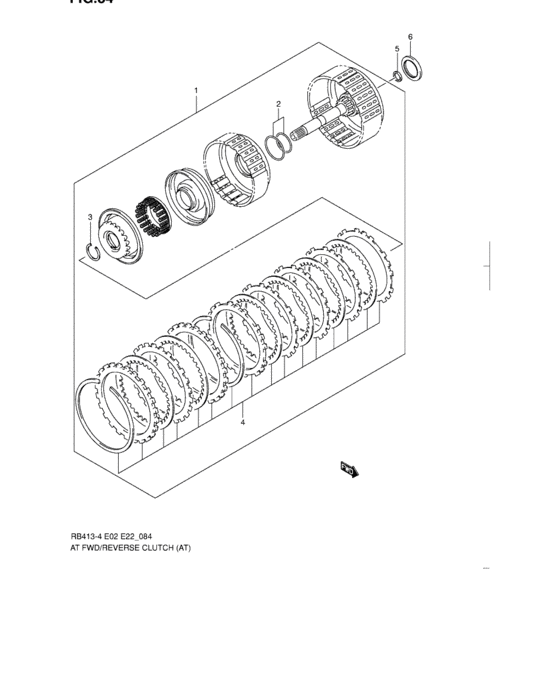

At fwd/reverse clutch (AT) 8
| # | OEM | Part name |
|---|---|---|
| 1 | 24200-68J10-000 | CLUTCH ASSY,FORWARD |
| 2 | 26614-79CT0-000 | O-ring set,forward clutch |
| 2 | 26614-77MT0-000 | O-RING SET,FORWARD CLUTCH |
| 3 | 26617-79C10-000 | RING,BALANCER SNAP |
| 4 | 26618-68JT0-000 | DISC SET,FWD&REV CLUTCH |
| 5 | 24271-79C10-000 | Ring,intermediate shaf |
| 5 | 24271-77M10-000 | RING,INTERMEDIATE SHAFT SEAL |
| 6 | 24975-79C10-000 | BEARING,REVERSE CL DRUM |
| OEM | Part name | Category |
|---|---|---|
| 24200-68J10-000 | CLUTCH ASSY,FORWARD | At fwd/reverse clutch (AT) |
| 24271-77M10-000 | RING,INTERMEDIATE SHAFT SEAL | At fwd/reverse clutch (AT) |
| 24271-79C10-000 | Ring,intermediate shaf | At fwd/reverse clutch (AT) |
| 24975-79C10-000 | BEARING,REVERSE CL DRUM | At fwd/reverse clutch (AT) |
| 26614-77MT0-000 | O-RING SET,FORWARD CLUTCH | At fwd/reverse clutch (AT) |
| 26614-79CT0-000 | O-ring set,forward clutch | At fwd/reverse clutch (AT) |
| 26617-79C10-000 | RING,BALANCER SNAP | At fwd/reverse clutch (AT) |
| 26618-68JT0-000 | DISC SET,FWD&REV CLUTCH | At fwd/reverse clutch (AT) |
