Search › Model › RB413
RB413

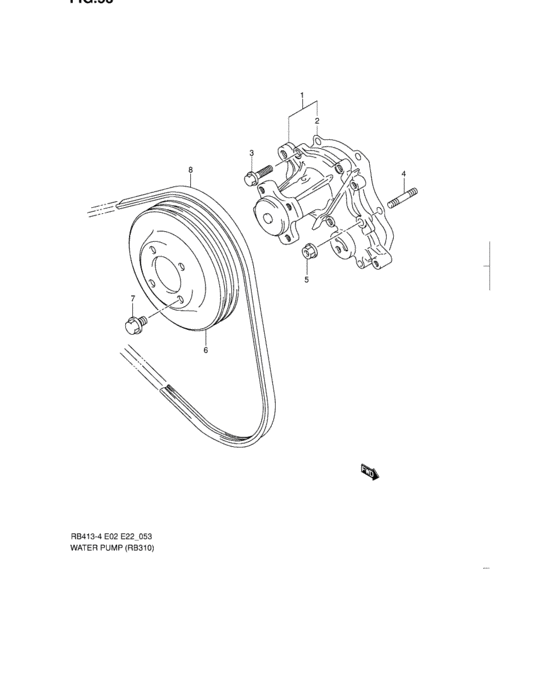

Water pump (RB310) 11
| # | OEM | Part name |
|---|---|---|
| 1 | 17400-82824-000 | PUMP SET,WATER |
| 1 | 17400-82825-000 | Pump Set,water |
| 2 | 17431-60A00-000 | GASKET,WATER PUMP |
| 3 | 09103-06066-000 | BOLT(6X23) - Bolt (6x23) |
| 4 | 01421-06203-000 | Stud bolt (l:20)(green) - Stud bolt (6x32) |
| 4 | 01421-0620A-000 | BOLT,STUD |
| 5 | 08316-10063-000 | Nut |
| 5 | 08316-1006B-000 | NUT |
| 6 | 17511-53B00-000 | PULLEY,WATER PUMP |
| 7 | 09103-06168-000 | BOLT(6X10) |
| 8 | 17521-83E00-000 | BELT,WATER PUMP 4PK815 |
| OEM | Part name | Category |
|---|---|---|
| 01421-06203-000 | Stud bolt (l:20)(green) - Stud bolt (6x32) | Water pump (RB310) |
| 01421-0620A-000 | BOLT,STUD | Water pump (RB310) |
| 08316-10063-000 | Nut | Water pump (RB310) |
| 08316-1006B-000 | NUT | Water pump (RB310) |
| 09103-06066-000 | BOLT(6X23) - Bolt (6x23) | Water pump (RB310) |
| 09103-06168-000 | BOLT(6X10) | Water pump (RB310) |
| 17400-82824-000 | PUMP SET,WATER | Water pump (RB310) |
| 17400-82825-000 | Pump Set,water | Water pump (RB310) |
| 17431-60A00-000 | GASKET,WATER PUMP | Water pump (RB310) |
| 17511-53B00-000 | PULLEY,WATER PUMP | Water pump (RB310) |
| 17521-83E00-000 | BELT,WATER PUMP 4PK815 | Water pump (RB310) |
