RB413

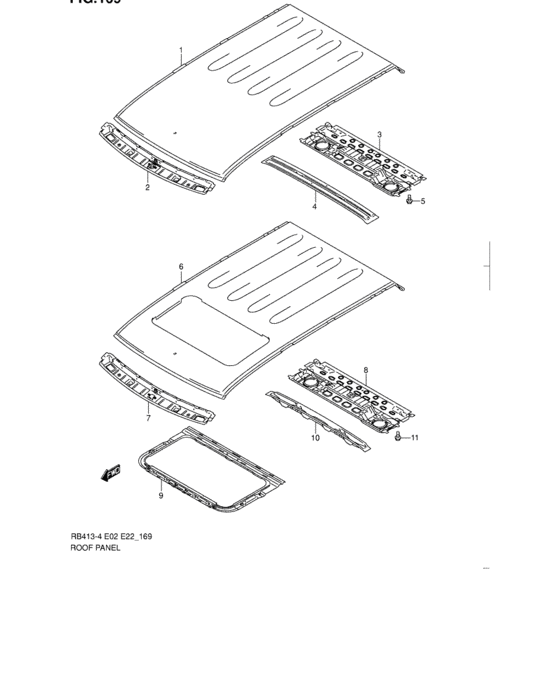

Roof panel (ROOF PANEL) 9
| # | OEM | Part name |
|---|---|---|
| 1 | 65111-84E00-000 | Panel, roof |
| 2 | 65120-83E00-000 | Member, roof front inner |
| 3 | 65130-84E00-000 | Member, roof back inner |
| 4 | 65151-83E00-000 | Member, roof center inner |
| 5 | 02162-06103-000 | Bolt - Bolt, bracket |
| 5 | 02162-0610A-000 | SCREW |
| 6 | 65111-84E10-000 | Panel, roof |
| 9 | 65140-83E00-000 | Reinf, sliding roof |
| 10 | 65161-83E10-000 | Member, sliding roof rr |
| OEM | Part name | Category |
|---|---|---|
| 02162-06103-000 | Bolt - Bolt, bracket | Roof panel (ROOF PANEL) |
| 02162-0610A-000 | SCREW | Roof panel (ROOF PANEL) |
| 65111-84E00-000 | Panel, roof | Roof panel (ROOF PANEL) |
| 65111-84E10-000 | Panel, roof | Roof panel (ROOF PANEL) |
| 65120-83E00-000 | Member, roof front inner | Roof panel (ROOF PANEL) |
| 65130-84E00-000 | Member, roof back inner | Roof panel (ROOF PANEL) |
| 65140-83E00-000 | Reinf, sliding roof | Roof panel (ROOF PANEL) |
| 65151-83E00-000 | Member, roof center inner | Roof panel (ROOF PANEL) |
| 65161-83E10-000 | Member, sliding roof rr | Roof panel (ROOF PANEL) |
