| 08316-10123-000 |
Nut |

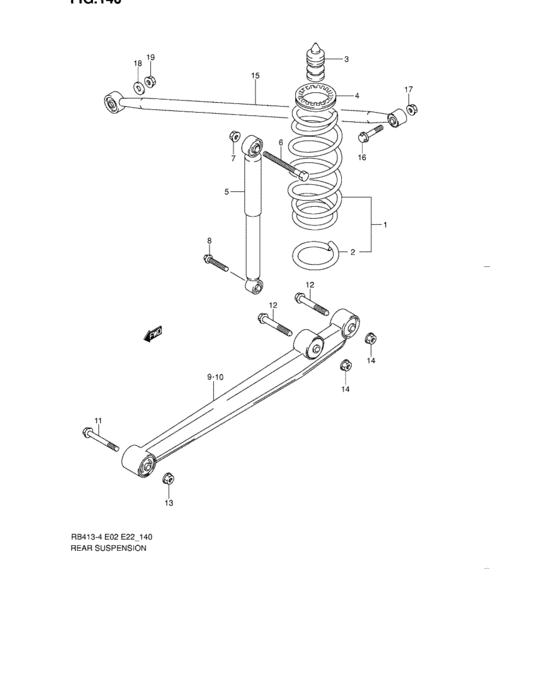

Rear suspension (REAR SUSPENSION) |
| 08316-1012A-000 |
NUT |
Rear suspension (REAR SUSPENSION) |
| 09103-12044-000 |
BOLT(12X87) |
Rear suspension (REAR SUSPENSION) |
| 09103-12051-000 |
BOLT(12X50) |
Rear suspension (REAR SUSPENSION) |
| 09103-12068-000 |
BOLT(12X80) |
Rear suspension (REAR SUSPENSION) |
| 09159-12025-000 |
NUT |
Rear suspension (REAR SUSPENSION) |
| 09164-12017-000 |
WASHER |
Rear suspension (REAR SUSPENSION) |
| 09502-12050-000 |
Bolt - 12x50 |
Rear suspension (REAR SUSPENSION) |
| 09511-12301-000 |
Nut |
Rear suspension (REAR SUSPENSION) |
| 41310-84E00-000 |
Spring, rear coil |
Rear suspension (REAR SUSPENSION) |
| 41310-84EA0-000 |
Spring, rear coil |
Rear suspension (REAR SUSPENSION) |
| 41341-79A00-000 |
SEAT,REAR SPRING UPPER |
Rear suspension (REAR SUSPENSION) |
| 41341-80G00-000 |
TUBE,REAR COIL SPRING |
Rear suspension (REAR SUSPENSION) |
| 41800-84E10-000 |
ABSORBER ASSY,RR SHOCK |
Rear suspension (REAR SUSPENSION) |
| 41800-85E00-000 |
Absorber assy, rear shock |
Rear suspension (REAR SUSPENSION) |
| 41981-60D00-000 |
BOLT,RR SHK ABSORBER UPR |
Rear suspension (REAR SUSPENSION) |
| 42251-84E00-000 |
Stopper, rear bump |
Rear suspension (REAR SUSPENSION) |
| 46201-86G00-000 |
Arm assy, rear trailing rh |
Rear suspension (REAR SUSPENSION) |
| 46202-86G00-000 |
Arm assy, rear trailing lh |
Rear suspension (REAR SUSPENSION) |
| 46300-83E10-000 |
Rod ssy, lateral |
Rear suspension (REAR SUSPENSION) |
| 46300-83EA0-000 |
ROD ASSY,LATERAL |
Rear suspension (REAR SUSPENSION) |
