RB413

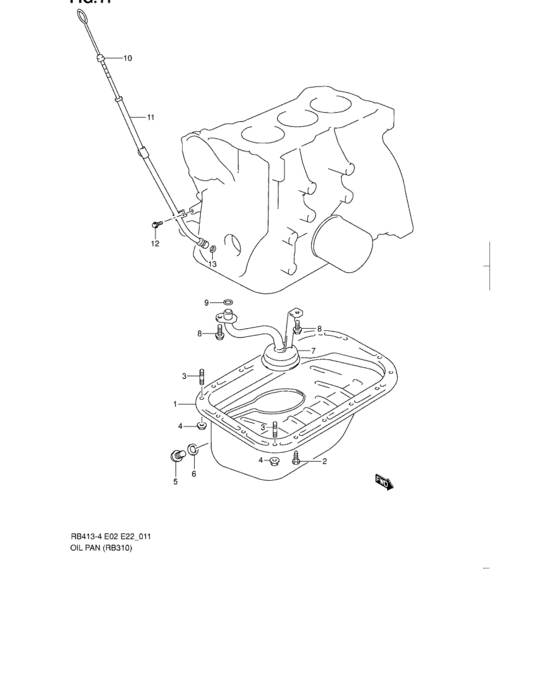

Oil pan (RB310) 16
| # | OEM | Part name |
|---|---|---|
| 1 | 11510-60B10-000 | PAN,OIL |
| 2 | 09117-06061-000 | BOLT(6X16) |
| 3 | 01411-06123-000 | Bolt, stud - Stud bolt |
| 3 | 01411-0612A-000 | BOLT,STUD |
| 4 | 09159-06077-000 | NUT |
| 5 | 09247-14027-000 | PLUG(14X11.5) - Plug, oil drain |
| 5 | 09247-14044-000 | DRAIN PLUG (M14x1.5) |
| 6 | 09168-14015-000 | GASKET(14X20X1.5) - Gasket, oil hose union |
| 7 | 16520-63B00-000 | STRAINER,OIL PUMP |
| 8 | 07120-06123-000 | Bolt - Bolt, breather pipe |
| 8 | 07120-0612B-000 | Bolt - Plug |
| 9 | 09280-14011-000 | O RING(D:2.5,ID:13.8) - O ring (d:2.5 id:13.8) |
| 10 | 16910-64B02-000 | GAUGE,OIL LEVEL |
| 11 | 16930-64B02-000 | GUIDE,OIL LEVEL GAUGE |
| 12 | 09103-06168-000 | BOLT(6X10) |
| 13 | 09280-10016-000 | O RING(D:1.9,ID:9.8) |
| OEM | Part name | Category |
|---|---|---|
| 01411-06123-000 | Bolt, stud - Stud bolt | Oil pan (RB310) |
| 01411-0612A-000 | BOLT,STUD | Oil pan (RB310) |
| 07120-06123-000 | Bolt - Bolt, breather pipe | Oil pan (RB310) |
| 07120-0612B-000 | Bolt - Plug | Oil pan (RB310) |
| 09103-06168-000 | BOLT(6X10) | Oil pan (RB310) |
| 09117-06061-000 | BOLT(6X16) | Oil pan (RB310) |
| 09159-06077-000 | NUT | Oil pan (RB310) |
| 09168-14015-000 | GASKET(14X20X1.5) - Gasket, oil hose union | Oil pan (RB310) |
| 09247-14027-000 | PLUG(14X11.5) - Plug, oil drain | Oil pan (RB310) |
| 09247-14044-000 | DRAIN PLUG (M14x1.5) | Oil pan (RB310) |
| 09280-10016-000 | O RING(D:1.9,ID:9.8) | Oil pan (RB310) |
| 09280-14011-000 | O RING(D:2.5,ID:13.8) - O ring (d:2.5 id:13.8) | Oil pan (RB310) |
| 11510-60B10-000 | PAN,OIL | Oil pan (RB310) |
| 16520-63B00-000 | STRAINER,OIL PUMP | Oil pan (RB310) |
| 16910-64B02-000 | GAUGE,OIL LEVEL | Oil pan (RB310) |
| 16930-64B02-000 | GUIDE,OIL LEVEL GAUGE | Oil pan (RB310) |
