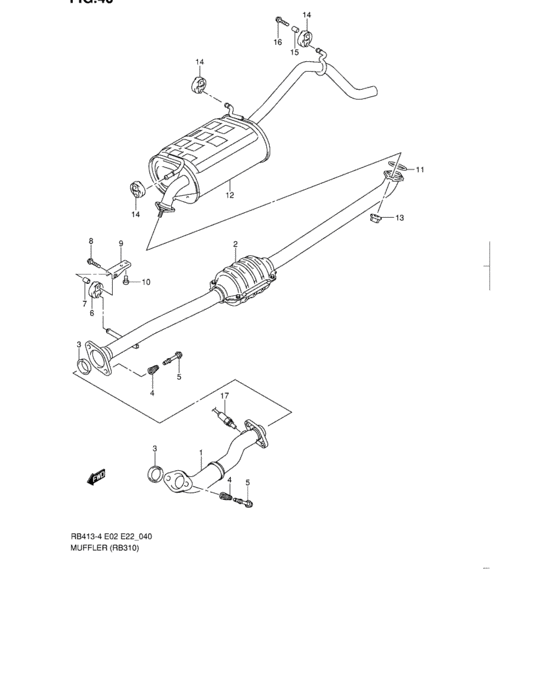

Muffler (RB310)
24
| # | OEM | Part name |
|---|
| 1 |
14190-83E70-000 |
Pipe, exhaust no.1 |
| 2 |
14250-83E70-000 |
Pipe, exhaust no.2 |
| 3 |
14183-76A00-000 |
RING,SEAL EXH PIPE |
| 4 |
14492-82610-000 |
SPRING,EXH PIPE |
| 5 |
09119-10073-000 |
BOLT(10X65) |
| 6 |
14281-83E00-000 |
Mounting |
| 7 |
09180-08057-000 |
Spacer |
| 7 |
09180-08227-000 |
SPACER(8.2X12.5X23.5) |
| 8 |
01550-08403-000 |
Bolt |
| 8 |
01550-0840B-000 |
Bolt |
| 8 |
01550-0840A-000 |
Bolt |
| 9 |
14283-83E10-000 |
Bracket, exh pipe |
| 10 |
02162-06123-000 |
Bolt (6x12) |
| 10 |
02162-0612B-000 |
SCREW - Bolt |
| 10 |
02162-0612A-000 |
SCREW - Bolt, bracket |
| 11 |
14182-60B00-000 |
GASKET,EXH PIPE |
| 11 |
14182-60B01-000 |
Gasket,exh Pipe |
| 12 |
14300-80G00-000 |
MUFFLER |
| 13 |
09159-10049-000 |
Nut |
| 13 |
09159-10102-000 |
NUT |
| 16 |
01550-08353-000 |
Bolt, rear |
| 16 |
01550-0835B-000 |
Bolt |
| 16 |
01550-0835A-000 |
Bolt |
| 17 |
18213-83E11-000 |
SENSOR ASSY,OXYGEN |
| OEM |
Part name |
Category |
| 01550-08353-000 |
Bolt, rear |
Muffler (RB310) |
| 01550-0835A-000 |
Bolt |
Muffler (RB310) |
| 01550-0835B-000 |
Bolt |
Muffler (RB310) |
| 01550-08403-000 |
Bolt |
Muffler (RB310) |
| 01550-0840A-000 |
Bolt |
Muffler (RB310) |
| 01550-0840B-000 |
Bolt |
Muffler (RB310) |
| 02162-06123-000 |
Bolt (6x12) |
Muffler (RB310) |
| 02162-0612A-000 |
SCREW - Bolt, bracket |
Muffler (RB310) |
| 02162-0612B-000 |
SCREW - Bolt |
Muffler (RB310) |
| 09119-10073-000 |
BOLT(10X65) |
Muffler (RB310) |
| 09159-10049-000 |
Nut |
Muffler (RB310) |
| 09159-10102-000 |
NUT |
Muffler (RB310) |
| 09180-08057-000 |
Spacer |
Muffler (RB310) |
| 09180-08227-000 |
SPACER(8.2X12.5X23.5) |
Muffler (RB310) |
| 14182-60B00-000 |
GASKET,EXH PIPE |
Muffler (RB310) |
| 14182-60B01-000 |
Gasket,exh Pipe |
Muffler (RB310) |
| 14183-76A00-000 |
RING,SEAL EXH PIPE |
Muffler (RB310) |
| 14190-83E70-000 |
Pipe, exhaust no.1 |
Muffler (RB310) |
| 14250-83E70-000 |
Pipe, exhaust no.2 |
Muffler (RB310) |
| 14281-83E00-000 |
Mounting |
Muffler (RB310) |
| 14283-83E10-000 |
Bracket, exh pipe |
Muffler (RB310) |
| 14300-80G00-000 |
MUFFLER |
Muffler (RB310) |
| 14492-82610-000 |
SPRING,EXH PIPE |
Muffler (RB310) |
| 18213-83E11-000 |
SENSOR ASSY,OXYGEN |
Muffler (RB310) |
