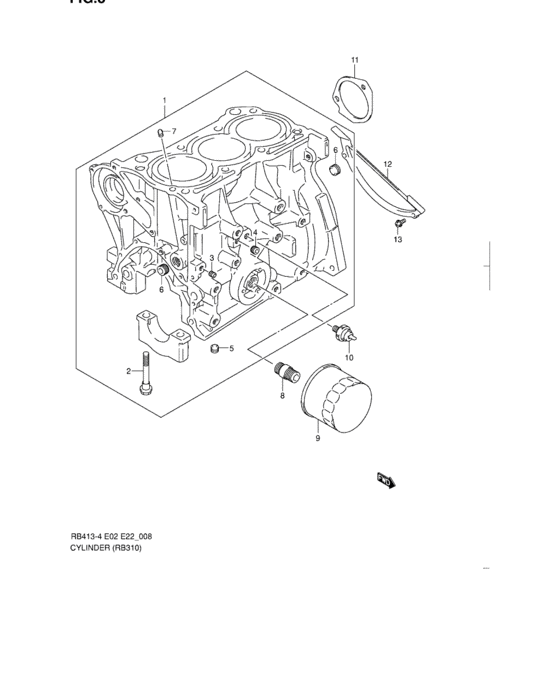

Cylinder (RB310)
18
| # | OEM | Part name |
|---|
| 1 |
11200-60B03-000 |
BLOCK ASSY,CYLINDER |
| 2 |
11260-50G01-000 |
BOLT,CRANK BEARING CAP |
| 3 |
09246-05006-000 |
PLUG(1/8PT,H:5.5) |
| 4 |
09246-06002-000 |
PLUG |
| 4 |
09246-08007-000 |
PLUG |
| 6 |
09246-08002-000 |
PLUG |
| 7 |
11215-60B00-000 |
VALVE,CHECK |
| 8 |
11241-86FA0-000 |
STAND,OIL FILTER |
| 9 |
16510-61A01-000 |
フィルタアッシ,オイル(TOKYO ROKI) |
| 9 |
16510-61A20-MHL |
Filter assy, oil |
| 9 |
16510-61A31-000 |
FILTER ASSY,OIL WAKO |
| 9 |
16510-61A21-000 |
FILTER ASSY,OIL MAHLE |
| 10 |
37820-82002-000 |
Switch assy,oil press |
| 10 |
37820-820P0-000 |
SWITCH ASSY,OIL PRESSURE |
| 11 |
11311-60B00-000 |
PLATE,STARTING MOTOR |
| 12 |
11320-83E01-000 |
PLATE,CLUTCH HSG LOWER |
| 13 |
02162-06103-000 |
Bolt - Bolt, bracket |
| 13 |
02162-0610A-000 |
SCREW |
| OEM |
Part name |
Category |
| 02162-06103-000 |
Bolt - Bolt, bracket |
Cylinder (RB310) |
| 02162-0610A-000 |
SCREW |
Cylinder (RB310) |
| 09246-05006-000 |
PLUG(1/8PT,H:5.5) |
Cylinder (RB310) |
| 09246-06002-000 |
PLUG |
Cylinder (RB310) |
| 09246-08002-000 |
PLUG |
Cylinder (RB310) |
| 09246-08007-000 |
PLUG |
Cylinder (RB310) |
| 11200-60B03-000 |
BLOCK ASSY,CYLINDER |
Cylinder (RB310) |
| 11215-60B00-000 |
VALVE,CHECK |
Cylinder (RB310) |
| 11241-86FA0-000 |
STAND,OIL FILTER |
Cylinder (RB310) |
| 11260-50G01-000 |
BOLT,CRANK BEARING CAP |
Cylinder (RB310) |
| 11311-60B00-000 |
PLATE,STARTING MOTOR |
Cylinder (RB310) |
| 11320-83E01-000 |
PLATE,CLUTCH HSG LOWER |
Cylinder (RB310) |
| 16510-61A01-000 |
フィルタアッシ,オイル(TOKYO ROKI) |
Cylinder (RB310) |
| 16510-61A20-MHL |
Filter assy, oil |
Cylinder (RB310) |
| 16510-61A21-000 |
FILTER ASSY,OIL MAHLE |
Cylinder (RB310) |
| 16510-61A31-000 |
FILTER ASSY,OIL WAKO |
Cylinder (RB310) |
| 37820-82002-000 |
Switch assy,oil press |
Cylinder (RB310) |
| 37820-820P0-000 |
SWITCH ASSY,OIL PRESSURE |
Cylinder (RB310) |
