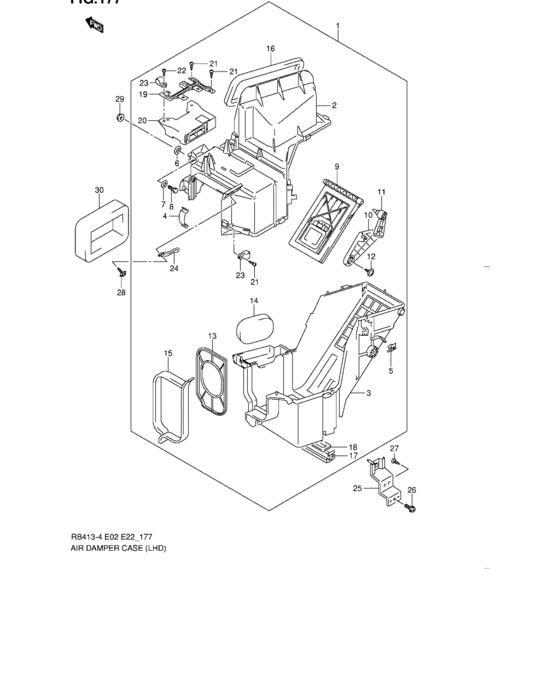

Air damper case (LHD)
40
| # | OEM | Part name |
|---|
| 1 |
74200-83E11-000 |
Box assy, air inlet |
| 1 |
74200-84EP0-000 |
Box assy, air inlet |
| 2 |
74211-83E10-000 |
Case, upper |
| 2 |
74211-84EP0-000 |
Case, upper |
| 3 |
74212-83E10-000 |
Case, lower |
| 3 |
74212-84EP0-000 |
Case, lower |
| 4 |
74133-83E00-000 |
Clamp |
| 5 |
74151-83E00-000 |
Clamp, Cable |
| 6 |
95466-83E00-000 |
Packing, stud bolt |
| 7 |
09160-06132-000 |
WASHER(6.5X18X1.6) |
| 7 |
09160-06084-000 |
WASHER(6.5X18X1.6) |
| 8 |
74114-83E00-000 |
Bolt |
| 9 |
74270-83E10-000 |
Door set, air inlet |
| 10 |
74281-83E10-000 |
Link, door |
| 11 |
74282-83E10-000 |
Lever, intake |
| 12 |
03211-15123-000 |
Screw |
| 13 |
95428-83E00-000 |
Baffle |
| 14 |
74221-83E00-000 |
Packing, dash blanking |
| 15 |
95461-83E00-000 |
Packing, heater |
| 16 |
95463-83E00-000 |
Packing, cooling unit |
| 17 |
95423-83E00-000 |
Cover, filter |
| 18 |
95464-83E00-000 |
Packing, filter |
| 19 |
95591-84EP0-000 |
Bracket, amplifier |
| 20 |
95510-84EP0-000 |
Amplifier box |
| 21 |
03211-05123-000 |
Screw |
| 21 |
03211-0512A-000 |
SCREW |
| 22 |
02112-05163-000 |
Screw |
| 22 |
02112-0516B-000 |
SCREW |
| 22 |
02112-0516A-000 |
SCREW |
| 23 |
95588-84EP0-000 |
Clip, harness |
| 24 |
95587-84EP0-000 |
Clip, harness |
| 25 |
74291-83E00-000 |
Bracket, air inlet box |
| 26 |
02162-06163-000 |
Screw - Bolt |
| 26 |
02162-0616B-000 |
SCREW - Bolt, adjust |
| 27 |
03542-06123-000 |
Screw |
| 27 |
03542-0612B-000 |
SCREW |
| 28 |
09136-06140-000 |
SCREW(6X25) |
| 29 |
08361-25063-000 |
Nut |
| 29 |
08361-2506A-000 |
NUT |
| 30 |
74222-84E00-000 |
Packing, dash |
| OEM |
Part name |
Category |
| 02112-05163-000 |
Screw |
Air damper case (LHD) |
| 02112-0516A-000 |
SCREW |
Air damper case (LHD) |
| 02112-0516B-000 |
SCREW |
Air damper case (LHD) |
| 02162-06163-000 |
Screw - Bolt |
Air damper case (LHD) |
| 02162-0616B-000 |
SCREW - Bolt, adjust |
Air damper case (LHD) |
| 03211-05123-000 |
Screw |
Air damper case (LHD) |
| 03211-0512A-000 |
SCREW |
Air damper case (LHD) |
| 03211-15123-000 |
Screw |
Air damper case (LHD) |
| 03542-06123-000 |
Screw |
Air damper case (LHD) |
| 03542-0612B-000 |
SCREW |
Air damper case (LHD) |
| 08361-25063-000 |
Nut |
Air damper case (LHD) |
| 08361-2506A-000 |
NUT |
Air damper case (LHD) |
| 09136-06140-000 |
SCREW(6X25) |
Air damper case (LHD) |
| 09160-06084-000 |
WASHER(6.5X18X1.6) |
Air damper case (LHD) |
| 09160-06132-000 |
WASHER(6.5X18X1.6) |
Air damper case (LHD) |
| 74114-83E00-000 |
Bolt |
Air damper case (LHD) |
| 74133-83E00-000 |
Clamp |
Air damper case (LHD) |
| 74151-83E00-000 |
Clamp, Cable |
Air damper case (LHD) |
| 74200-83E11-000 |
Box assy, air inlet |
Air damper case (LHD) |
| 74200-84EP0-000 |
Box assy, air inlet |
Air damper case (LHD) |
| 74211-83E10-000 |
Case, upper |
Air damper case (LHD) |
| 74211-84EP0-000 |
Case, upper |
Air damper case (LHD) |
| 74212-83E10-000 |
Case, lower |
Air damper case (LHD) |
| 74212-84EP0-000 |
Case, lower |
Air damper case (LHD) |
| 74221-83E00-000 |
Packing, dash blanking |
Air damper case (LHD) |
| 74222-84E00-000 |
Packing, dash |
Air damper case (LHD) |
| 74270-83E10-000 |
Door set, air inlet |
Air damper case (LHD) |
| 74281-83E10-000 |
Link, door |
Air damper case (LHD) |
| 74282-83E10-000 |
Lever, intake |
Air damper case (LHD) |
| 74291-83E00-000 |
Bracket, air inlet box |
Air damper case (LHD) |
| 95423-83E00-000 |
Cover, filter |
Air damper case (LHD) |
| 95428-83E00-000 |
Baffle |
Air damper case (LHD) |
| 95461-83E00-000 |
Packing, heater |
Air damper case (LHD) |
| 95463-83E00-000 |
Packing, cooling unit |
Air damper case (LHD) |
| 95464-83E00-000 |
Packing, filter |
Air damper case (LHD) |
| 95466-83E00-000 |
Packing, stud bolt |
Air damper case (LHD) |
| 95510-84EP0-000 |
Amplifier box |
Air damper case (LHD) |
| 95587-84EP0-000 |
Clip, harness |
Air damper case (LHD) |
| 95588-84EP0-000 |
Clip, harness |
Air damper case (LHD) |
| 95591-84EP0-000 |
Bracket, amplifier |
Air damper case (LHD) |
