RB413

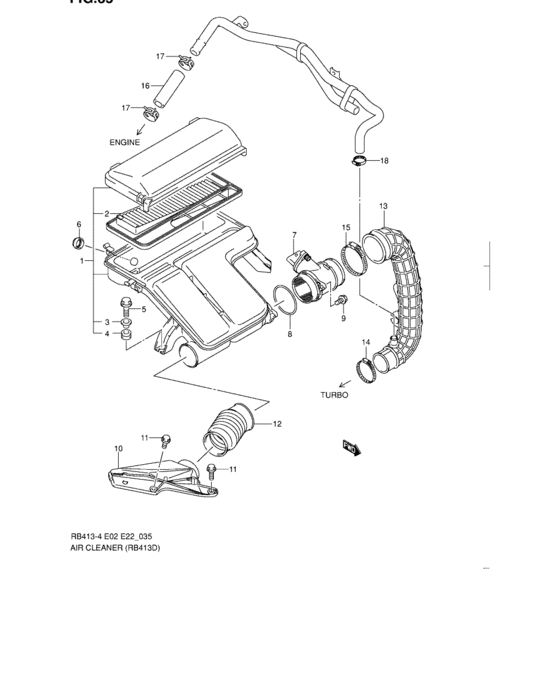

Air cleaner (RB413D) 22
| # | OEM | Part name |
|---|---|---|
| 1 | 13700-84E50-000 | Cleaner assy, air |
| 2 | 13780-84E50-000 | Element |
| 3 | 09169-09008-000 | WASHER |
| 4 | 09320-11017-000 | CUSHION |
| 5 | 01550-06253-000 | Bolt (6x25) |
| 5 | 01550-0625B-000 | Bolt - Bolt, head cover |
| 5 | 01550-0625A-000 | Bolt |
| 6 | 13723-84E50-000 | Grommet |
| 7 | 13800-84E50-000 | Sensor assy, maf |
| 8 | 13811-84E50-000 | O ring |
| 9 | 01550-06123-000 | Bolt |
| 9 | 01550-0612B-000 | Bolt - Bolt, clamp |
| 9 | 01550-0612A-000 | Bolt |
| 10 | 13765-84E50-000 | Pipe, air cleaner suction |
| 11 | 09122-86002-000 | SCREW(6X12) |
| 12 | 13766-84E50-000 | Hose, air suction |
| 13 | 13881-84E51-000 | Hose, air cleaner outlet |
| 14 | 09402-46511-000 | CLAMP |
| 15 | 09402-69511-000 | CLAMP - Clamp (thb) |
| 16 | 11191-84E50-000 | Hose, breather |
| 17 | 09401-22405-000 | CLIP |
| 18 | 09402-28511-000 | CLAMP |
| OEM | Part name | Category |
|---|---|---|
| 01550-06123-000 | Bolt | Air cleaner (RB413D) |
| 01550-0612A-000 | Bolt | Air cleaner (RB413D) |
| 01550-0612B-000 | Bolt - Bolt, clamp | Air cleaner (RB413D) |
| 01550-06253-000 | Bolt (6x25) | Air cleaner (RB413D) |
| 01550-0625A-000 | Bolt | Air cleaner (RB413D) |
| 01550-0625B-000 | Bolt - Bolt, head cover | Air cleaner (RB413D) |
| 09122-86002-000 | SCREW(6X12) | Air cleaner (RB413D) |
| 09169-09008-000 | WASHER | Air cleaner (RB413D) |
| 09320-11017-000 | CUSHION | Air cleaner (RB413D) |
| 09401-22405-000 | CLIP | Air cleaner (RB413D) |
| 09402-28511-000 | CLAMP | Air cleaner (RB413D) |
| 09402-46511-000 | CLAMP | Air cleaner (RB413D) |
| 09402-69511-000 | CLAMP - Clamp (thb) | Air cleaner (RB413D) |
| 11191-84E50-000 | Hose, breather | Air cleaner (RB413D) |
| 13700-84E50-000 | Cleaner assy, air | Air cleaner (RB413D) |
| 13723-84E50-000 | Grommet | Air cleaner (RB413D) |
| 13765-84E50-000 | Pipe, air cleaner suction | Air cleaner (RB413D) |
| 13766-84E50-000 | Hose, air suction | Air cleaner (RB413D) |
| 13780-84E50-000 | Element | Air cleaner (RB413D) |
| 13800-84E50-000 | Sensor assy, maf | Air cleaner (RB413D) |
| 13811-84E50-000 | O ring | Air cleaner (RB413D) |
| 13881-84E51-000 | Hose, air cleaner outlet | Air cleaner (RB413D) |
