RB310

Suzuki WAGON-R-PLUS-SOLIO-WIDE · 3,697 parts · 203 categories
RB310 ×

← Back to categories

3,697 items

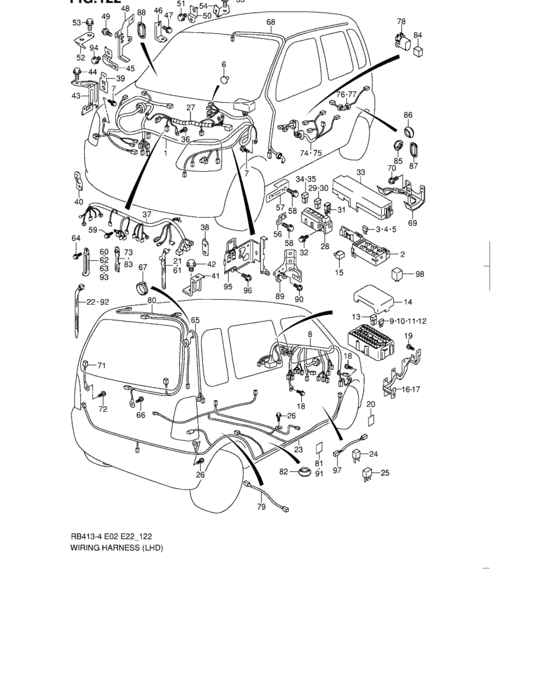

Wiring harness (LHD) 135
#OEMPart name
1 36601-85EC0-000 Harness assy, main
1 36610-85E70-000 Harness assy, main
1 36601-85EF0-000 Harness assy, main
1 36610-85E80-000 Harness assy, main
2 36736-83E00-000 Box, relay/fuse
3 09481-15501-000 FUSE(15A)
4 09481-20501-000 FUSE(20A)
5 09481-25501-000 FUSE(25A)
6 09250-07006-000 CAP(OD:15)
7 09115-06001-000 Bolt, lh - Bolt (6x16)
7 09115-06005-000 BOLT(6X16)
8 36620-85EH0-000 Harness assy, instrument panel
8 36602-85EH0-000 Harness assy, instrument panel
8 36902-85EH0-000 Harness assy, instrument panel
8 36620-85EJ0-000 Harness assy, instrument panel
8 36602-85EJ0-000 Harness assy, instrument panel
8 36902-85EJ0-000 Harness assy, instrument panel
8 36620-85E40-000 Harness assy, instrument panel
8 36602-85E40-000 Harness assy, instrument panel
8 36902-85E40-000 Harness assy, instrument panel
8 36620-85EE0-000 Harness assy, instrument panel
8 36602-85EE0-000 Harness assy, instrument panel
8 36902-85EE0-000 Harness assy, instrument panel
8 36920-85EB1-000 Harness assy, instrument panel
8 36920-85EB2-000 Harness assy, instrument panel
8 36920-85EH1-000 Harness assy, instrument panel
8 36920-85EH2-000 Harness assy, instrument panel
8 36920-85EC1-000 Harness assy, instrument panel
8 36920-85EC2-000 Harness assy, instrument panel
8 36920-85EJ1-000 Harness assy, instrument panel
8 36920-85EJ2-000 Harness assy, instrument panel
8 36920-85EE1-000 Harness assy, instrument panel
8 36920-85EE2-000 Harness assy, instrument panel
8 36920-85EL1-000 Harness assy, instrument panel
8 36920-85EL2-000 Harness assy, instrument panel
8 36920-85EF1-000 Harness assy, instrument panel
8 36920-85EF2-000 Harness assy, instrument panel
8 36920-85EM1-000 Harness assy, instrument panel
8 36920-85EM2-000 Harness assy, instrument panel
9 09481-10501-000 FUSE(10A)
13 09481-30401-000 FUSE(30A)
14 36717-84E00-000 Cover, fuse box
15 38860-76F01-000 RELAY ASSY - Relay, starting motor
16 36621-83E00-000 Bracket, harness connector rh
17 36621-83E10-000 Bracket, harness connector lh
20 36930-82010-000 COVER,HARNESS - Cover, roof wire
21 09407-12404-000 CLAMP(L:140)
22 09407-25401-000 CLAMP(L:235) - Clamp (l:235)
23 36630-84E30-000 Harness assy, floor
23 36630-84E71-000 Harness assy, floor
23 36630-84E40-000 Harness assy, floor
23 36630-84E81-000 Harness assy, floor
24 09705-02120-000 Diode
25 33459-61B10-000 DIODE
27 36650-84E00-000 Harness assy, engine
27 36650-85E20-000 Harness assy, engine
27 36650-85ER0-000 Harness assy, engine
27 36605-85ER0-000 Harness assy, engine
28 36740-83E00-000 Box assy, main fuse
29 09481-30203-000 FUSE(30A)
30 09481-60202-000 FUSE(60A)
31 09481-80301-000 FUSE(80A)
32 09138-06040-000 BOLT(6X10)
33 36738-83E01-000 Cover, fuse box
36 02162-06123-000 Bolt (6x12)
36 02162-0612B-000 SCREW - Bolt
36 02162-0612A-000 SCREW - Bolt, bracket
37 36670-84E00-000 Harness assy, injection
38 36651-51G00-000 BRACKET,ENG HARN
39 36651-60G10-000 BRACKET,ENG HARN
40 36655-73G51-000 BRACKET,NO.5 HARNESS
41 36651-85E00-000 Bracket, engine harness block
42 01550-10163-000 Bolt
42 01550-1016B-000 Bolt - Plug, oil gallery
42 01550-1016A-000 Bolt - Plug, oil gallery
43 36651-85E10-000 Bracket, engine harness
44 01550-08123-000 Bolt - Plug, oil gallery
44 01550-0812B-000 Bolt - Plug, drain
44 01550-0812A-000 Bolt
45 36652-86G00-000 Bracket, engine harness t/m
46 36653-76G00-000 BRACKET
47 01550-06123-000 Bolt
47 01550-0612B-000 Bolt - Bolt, clamp
47 01550-0612A-000 Bolt
48 36653-80G00-000 BRACKET,O2 CONN
50 36655-54G50-000 BRACKET,ENG HARN
52 36995-77E21-000 BRACKET,ENG HARN
54 36651-85EP0-000 Bracket, engine harness
56 36651-85ER0-000 Bracket, engine harness
57 36651-85EU0-000 Bracket, engine harness
60 09404-06433-000 CLAMP(L:80) - Clamp (l:80)
60 09404-06434-000 CLAMP(L:80 T:1.0)
60 09404-06436-000 Clamp(L:80)
60 09404-06036-000 Clamp(L:80)
61 09407-18402-000 CLAMP(L:165) - Clamp (l:165)
62 09404-08207-000 CLAMP(L:80)
62 09404-08212-000 Clamp
63 09404-10205-000 CLAMP(L:82) - Clamp, lead
65 36680-84E20-000 Harness assy, back door
65 36680-84E30-000 Harness assy, back door
66 09132-06023-000 SCREW(6X16)
67 09308-25002-000 GROMMET
68 36820-84E10-000 Wire, roof
69 36731-83E00-000 Bracket, relay box
71 36891-83E10-000 Wire, rear defogger ground
73 09407-05406-000 CLAMP(L:118)
74 36756-84EA0-000 Wire, door lh
74 36756-84E00-000 Wire, door lh
74 36756-84EC0-000 Wire, door lh
74 36756-84E20-000 Wire, door rh
74 36756-84EB0-000 Wire, door rh
75 36757-84EA0-000 Wire, door rh
75 36757-84E00-000 Wire, door rh
75 36757-84EC0-000 Wire, door rh
75 36757-84E20-000 Wire, door lh
75 36757-84EB0-000 Wire, door lh
76 36751-84E10-000 Wire, rear door lh
77 36751-84E30-000 Wire, rear door lh
78 36759-76G00-000 PROTECTOR,DOOR HARN
79 36840-84E11-000 Wire, fuel
80 36855-84E10-000 Wire, rear roof
82 09250-25007-000 CAP(OD:25.0)
84 78847-83E00-000 SILENCER,DASH SIDE
85 09250-20011-000 CAP
85 09250-20015-000 CAP(OD:28.5) - Cap, air con harness
87 36757-65D90-000 CAP,DR
88 09250-24005-000 CAP(OD:28.9)
89 36655-83E00-000 Bracket, harness
93 09404-06431-000 CLAMP(L:65) - Clamp, harness
93 09404-06432-000 CLAMP(L:65) - Clamp (l:80)
93 09404-06039-000 Clamp(L:65)
93 09404-06038-000 Clamp(L:65)
95 38856-85E00-000 Bracket, glow plug controller
97 36825-85E00-000 Wire, back up switch
98 38860-85EA0-000 Relay, ptc heater
