RB310

Suzuki WAGON-R-PLUS-SOLIO-WIDE · 3,697 parts · 203 categories
RB310 ×

← Back to categories

3,697 items

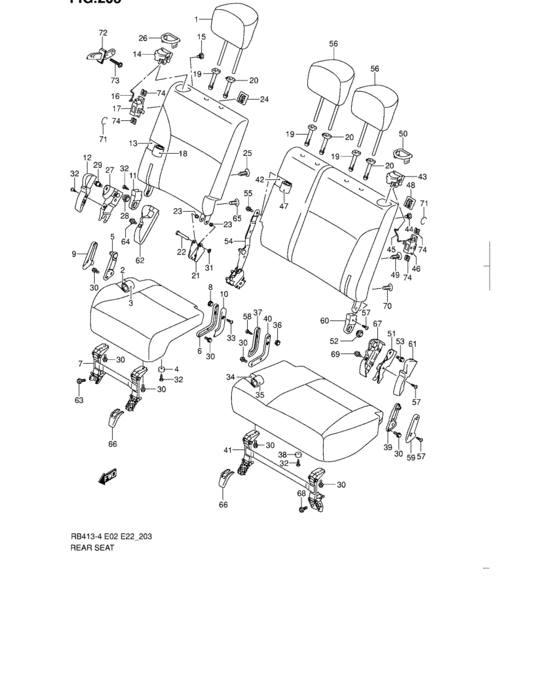

Rear seat (REAR SEAT) 83
#OEMPart name
1 86401-84E20-JH9 Headrestraint assy - Blue
1 86401-84E20-JU9 Headrestraint assy - Gray
1 86401-84E20-ML1 Headrestraint assy - Gray
2 87105-84E50-000 Cushion sub assy, rr rh
3 87180-84E00-APP Trim, rear cushion rh - Blue/gray
3 87180-84E00-APS Trim, rear cushion rh - Gray/gray
3 87180-84E00-APR Trim, rear cushion rh - Blue/gray
3 87180-84E00-APT Trim, rear cushion rh - Gray/gray
3 87180-84E00-ML1 Trim, rear cushion rh - Gray/gray
4 87122-83E00-000 Cushion, rear frame
5 87116-83E00-000 Stay, cushion outside rh
6 87117-84E00-000 Stay, cushion inside rh
7 87150-84E00-000 Leg assy, rear cushion rh
8 87121-83E00-000 Bush, stay
9 87171-83E00-S1S Cover, stay outside rh - Gray
10 87172-84E00-S1S Cover, stay inside rh - Gray
11 87221-84E00-S1S Cover, upper outside lh - Gray
12 87223-84E00-S1S Cover, lower outside rh - Gray
13 87305-84E10-000 Back sub assy, rr rh
13 87305-84E00-000 Back sub assy, rr rh
14 87211-84E00-S1S Knob, rear back knob - Gray
15 87489-84E00-000 Screw
16 87215-84E00-000 Rod
17 87480-84E00-000 Lock assy, rh
18 87380-84E10-APP Trim, rear back rh - Blue/gray
18 87380-84E10-APS Trim, rear back rh - Gray/gray
18 87380-84E00-APP Trim, rear back rh - Blue/gray
18 87380-84E00-APS Trim, rear back rh - Gray/gray
18 87380-84E00-APR Trim, rear back rh - Blue/gray
18 87380-84E00-APT Trim, rear back rh - Gray/gray
18 87380-84E00-ML1 Trim, rear back rh - Gray/gray
19 85341-83E00-S1S Guide - Gray
20 85840-83E00-S1S Guide - Gray
21 87231-83E00-000 Bracket, rr hinge lower
22 87331-83E00-000 Pin, rear hinge
23 87332-83E00-000 Bush, rear hinge
24 87485-84E00-000 Base, rear back lh
25 09409-05317-000 Clip
26 87212-84E00-S1S Base, lock knob
27 87320-84E00-000 Bracket, hinge lower rh
28 87334-84E00-000 Bush
29 87335-84E00-000 Bolt
30 86649-83E00-000 Bolt
31 09148-08002-000 NUT
32 03242-05103-000 Screw
32 03242-0510B-000 SCREW
32 03241-0510A-000 SCREW
34 87106-84E50-000 Cushion sub assy, rr lh
35 87680-84E00-APP Trim, rear cushion lh - Blue/gray
35 87680-84E00-APS Trim, rear cushion lh - Gray/gray
35 87680-84E00-APR Trim, rear cushion lh - Blue/gray
35 87680-84E00-APT Trim, rear cushion lh - Gray/gray
35 87680-84E00-ML1 Trim, rear cushion lh - Gray/gray
37 87672-84E00-S1S Cover, stay inside lh - Gray
39 87616-83E00-000 Stay, cushion outside lh
40 87617-84E00-000 Stay, cushion inside lh
41 87650-84E00-000 Leg assy, rr cushion lh
42 87306-84E10-000 Back sub assy, rr lh
42 87306-84E00-000 Back sub assy, rr lh
45 87715-84E00-000 Rod
46 87980-84E00-000 Lock assy, lh
47 87880-84E10-APP Trim, rear back rh - Blue/gray
47 87880-84E10-APS Trim, rear back rh - Gray/gray
47 87880-84E00-APP Trim, rear back lh - Blue/gray
47 87880-84E00-APS Trim, rear back lh - Gray/gray
47 87880-84E00-APR Trim, rear back lh - Blue/gray
47 87880-84E00-APT Trim, rear back lh - Gray/gray
47 87880-84E00-ML1 Trim, rear back lh - Gray/gray
51 87820-84E00-000 Bracket, hinge lower lh
54 87730-84E00-000 Hinge, inside lh
59 87671-83E00-S1S Cover, stay outside lh - Gray
61 87723-84E00-S1S Cover, lower outside lh - Gray
62 87224-84E00-S1S Cover, reclining inside rh - Gray
63 87421-83E00-000 Bolt, control arm
64 09409-06322-S1S CLIP(GRAY)
65 75139-80E00-S1S Clip
66 87491-76F00-S1S Cover, fr inside lh - Gray
67 87724-84E00-S1S Cover, reclining inside rh - Gray
70 09409-10302-S1S CLIP(GRAY)
71 85189-83E00-000 Ring, trimming
72 87470-84E00-000 Striker, rr back
73 09502-10025-000 Bolt
74 87488-84E00-000 Washer, rear seat back
