RB310

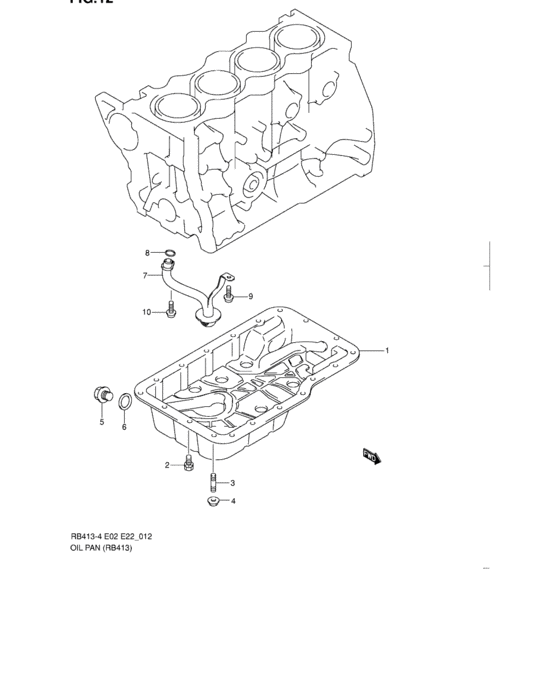

Oil pan (RB413) 15
| # | OEM | Part name |
|---|---|---|
| 1 | 11510-69G03-000 | PAN,OIL |
| 2 | 09117-06061-000 | BOLT(6X16) |
| 3 | 01411-06123-000 | Bolt, stud - Stud bolt |
| 3 | 01411-0612A-000 | BOLT,STUD |
| 4 | 09159-06077-000 | NUT |
| 5 | 09247-14027-000 | PLUG(14X11.5) - Plug, oil drain |
| 5 | 09247-14044-000 | DRAIN PLUG (M14x1.5) |
| 6 | 09168-14015-000 | GASKET(14X20X1.5) - Gasket, oil hose union |
| 7 | 16520-69G02-000 | STRAINEROIL PUMP |
| 7 | 16520-69G04-000 | STRAINER,OIL PUMP |
| 8 | 09280-17002-000 | O RING(D:2.4,ID:16.8) - O ring (d:2.4,id:16.8) |
| 9 | 07120-06123-000 | Bolt - Bolt, breather pipe |
| 9 | 07120-0612B-000 | Bolt - Plug |
| 10 | 07120-06163-000 | Bolt |
| 10 | 07120-0616B-000 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 01411-06123-000 | Bolt, stud - Stud bolt | Oil pan (RB413) |
| 01411-0612A-000 | BOLT,STUD | Oil pan (RB413) |
| 07120-06123-000 | Bolt - Bolt, breather pipe | Oil pan (RB413) |
| 07120-0612B-000 | Bolt - Plug | Oil pan (RB413) |
| 07120-06163-000 | Bolt | Oil pan (RB413) |
| 07120-0616B-000 | Bolt | Oil pan (RB413) |
| 09117-06061-000 | BOLT(6X16) | Oil pan (RB413) |
| 09159-06077-000 | NUT | Oil pan (RB413) |
| 09168-14015-000 | GASKET(14X20X1.5) - Gasket, oil hose union | Oil pan (RB413) |
| 09247-14027-000 | PLUG(14X11.5) - Plug, oil drain | Oil pan (RB413) |
| 09247-14044-000 | DRAIN PLUG (M14x1.5) | Oil pan (RB413) |
| 09280-17002-000 | O RING(D:2.4,ID:16.8) - O ring (d:2.4,id:16.8) | Oil pan (RB413) |
| 11510-69G03-000 | PAN,OIL | Oil pan (RB413) |
| 16520-69G02-000 | STRAINEROIL PUMP | Oil pan (RB413) |
| 16520-69G04-000 | STRAINER,OIL PUMP | Oil pan (RB413) |
