RB26

Toyota COASTER · 1984 · 5,599 parts · 205 categories

← Back to categories

5,599 items

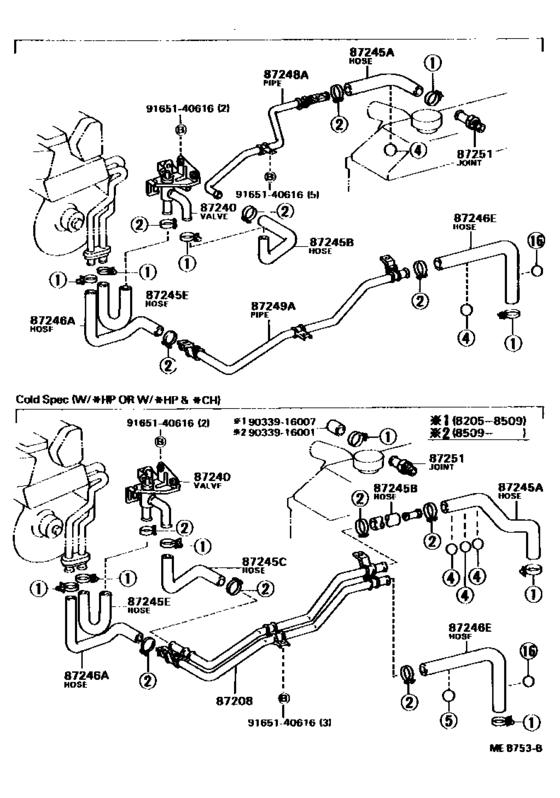

Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )RB2#) 18

#	OEM	Part name
87208	87208-90B05	Pipe Sub-Assy, Heater Water
87240	87240-90B00	Valve Assy, Heater Water
87245	87245-90B10	Hose, Heater Water, Inlet A
87245	99556-30700	Hose, Heater Water, Inlet A
87245	99556-31000	Hose, Heater Water, Inlet B
87245	87245-90B02	Hose, Heater Water, Inlet B
87245	87245-90B03	Hose, Heater Water, Inlet B
87245	87245-90B00	Hose, Heater Water, Inlet E
87246	87245-90B04	Hose, Heater Water ,inlet C
87246	99556-30500	Hose, Heater Water, Inlet A
87248	87208-90B07	Pipe, Heater Water Inlet, A
87249	87208-90B08	Pipe, Heater Water Outlet, A
87251	87251-14010	Joint Or Union, Front Heater Hose Through Or Inlet Valve
9033916001	90339-16001	Plug, Heater Water
9033916007	90339-16007	Plug
9165140616	91651-40616	BOLT
9165140616	91621-60614	Bolt(For Transaxle & Engine Setting)
9165140616	90080-11395	New Genuine Part

OEM	Part name	Category
87208-90B05	Pipe Sub-Assy, Heater Water	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )RB2#)
87208-90B07	Pipe, Heater Water Inlet, A	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )RB2#)
87208-90B08	Pipe, Heater Water Outlet, A	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )RB2#)
87240-90B00	Valve Assy, Heater Water	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )RB2#)
87245-90B00	Hose, Heater Water, Inlet E	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )RB2#)
87245-90B02	Hose, Heater Water, Inlet B	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )RB2#)
87245-90B03	Hose, Heater Water, Inlet B	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )RB2#)
87245-90B04	Hose, Heater Water ,inlet C	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )RB2#)
87245-90B10	Hose, Heater Water, Inlet A	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )RB2#)
87251-14010	Joint Or Union, Front Heater Hose Through Or Inlet Valve	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )RB2#)
90080-11395	New Genuine Part	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )RB2#)
90339-16001	Plug, Heater Water	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )RB2#)
90339-16007	Plug	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )RB2#)
91621-60614	Bolt(For Transaxle & Engine Setting)	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )RB2#)
91651-40616	BOLT	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )RB2#)
99556-30500	Hose, Heater Water, Inlet A	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )RB2#)
99556-30700	Hose, Heater Water, Inlet A	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )RB2#)
99556-31000	Hose, Heater Water, Inlet B	Heating & Air Conditioning - Water Piping ([05.1982 - ] (8205- )RB2#)
