RB20

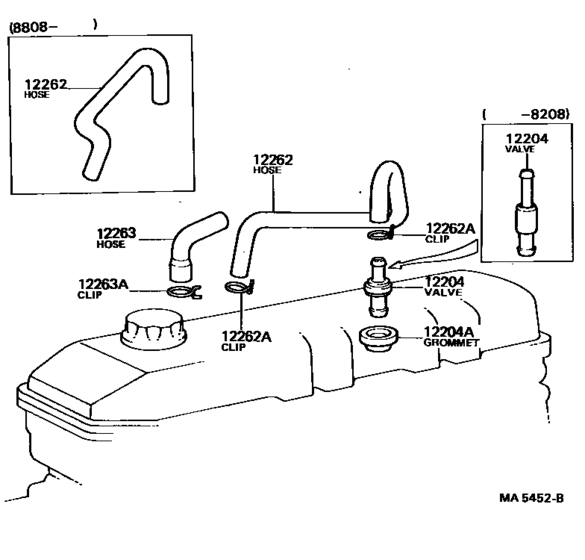

Ventilation Hose ([05.1982 - ] (8205- )22R) 7
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-35030 | Valve Sub-Assy, Ventilation |
| 12204 | 90480-18180 | Grommet(For Ventilation System) |
| 12262 | 12261-38011 | Hose, Ventilation, No.2 |
| 12262 | 12262-35020 | Hose, Ventilation, No.3 - VENTILATION, NO.2 |
| 12262 | 90467-15006 | Clip Or Clamp(For Ventilation Hose) |
| 12263 | 12262-35040 | Hose, Ventilation, No.3 |
| 12263 | 90467-19003 | Clip Or Clamp(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 12204-35030 | Valve Sub-Assy, Ventilation | Ventilation Hose ([05.1982 - ] (8205- )22R) |
| 12261-38011 | Hose, Ventilation, No.2 | Ventilation Hose ([05.1982 - ] (8205- )22R) |
| 12262-35020 | Hose, Ventilation, No.3 - VENTILATION, NO.2 | Ventilation Hose ([05.1982 - ] (8205- )22R) |
| 12262-35040 | Hose, Ventilation, No.3 | Ventilation Hose ([05.1982 - ] (8205- )22R) |
| 90467-15006 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([05.1982 - ] (8205- )22R) |
| 90467-19003 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([05.1982 - ] (8205- )22R) |
| 90480-18180 | Grommet(For Ventilation System) | Ventilation Hose ([05.1982 - ] (8205- )22R) |
