Search › Model › RB20
RB20

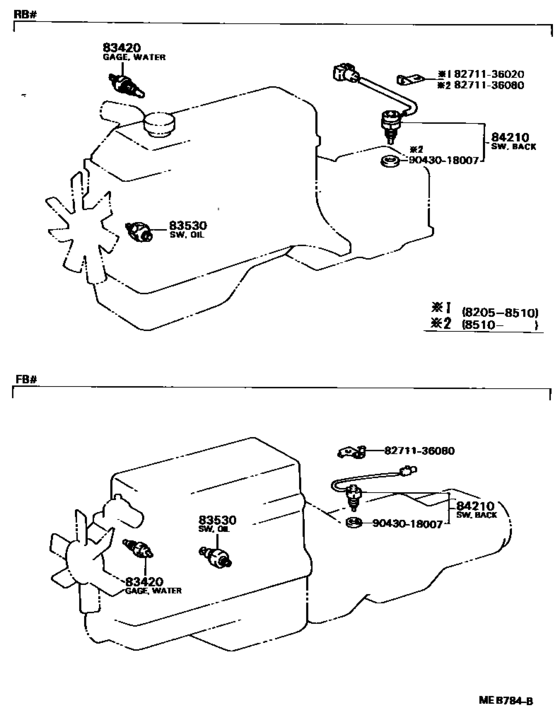

Switch & Relay & Computer ([05.1982 - ] (8205- )FB30,RB20) 9
| # | OEM | Part name |
|---|---|---|
| 83420 | 83420-20020 | Gage Assy, Water Temperature Sender |
| 83530 | 83530-14030 | Switch Assy, Oil Pressure (For Engine) |
| 83530 | 83530-28030 | Switch Assy, Oil Pressure (For Engine) |
| 84210 | 84210-36010 | Switch Assy, Back-Up Lamp |
| 84210 | 84210-60021 | Switch Assy, Back-Up Lamp |
| 8271136020 | 82711-36020 | Wire, Fuse To Fuse(for Combustion Heater) |
| 8271136080 | 82711-36080 | Wire, Fuse To Fuse(for Combustion Heater) |
| 9043018007 | 90430-18007 | Gasket(For Water Hole) |
| 9043018007 | 90430-18008 | Gasket |
| OEM | Part name | Category |
|---|---|---|
| 82711-36020 | Wire, Fuse To Fuse(for Combustion Heater) | Switch & Relay & Computer ([05.1982 - ] (8205- )FB30,RB20) |
| 82711-36080 | Wire, Fuse To Fuse(for Combustion Heater) | Switch & Relay & Computer ([05.1982 - ] (8205- )FB30,RB20) |
| 83420-20020 | Gage Assy, Water Temperature Sender | Switch & Relay & Computer ([05.1982 - ] (8205- )FB30,RB20) |
| 83530-14030 | Switch Assy, Oil Pressure (For Engine) | Switch & Relay & Computer ([05.1982 - ] (8205- )FB30,RB20) |
| 83530-28030 | Switch Assy, Oil Pressure (For Engine) | Switch & Relay & Computer ([05.1982 - ] (8205- )FB30,RB20) |
| 84210-36010 | Switch Assy, Back-Up Lamp | Switch & Relay & Computer ([05.1982 - ] (8205- )FB30,RB20) |
| 84210-60021 | Switch Assy, Back-Up Lamp | Switch & Relay & Computer ([05.1982 - ] (8205- )FB30,RB20) |
| 90430-18007 | Gasket(For Water Hole) | Switch & Relay & Computer ([05.1982 - ] (8205- )FB30,RB20) |
| 90430-18008 | Gasket | Switch & Relay & Computer ([05.1982 - ] (8205- )FB30,RB20) |
