RB20

Toyota COASTER · 1982 · 6,667 parts · 202 categories

6,667 items

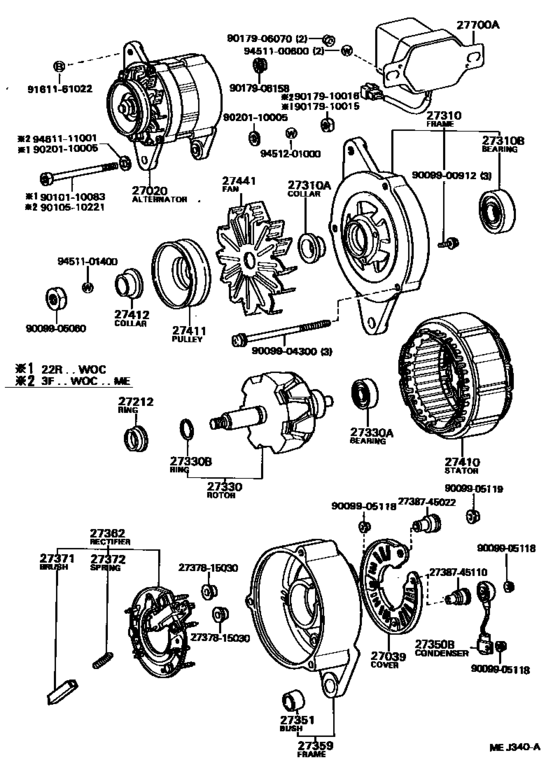

Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME) 51

#	OEM	Part name
27020	27020-38120	Alternator Assy
27020	27020-38121	Alternator Assy
27039	27039-18011	Cover, Alternator Rear End
27212	27212-39050	Ring, Space(For Alternator Rotor)
27212	27412-15150	Ring, Space(For Alternator Rotor)
27212	27412-45070	Ring, Space(For Alternator Rotor)
27310	27310-18010	Frame Assy, Drive End, Alternator
27310	27412-31040	Collar Or Nut(For Alternator Drive End Frame)
27310	90099-10125	Bearing(For Alternator Drive End Frame)
27310	90099-10126	Bearing(For Alternator Drive End Frame)
27330	27330-45020	Rotor Assy, Alternator
27330	90099-10111	Bearing(For Alternator Rotor)
27330	90099-10116	Bearing(For Alternator Rotor)
27330	90099-07048	Ring, Snap(For Alternator Rotor)
27350	90099-52065	Condenser, Alternator
27350	90099-52034	Condenser, Alternator
27351	27351-38051	Bush(For Alternator Rectifier End Frame)
27359	27359-13050	Frame, Alternator Rectifier End
27362	27362-18011	Rectifier Assy, W/brush
27371	27371-31011	Brush, Alternator
27372	27372-31011	Spring, Alternator Brush
27410	27410-38120	Stator Assy, Alternator
27411	27411-31042	Pulley, Alternator
27412	27412-44030	Ring, Space(For Alternator Rotor)
27412	27412-44031	Collar, Spacer(For Alternator Pulley)
27441	27441-34030	Fan, Alternator
27700	27700-35030	Regulator Assy, Generator
27700	27700-13040	Regulator Assy, Generator
2737815030	27378-15030	Insulator, Alternator, No.1
2738745022	27387-45022	Insulator, Terminal
2738745110	27387-45110	Insulator, Terminal
9009900912	90099-00912	New Genuine Part
9009904300	90099-04300	New Genuine Part
9009905060	90099-05060	Collar Or Nut(For Alternator Drive End Frame)
9009905118	90099-05118	New Genuine Part
9009905119	90099-05119	New Genuine Part
9010110083	90101-10083	BOLT
9010510221	90105-10221	Bolt, Hexagon(For Air Pump Bracket Setting)
9017906070	90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070	90179-06159	Nut, Rear Wiper Link Pivot, No.1
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9017910015	90179-10015	NUT
9017910016	90179-10016	Nut(For Counter Gear Shaft)
9017910016	90179-10132	Nut
9020110005	90201-10005	Washer, Plate(For Cylinder Head Set)
9161161022	91611-61022	Bolt (For Transmission Control Cable Bracket)
9161161022	91612-61022	Bolt (For Transmission Control Cable Bracket)
9451100600	94511-00600	Washer, Lock, No.2
9451101400	94511-01400	WASHER
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)
9461111001	94611-11001	Plate, Rear Seat Back Stopper

OEM	Part name	Category
27020-38120	Alternator Assy	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
27020-38121	Alternator Assy	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
27039-18011	Cover, Alternator Rear End	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
27212-39050	Ring, Space(For Alternator Rotor)	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
27310-18010	Frame Assy, Drive End, Alternator	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
27330-45020	Rotor Assy, Alternator	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
27351-38051	Bush(For Alternator Rectifier End Frame)	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
27359-13050	Frame, Alternator Rectifier End	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
27362-18011	Rectifier Assy, W/brush	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
27371-31011	Brush, Alternator	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
27372-31011	Spring, Alternator Brush	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
27378-15030	Insulator, Alternator, No.1	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
27387-45022	Insulator, Terminal	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
27387-45110	Insulator, Terminal	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
27410-38120	Stator Assy, Alternator	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
27411-31042	Pulley, Alternator	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
27412-15150	Ring, Space(For Alternator Rotor)	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
27412-31040	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
27412-44030	Ring, Space(For Alternator Rotor)	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
27412-44031	Collar, Spacer(For Alternator Pulley)	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
27412-45070	Ring, Space(For Alternator Rotor)	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
27441-34030	Fan, Alternator	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
27700-13040	Regulator Assy, Generator	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
27700-35030	Regulator Assy, Generator	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
90099-00912	New Genuine Part	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
90099-04300	New Genuine Part	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
90099-05060	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
90099-05118	New Genuine Part	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
90099-05119	New Genuine Part	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
90099-07048	Ring, Snap(For Alternator Rotor)	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
90099-10111	Bearing(For Alternator Rotor)	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
90099-10116	Bearing(For Alternator Rotor)	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
90099-10125	Bearing(For Alternator Drive End Frame)	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
90099-10126	Bearing(For Alternator Drive End Frame)	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
90099-52034	Condenser, Alternator	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
90099-52065	Condenser, Alternator	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
90101-10083	BOLT	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
90105-10221	Bolt, Hexagon(For Air Pump Bracket Setting)	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
90179-06159	Nut, Rear Wiper Link Pivot, No.1	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
90179-10015	NUT	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
90179-10016	Nut(For Counter Gear Shaft)	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
90179-10132	Nut	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
90201-10005	Washer, Plate(For Cylinder Head Set)	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
91611-61022	Bolt (For Transmission Control Cable Bracket)	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
91612-61022	Bolt (For Transmission Control Cable Bracket)	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
94511-00600	Washer, Lock, No.2	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
94511-01400	WASHER	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
94611-11001	Plate, Rear Seat Back Stopper	Alternator ([05.1982 - ] 12V 45A (8205- )22R..WOC ; (8610- )3F..WOC..ME)
