Search › Model › RB14
RB14

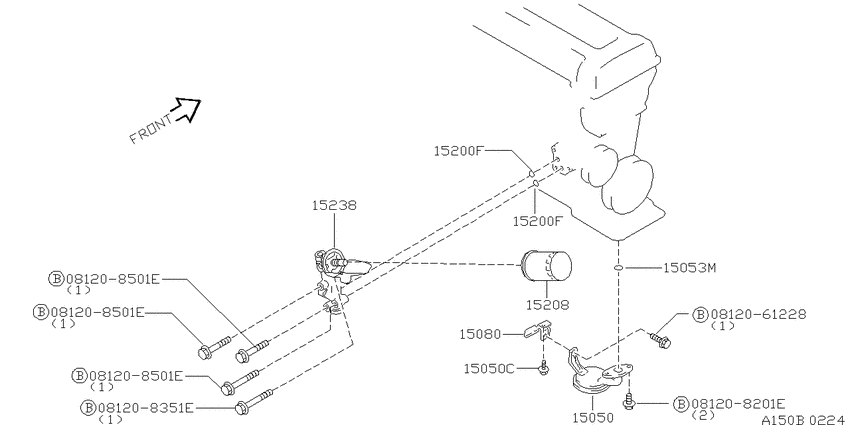

Lubricating system (1999-09-01 ~ ; SR18DE +SR20DE) 7
| # | OEM | Part name |
|---|---|---|
| 15050 | 15050-1E011 | STRAINER ASSY-OIL |
| 15050 | 01121-04781 | BOLT |
| 15080 | 15065-64J00 | Stay-Oil Strainer |
| 15200 | 15066-0M300 | Seal-O Ring |
| 15200 | 15066-5E500 | Seal-O Ring |
| 15238 | 15238-1N500 | Bracket-Oil Filter |
| 81208501 | 08120-8501E | Bolt-hexagon |
| OEM | Part name | Category |
|---|---|---|
| 01121-04781 | BOLT | Lubricating system (1999-09-01 ~ ; SR18DE +SR20DE) |
| 08120-8501E | Bolt-hexagon | Lubricating system (1999-09-01 ~ ; SR18DE +SR20DE) |
| 15050-1E011 | STRAINER ASSY-OIL | Lubricating system (1999-09-01 ~ ; SR18DE +SR20DE) |
| 15065-64J00 | Stay-Oil Strainer | Lubricating system (1999-09-01 ~ ; SR18DE +SR20DE) |
| 15066-0M300 | Seal-O Ring | Lubricating system (1999-09-01 ~ ; SR18DE +SR20DE) |
| 15066-5E500 | Seal-O Ring | Lubricating system (1999-09-01 ~ ; SR18DE +SR20DE) |
| 15238-1N500 | Bracket-Oil Filter | Lubricating system (1999-09-01 ~ ; SR18DE +SR20DE) |
