RB14

Nissan RASHEEN · 1994 · 4,421 parts · 700 categories

← Back to categories

4,421 items

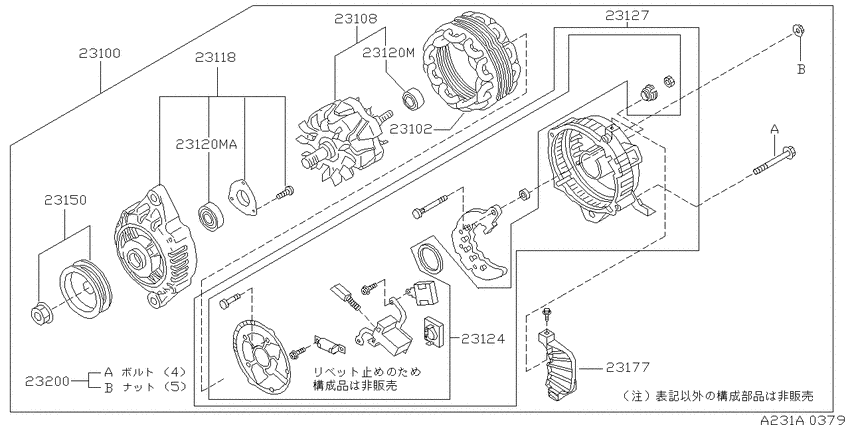

Alternator (1996-05-01 ~ 1997-01-01; 日立; GA15DE) 16

#	OEM	Part name
23100	23100-0M005	Alternator Assy
23100	23100-0M006	Alternator Assy
23102	23102-0M005	Stator Assy
23108	23108-0M000	Rotor Assy
23108	23108-4M40A	Rotor Assy
23118	23118-0M000	Cover Assy-Front
23120	23120-0M000	Bearing-Ball
23120	23120-0M005	Bearing-Ball
23124	23124-0M000	Rectifier Assy
23124	23124-0M001	Rectifier Assy
23124	23124-0M002	Rectifier Assy
23127	23127-0M005	Cover Assy-Rear
23127	23127-0M006	Cover Assy-Rear
23127	23127-0M007	Cover Assy-Rear
23150	23150-0M000	Pulley Assy
23200	23200-0M000	Screw Set

OEM	Part name	Category
23100-0M005	Alternator Assy	Alternator (1996-05-01 ~ 1997-01-01; 日立; GA15DE)
23100-0M006	Alternator Assy	Alternator (1996-05-01 ~ 1997-01-01; 日立; GA15DE)
23102-0M005	Stator Assy	Alternator (1996-05-01 ~ 1997-01-01; 日立; GA15DE)
23108-0M000	Rotor Assy	Alternator (1996-05-01 ~ 1997-01-01; 日立; GA15DE)
23108-4M40A	Rotor Assy	Alternator (1996-05-01 ~ 1997-01-01; 日立; GA15DE)
23118-0M000	Cover Assy-Front	Alternator (1996-05-01 ~ 1997-01-01; 日立; GA15DE)
23120-0M000	Bearing-Ball	Alternator (1996-05-01 ~ 1997-01-01; 日立; GA15DE)
23120-0M005	Bearing-Ball	Alternator (1996-05-01 ~ 1997-01-01; 日立; GA15DE)
23124-0M000	Rectifier Assy	Alternator (1996-05-01 ~ 1997-01-01; 日立; GA15DE)
23124-0M001	Rectifier Assy	Alternator (1996-05-01 ~ 1997-01-01; 日立; GA15DE)
23124-0M002	Rectifier Assy	Alternator (1996-05-01 ~ 1997-01-01; 日立; GA15DE)
23127-0M005	Cover Assy-Rear	Alternator (1996-05-01 ~ 1997-01-01; 日立; GA15DE)
23127-0M006	Cover Assy-Rear	Alternator (1996-05-01 ~ 1997-01-01; 日立; GA15DE)
23127-0M007	Cover Assy-Rear	Alternator (1996-05-01 ~ 1997-01-01; 日立; GA15DE)
23150-0M000	Pulley Assy	Alternator (1996-05-01 ~ 1997-01-01; 日立; GA15DE)
23200-0M000	Screw Set	Alternator (1996-05-01 ~ 1997-01-01; 日立; GA15DE)

Source: Public OEM parts-catalog data
Variants: 2 / 12
Category: 700
Collected: 2026-07-27
