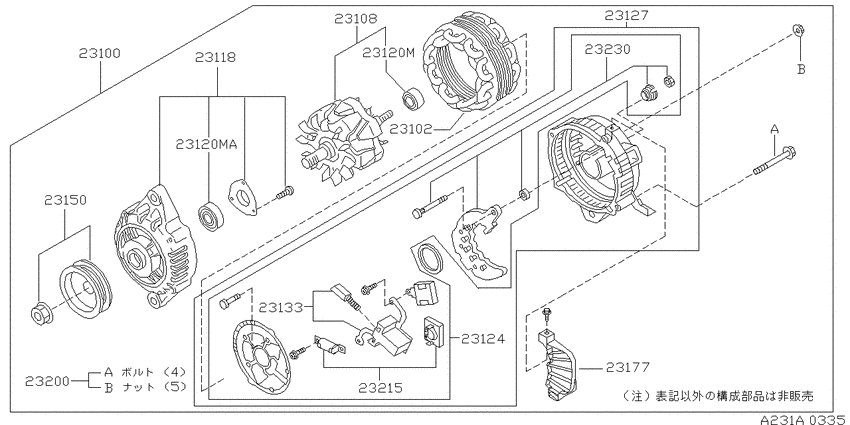

| 23100-0M005 |
Alternator Assy |
Alternator (1994-11-01 ~ 1996-05-01; 日立; GA15DE) |
| 23100-0M006 |
Alternator Assy |
Alternator (1994-11-01 ~ 1996-05-01; 日立; GA15DE) |
| 23102-0M005 |
Stator Assy |
Alternator (1994-11-01 ~ 1996-05-01; 日立; GA15DE) |
| 23108-0M000 |
Rotor Assy |
Alternator (1994-11-01 ~ 1996-05-01; 日立; GA15DE) |
| 23108-4M40A |
Rotor Assy |
Alternator (1994-11-01 ~ 1996-05-01; 日立; GA15DE) |
| 23118-0M000 |
Cover Assy-Front |
Alternator (1994-11-01 ~ 1996-05-01; 日立; GA15DE) |
| 23120-0M000 |
Bearing-Ball |
Alternator (1994-11-01 ~ 1996-05-01; 日立; GA15DE) |
| 23120-0M005 |
Bearing-Ball |
Alternator (1994-11-01 ~ 1996-05-01; 日立; GA15DE) |
| 23124-0M000 |
Rectifier Assy |
Alternator (1994-11-01 ~ 1996-05-01; 日立; GA15DE) |
| 23124-0M001 |
Rectifier Assy |
Alternator (1994-11-01 ~ 1996-05-01; 日立; GA15DE) |
| 23124-0M002 |
Rectifier Assy |
Alternator (1994-11-01 ~ 1996-05-01; 日立; GA15DE) |
| 23127-0M005 |
Cover Assy-Rear |
Alternator (1994-11-01 ~ 1996-05-01; 日立; GA15DE) |
| 23127-0M006 |
Cover Assy-Rear |
Alternator (1994-11-01 ~ 1996-05-01; 日立; GA15DE) |
| 23127-0M007 |
Cover Assy-Rear |
Alternator (1994-11-01 ~ 1996-05-01; 日立; GA15DE) |
| 23133-0M000 |
Holder Assy-Brush |
Alternator (1994-11-01 ~ 1996-05-01; 日立; GA15DE) |
| 23150-0M000 |
Pulley Assy |
Alternator (1994-11-01 ~ 1996-05-01; 日立; GA15DE) |
| 23200-0M000 |
Screw Set |
Alternator (1994-11-01 ~ 1996-05-01; 日立; GA15DE) |
| 23215-0M800 |
Regulator Assy-Ic |
Alternator (1994-11-01 ~ 1996-05-01; 日立; GA15DE) |
| 23230-0M000 |
Diode Assy |
Alternator (1994-11-01 ~ 1996-05-01; 日立; GA15DE) |
