Search › Model › RB12
RB12

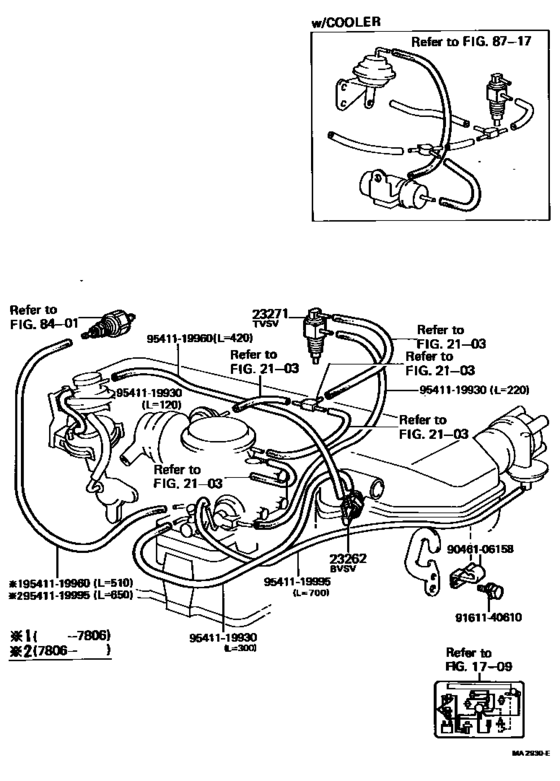

Vacuum Piping ([08.1977 - 08.1980] (7708-8008)20R) 11
| # | OEM | Part name |
|---|---|---|
| 23262 | 90925-05035 | Valve, Bimetal Vacuum Switching, No.1 |
| 23271 | 90925-02028 | Valve, Thermostatic Vacuum Switching, No.1 |
| 9046106158 | 90461-06158 | New Genuine Part |
| 9161140610 | 91611-40610 | Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
| 9161140610 | 91611-B0610 | Bolt (For Transfer Oil Receiver No.1) |
| 9541119930 | 95411-19930 | Hose(For Carburetor To Manifold) |
| 9541119930 | 90999-92002 | Air Hose (300 mm) |
| 9541119960 | 95411-19960 | Hose, Vacuum, No.2 (For Front Drive Shift) |
| 9541119960 | 90999-92003 | Hose, Breather (For Transfer Case) |
| 9541119995 | 95411-19995 | Hose, Vaccum |
| 9541119995 | 90999-92004 | Hose, Vacuum, No.1 (For Front Drive Shift) |
| OEM | Part name | Category |
|---|---|---|
| 90461-06158 | New Genuine Part | Vacuum Piping ([08.1977 - 08.1980] (7708-8008)20R) |
| 90925-02028 | Valve, Thermostatic Vacuum Switching, No.1 | Vacuum Piping ([08.1977 - 08.1980] (7708-8008)20R) |
| 90925-05035 | Valve, Bimetal Vacuum Switching, No.1 | Vacuum Piping ([08.1977 - 08.1980] (7708-8008)20R) |
| 90999-92002 | Air Hose (300 mm) | Vacuum Piping ([08.1977 - 08.1980] (7708-8008)20R) |
| 90999-92003 | Hose, Breather (For Transfer Case) | Vacuum Piping ([08.1977 - 08.1980] (7708-8008)20R) |
| 90999-92004 | Hose, Vacuum, No.1 (For Front Drive Shift) | Vacuum Piping ([08.1977 - 08.1980] (7708-8008)20R) |
| 91611-40610 | Bolt(For Dust Cover To Steering Knuckle Arm Setting) | Vacuum Piping ([08.1977 - 08.1980] (7708-8008)20R) |
| 91611-B0610 | Bolt (For Transfer Oil Receiver No.1) | Vacuum Piping ([08.1977 - 08.1980] (7708-8008)20R) |
| 95411-19930 | Hose(For Carburetor To Manifold) | Vacuum Piping ([08.1977 - 08.1980] (7708-8008)20R) |
| 95411-19960 | Hose, Vacuum, No.2 (For Front Drive Shift) | Vacuum Piping ([08.1977 - 08.1980] (7708-8008)20R) |
| 95411-19995 | Hose, Vaccum | Vacuum Piping ([08.1977 - 08.1980] (7708-8008)20R) |
