RB12

Toyota COASTER · 1979 · 3,479 parts · 136 categories

3,479 items

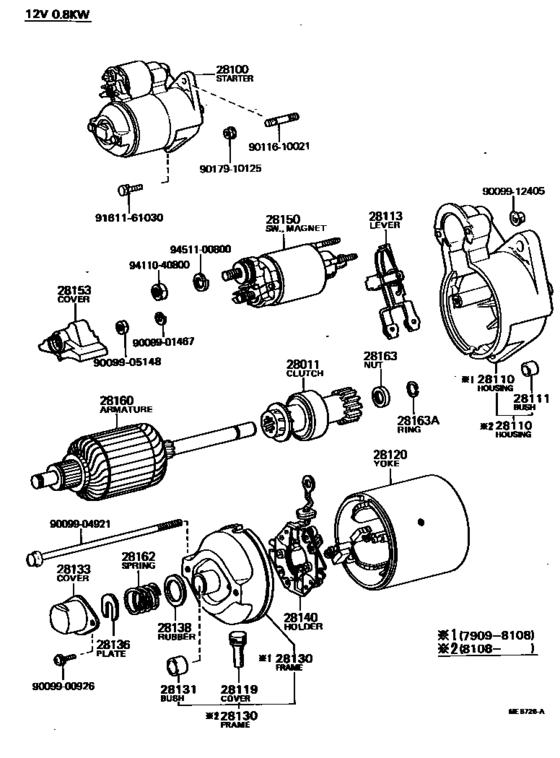

Starter ([09.1979 - ] (7909- )20R,22R) 53

#	OEM	Part name
28011	28011-15010	Clutch Sub-Assy, Starter
28011	28011-41020	Clutch Sub-Assy, Starter
28100	28100-34070	Starter Assy
28100	28100-35110	Starter Assy
28100	28100-37010	Starter Assy
28100	28100-37011	Starter Assy
28110	28110-37010	Housing Assy, Starter Drive
28110	28110-40061	Housing Assy, Starter Drive
28111	28111-51011	Bush(For Starter Housing)
28113	28113-15011	Lever, Starter Pinion Drive
28113	28113-41011	Lever, Starter Pinion Drive
28119	28199-77090	Cover, Starter End Frame
28120	28120-15010	Yoke Assy, Starter
28120	28120-34070	Yoke Assy, Starter
28130	28130-37010	Frame Assy, Starter Commutator End
28130	28130-41020	Frame Assy, Starter Commutator End
28131	28131-20010	Bush, Commutator End Frame
28131	90099-10039	Bush, Commutator End Frame
28131	90099-10040	Bush, Commutator End Frame
28133	28132-15010	Cover, Starter Bearing(For Drive Housing)
28133	28132-15011	Cover, Bearing(For End Frame)
28133	28132-40010	Cover, Bearing(For End Frame)
28136	28136-15010	Plate, Starter Lock
28136	28136-40010	Plate, Starter Lock
28138	28138-15010	Rubber(For Starter Bearing Cover)
28138	28138-40010	Rubber(For Starter Bearing Cover)
28138	28138-26030	Rubber(For Starter Bearing Cover)
28140	28140-15010	Holder Assy, Starter Brush
28140	28140-25020	Holder Assy, Starter Brush
28150	28150-15011	Switch Assy, Magnet Starter
28150	28150-37011	Switch Assy, Magnet Starter
28150	28150-15012	Switch Assy, Magnet Starter
28150	28150-34070	Switch Assy, Magnet Starter
28153	28159-15010	Cover, Magnet Switch
28160	28160-15010	Armature Assy, Starter
28160	28160-41020	Armature Assy, Starter
28162	28162-15010	Spring, Starter Brake
28162	28162-41022	Spring, Starter Brake
28163	28163-40011	Nut Or Collar, Pinion Stop, Starter
28163	90099-07047	Ring, Snap(For Starter Pinion Stop Nut)
9009900926	90099-00926	New Genuine Part
9009901467	90099-01467	New Genuine Part
9009904921	90099-04921	New Genuine Part
9009905148	90099-05148	New Genuine Part
9009912405	90099-12405	New Genuine Part
9011610021	90116-10021	Bolt, Stud(For Manifold To Cylinder Head)
9017910125	90179-10125	Nut(For Counter Gear Shaft)
9017910125	90179-10132	Nut
9161161030	91611-61030	Bolt (For Transmission Control Cable Bracket)
9161161030	91612-61030	Bolt (For Transmission Control Cable Bracket)
9411040800	94110-40800	Nut(For Steering Damper)
9411040800	94130-00802	Nut, No.1 (For Center Support Bearing)
9451100800	94511-00800	WASHERSPRING

OEM	Part name	Category
28011-15010	Clutch Sub-Assy, Starter	Starter ([09.1979 - ] (7909- )20R,22R)
28011-41020	Clutch Sub-Assy, Starter	Starter ([09.1979 - ] (7909- )20R,22R)
28100-34070	Starter Assy	Starter ([09.1979 - ] (7909- )20R,22R)
28100-35110	Starter Assy	Starter ([09.1979 - ] (7909- )20R,22R)
28100-37010	Starter Assy	Starter ([09.1979 - ] (7909- )20R,22R)
28100-37011	Starter Assy	Starter ([09.1979 - ] (7909- )20R,22R)
28110-37010	Housing Assy, Starter Drive	Starter ([09.1979 - ] (7909- )20R,22R)
28110-40061	Housing Assy, Starter Drive	Starter ([09.1979 - ] (7909- )20R,22R)
28111-51011	Bush(For Starter Housing)	Starter ([09.1979 - ] (7909- )20R,22R)
28113-15011	Lever, Starter Pinion Drive	Starter ([09.1979 - ] (7909- )20R,22R)
28113-41011	Lever, Starter Pinion Drive	Starter ([09.1979 - ] (7909- )20R,22R)
28120-15010	Yoke Assy, Starter	Starter ([09.1979 - ] (7909- )20R,22R)
28120-34070	Yoke Assy, Starter	Starter ([09.1979 - ] (7909- )20R,22R)
28130-37010	Frame Assy, Starter Commutator End	Starter ([09.1979 - ] (7909- )20R,22R)
28130-41020	Frame Assy, Starter Commutator End	Starter ([09.1979 - ] (7909- )20R,22R)
28131-20010	Bush, Commutator End Frame	Starter ([09.1979 - ] (7909- )20R,22R)
28132-15010	Cover, Starter Bearing(For Drive Housing)	Starter ([09.1979 - ] (7909- )20R,22R)
28132-15011	Cover, Bearing(For End Frame)	Starter ([09.1979 - ] (7909- )20R,22R)
28132-40010	Cover, Bearing(For End Frame)	Starter ([09.1979 - ] (7909- )20R,22R)
28136-15010	Plate, Starter Lock	Starter ([09.1979 - ] (7909- )20R,22R)
28136-40010	Plate, Starter Lock	Starter ([09.1979 - ] (7909- )20R,22R)
28138-15010	Rubber(For Starter Bearing Cover)	Starter ([09.1979 - ] (7909- )20R,22R)
28138-26030	Rubber(For Starter Bearing Cover)	Starter ([09.1979 - ] (7909- )20R,22R)
28138-40010	Rubber(For Starter Bearing Cover)	Starter ([09.1979 - ] (7909- )20R,22R)
28140-15010	Holder Assy, Starter Brush	Starter ([09.1979 - ] (7909- )20R,22R)
28140-25020	Holder Assy, Starter Brush	Starter ([09.1979 - ] (7909- )20R,22R)
28150-15011	Switch Assy, Magnet Starter	Starter ([09.1979 - ] (7909- )20R,22R)
28150-15012	Switch Assy, Magnet Starter	Starter ([09.1979 - ] (7909- )20R,22R)
28150-34070	Switch Assy, Magnet Starter	Starter ([09.1979 - ] (7909- )20R,22R)
28150-37011	Switch Assy, Magnet Starter	Starter ([09.1979 - ] (7909- )20R,22R)
28159-15010	Cover, Magnet Switch	Starter ([09.1979 - ] (7909- )20R,22R)
28160-15010	Armature Assy, Starter	Starter ([09.1979 - ] (7909- )20R,22R)
28160-41020	Armature Assy, Starter	Starter ([09.1979 - ] (7909- )20R,22R)
28162-15010	Spring, Starter Brake	Starter ([09.1979 - ] (7909- )20R,22R)
28162-41022	Spring, Starter Brake	Starter ([09.1979 - ] (7909- )20R,22R)
28163-40011	Nut Or Collar, Pinion Stop, Starter	Starter ([09.1979 - ] (7909- )20R,22R)
28199-77090	Cover, Starter End Frame	Starter ([09.1979 - ] (7909- )20R,22R)
90099-00926	New Genuine Part	Starter ([09.1979 - ] (7909- )20R,22R)
90099-01467	New Genuine Part	Starter ([09.1979 - ] (7909- )20R,22R)
90099-04921	New Genuine Part	Starter ([09.1979 - ] (7909- )20R,22R)
90099-05148	New Genuine Part	Starter ([09.1979 - ] (7909- )20R,22R)
90099-07047	Ring, Snap(For Starter Pinion Stop Nut)	Starter ([09.1979 - ] (7909- )20R,22R)
90099-10039	Bush, Commutator End Frame	Starter ([09.1979 - ] (7909- )20R,22R)
90099-10040	Bush, Commutator End Frame	Starter ([09.1979 - ] (7909- )20R,22R)
90099-12405	New Genuine Part	Starter ([09.1979 - ] (7909- )20R,22R)
90116-10021	Bolt, Stud(For Manifold To Cylinder Head)	Starter ([09.1979 - ] (7909- )20R,22R)
90179-10125	Nut(For Counter Gear Shaft)	Starter ([09.1979 - ] (7909- )20R,22R)
90179-10132	Nut	Starter ([09.1979 - ] (7909- )20R,22R)
91611-61030	Bolt (For Transmission Control Cable Bracket)	Starter ([09.1979 - ] (7909- )20R,22R)
91612-61030	Bolt (For Transmission Control Cable Bracket)	Starter ([09.1979 - ] (7909- )20R,22R)
94110-40800	Nut(For Steering Damper)	Starter ([09.1979 - ] (7909- )20R,22R)
94130-00802	Nut, No.1 (For Center Support Bearing)	Starter ([09.1979 - ] (7909- )20R,22R)
94511-00800	WASHERSPRING	Starter ([09.1979 - ] (7909- )20R,22R)
