Search › Model › RB12
RB12

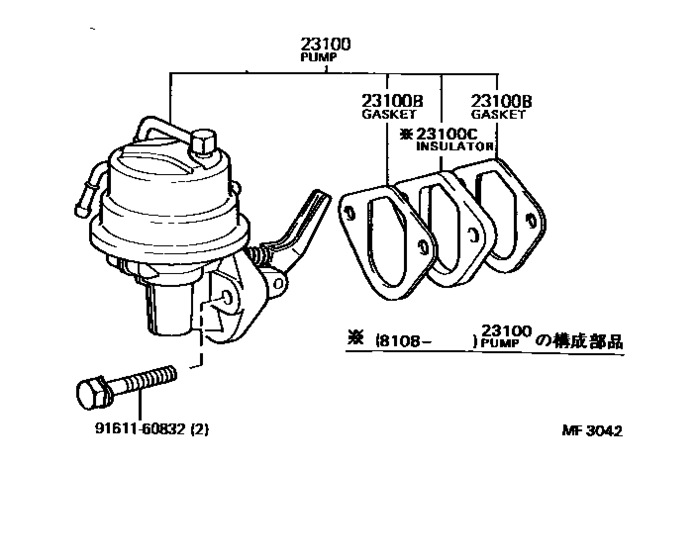

Fuel Pump & Pipe ([11.1979 - ] (7911- )20R,22R) 7
| # | OEM | Part name |
|---|---|---|
| 23100 | 23100-39315 | Pump Assy, Fuel |
| 23100 | 23100-38071 | Pump Assy, Fuel |
| 23100 | 90923-05005 | Gasket, Cylinder Block Side Cover, No.2 |
| 23100 | 90923-05019 | Gasket, Fuel Pump |
| 23100 | 90923-06001 | Insulator, Fuel Pump |
| 23100 | 90923-06009 | Insulator, Fuel Pump |
| 9161160832 | 91611-60832 | Bolt Or Ring, Exhaust Pipe Front (For Front) |
| OEM | Part name | Category |
|---|---|---|
| 23100-38071 | Pump Assy, Fuel | Fuel Pump & Pipe ([11.1979 - ] (7911- )20R,22R) |
| 23100-39315 | Pump Assy, Fuel | Fuel Pump & Pipe ([11.1979 - ] (7911- )20R,22R) |
| 90923-05005 | Gasket, Cylinder Block Side Cover, No.2 | Fuel Pump & Pipe ([11.1979 - ] (7911- )20R,22R) |
| 90923-05019 | Gasket, Fuel Pump | Fuel Pump & Pipe ([11.1979 - ] (7911- )20R,22R) |
| 90923-06001 | Insulator, Fuel Pump | Fuel Pump & Pipe ([11.1979 - ] (7911- )20R,22R) |
| 90923-06009 | Insulator, Fuel Pump | Fuel Pump & Pipe ([11.1979 - ] (7911- )20R,22R) |
| 91611-60832 | Bolt Or Ring, Exhaust Pipe Front (For Front) | Fuel Pump & Pipe ([11.1979 - ] (7911- )20R,22R) |
