Search › Model › RB12

RB12

Toyota COASTER · 1979 · 3,479 parts · 136 categories

3,479 items

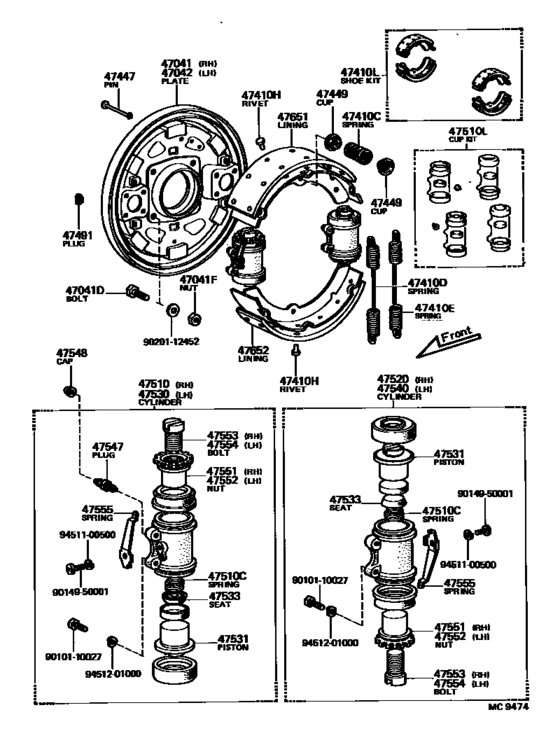

Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- )) 42

#	OEM	Part name
47041	47041-36060	Plate Sub-Assy, Brake Backing, Front Rh
47041	90101-12021	Bolt(For Backing Plate To Steering Knuckle Setting)
47041	90101-12175	Bolt(For Backing Plate To Rear Axle Housing Setting)
47041	94115-71200	Nut(For Backing Plate To Steering Knuckle Setting)
47042	47042-36030	Plate Sub-Assy, Brake Backing, Front Lh
47410	90501-20012	Spring(For Front Brake Shoe Hold Down)
47410	90506-29216	Spring, Tension(For Front Brake Shoe Return)
47410	90507-29006	Spring, Tension(For Front Brake Shoe Return)
47410	90266-05005	Rivet, Brake Lining(For Front Brake)
47410	04494-36050	Shoe Kit, Front Brake
47410	04494-36051	Shoe Kit, Front Brake
47410	04496-36050	Shoe Kit, Front Brake
47447	47447-36020	Pin, Shoe Hold Down Spring(For Front Brake)
47449	47449-30020	Cup, Shoe Hold Down Spring(For Front Brake)
47491	47491-36010	Plug, Hole(For Front Brake)
47491	47491-36020	Plug, Hole(For Rear Brake)
47510	47510-39135	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)
47510	47510-36060	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)
47510	90501-10759	Spring, Compression(For Front Wheel Brake Cylinder)
47510	04905-36041	Cup Kit, Front Wheel Cylinder
47520	47520-39105	Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)
47520	47520-36060	Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)
47530	47530-39135	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)
47530	47530-36060	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)
47531	47531-36032	Piston, Wheel Brake Cylinder(For Front Brake)
47533	47533-25010	Seat, Wheel Cylinder Piston Spring(For Front Brake)
47540	47540-39105	Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)
47540	47540-36060	Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)
47547	47547-12010	Plug, Bleeder(For Release Cylinder)
47548	31478-30010	Bleeder Plug Cap
47551	47551-36012	Nut, Rear Wheel Cylinder Adjusting, Rh(For Rear Brake)
47552	47552-36012	Nut, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47553	47553-36030	Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)
47554	47554-36030	Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47555	47555-36020	Spring, Adjuster Lock(For Front Brake)
47651	47651-36060	Lining, Front Brake Shoe(For Front Or Upper)
47651	47651-36190	Lining, Front Brake Shoe(For Front Or Upper)
9010110027	90101-10027	New Genuine Part
9014950001	90149-50001	New Genuine Part
9020112452	90201-12452	Nut(For Backing Plate To Steering Knuckle Setting)
9451100500	94511-00500	Washer, Cover Set, No.2
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
04494-36050	Shoe Kit, Front Brake	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
04494-36051	Shoe Kit, Front Brake	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
04496-36050	Shoe Kit, Front Brake	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
04905-36041	Cup Kit, Front Wheel Cylinder	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
31478-30010	Bleeder Plug Cap	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
47041-36060	Plate Sub-Assy, Brake Backing, Front Rh	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
47042-36030	Plate Sub-Assy, Brake Backing, Front Lh	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
47447-36020	Pin, Shoe Hold Down Spring(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
47449-30020	Cup, Shoe Hold Down Spring(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
47491-36010	Plug, Hole(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
47491-36020	Plug, Hole(For Rear Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
47510-36060	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
47510-39135	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
47520-36060	Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
47520-39105	Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
47530-36060	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
47530-39135	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
47531-36032	Piston, Wheel Brake Cylinder(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
47533-25010	Seat, Wheel Cylinder Piston Spring(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
47540-36060	Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
47540-39105	Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
47547-12010	Plug, Bleeder(For Release Cylinder)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
47551-36012	Nut, Rear Wheel Cylinder Adjusting, Rh(For Rear Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
47552-36012	Nut, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
47553-36030	Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
47554-36030	Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
47555-36020	Spring, Adjuster Lock(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
47651-36060	Lining, Front Brake Shoe(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
47651-36190	Lining, Front Brake Shoe(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
90101-10027	New Genuine Part	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
90101-12021	Bolt(For Backing Plate To Steering Knuckle Setting)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
90101-12175	Bolt(For Backing Plate To Rear Axle Housing Setting)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
90149-50001	New Genuine Part	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
90201-12452	Nut(For Backing Plate To Steering Knuckle Setting)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
90266-05005	Rivet, Brake Lining(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
90501-10759	Spring, Compression(For Front Wheel Brake Cylinder)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
90501-20012	Spring(For Front Brake Shoe Hold Down)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
90506-29216	Spring, Tension(For Front Brake Shoe Return)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
90507-29006	Spring, Tension(For Front Brake Shoe Return)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
94115-71200	Nut(For Backing Plate To Steering Knuckle Setting)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
94511-00500	Washer, Cover Set, No.2	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Front Drum Brake Wheel Cylinder & Backing Plate ([08.1977 - ] (7708- ))

Source: Public OEM parts-catalog data
Variants: 2 / 13
Category: 136
Collected: 2026-08-02
