Search › Model › RB12
RB12

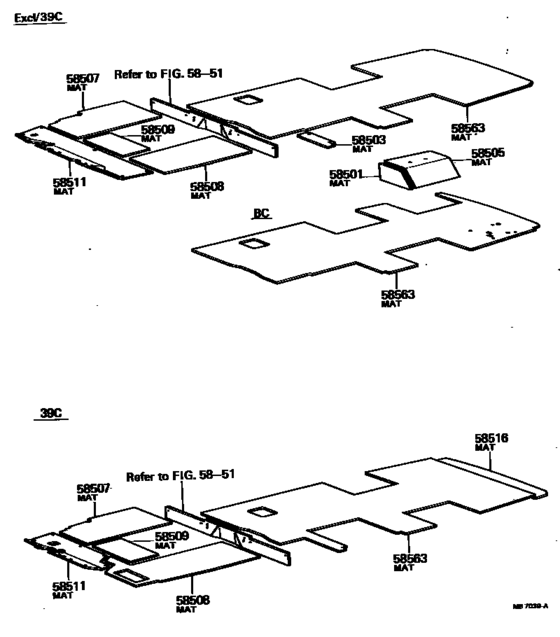

Floor Mat & Silencer Pad ([08.1977 - ] (7708- )) 6
| # | OEM | Part name |
|---|---|---|
| 58503 | 58529-90744 | Mat Assy, Battery Service Hole Cover |
| 58507 | 58517-90743 | Mat Sub-Assy, Engine Upper Floor, Rh |
| 58508 | 58518-90744 | Mat Sub-Assy, Engine Upper Floor, Lh |
| 58509 | 58519-90742 | Mat Sub-Assy, Engine Upper Floor, Center |
| 58511 | 58501-90743 | Mat, Floor, Front |
| 58563 | 58516-90749 | Mat, Rear Floor |
| OEM | Part name | Category |
|---|---|---|
| 58501-90743 | Mat, Floor, Front | Floor Mat & Silencer Pad ([08.1977 - ] (7708- )) |
| 58516-90749 | Mat, Rear Floor | Floor Mat & Silencer Pad ([08.1977 - ] (7708- )) |
| 58517-90743 | Mat Sub-Assy, Engine Upper Floor, Rh | Floor Mat & Silencer Pad ([08.1977 - ] (7708- )) |
| 58518-90744 | Mat Sub-Assy, Engine Upper Floor, Lh | Floor Mat & Silencer Pad ([08.1977 - ] (7708- )) |
| 58519-90742 | Mat Sub-Assy, Engine Upper Floor, Center | Floor Mat & Silencer Pad ([08.1977 - ] (7708- )) |
| 58529-90744 | Mat Assy, Battery Service Hole Cover | Floor Mat & Silencer Pad ([08.1977 - ] (7708- )) |
