Search › Model › RB12
RB12

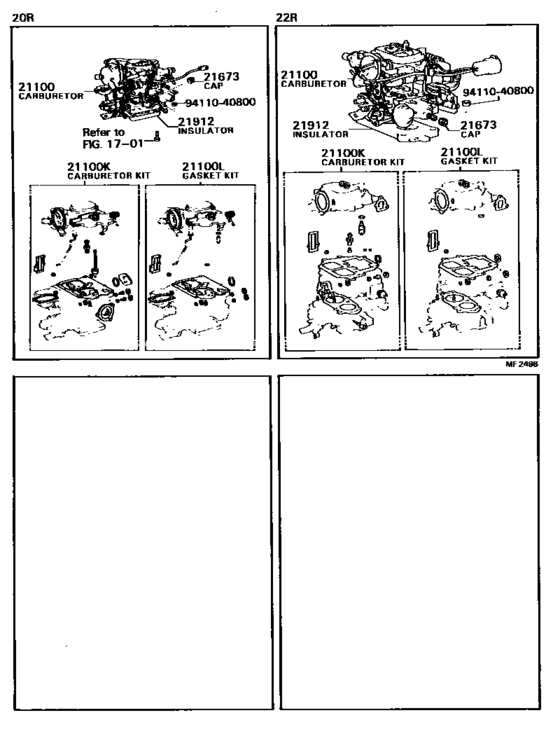

Carburetor Assembly ([08.1977 - ] (7708- )20R,22R) 10
| # | OEM | Part name |
|---|---|---|
| 21100 | 21100-38450 | Carburetor Assy |
| 21100 | 04211-38060 | Carburetor Kit |
| 21100 | 04211-38062 | Carburetor Kit |
| 21100 | 04212-38020 | Gasket Kit, Carburetor |
| 21100 | 04212-37033 | Gasket Kit, Carburetor |
| 21673 | 21673-38020 | Cap, Idle Limit |
| 21912 | 21912-38030 | Insulator, Carburetor Heat |
| 21912 | 21912-38031 | Insulator, Carburetor Heat |
| 9411040800 | 94110-40800 | Nut(For Steering Damper) |
| 9411040800 | 94130-00802 | Nut, No.1 (For Center Support Bearing) |
| OEM | Part name | Category |
|---|---|---|
| 04211-38060 | Carburetor Kit | Carburetor Assembly ([08.1977 - ] (7708- )20R,22R) |
| 04211-38062 | Carburetor Kit | Carburetor Assembly ([08.1977 - ] (7708- )20R,22R) |
| 04212-37033 | Gasket Kit, Carburetor | Carburetor Assembly ([08.1977 - ] (7708- )20R,22R) |
| 04212-38020 | Gasket Kit, Carburetor | Carburetor Assembly ([08.1977 - ] (7708- )20R,22R) |
| 21100-38450 | Carburetor Assy | Carburetor Assembly ([08.1977 - ] (7708- )20R,22R) |
| 21673-38020 | Cap, Idle Limit | Carburetor Assembly ([08.1977 - ] (7708- )20R,22R) |
| 21912-38030 | Insulator, Carburetor Heat | Carburetor Assembly ([08.1977 - ] (7708- )20R,22R) |
| 21912-38031 | Insulator, Carburetor Heat | Carburetor Assembly ([08.1977 - ] (7708- )20R,22R) |
| 94110-40800 | Nut(For Steering Damper) | Carburetor Assembly ([08.1977 - ] (7708- )20R,22R) |
| 94130-00802 | Nut, No.1 (For Center Support Bearing) | Carburetor Assembly ([08.1977 - ] (7708- )20R,22R) |
