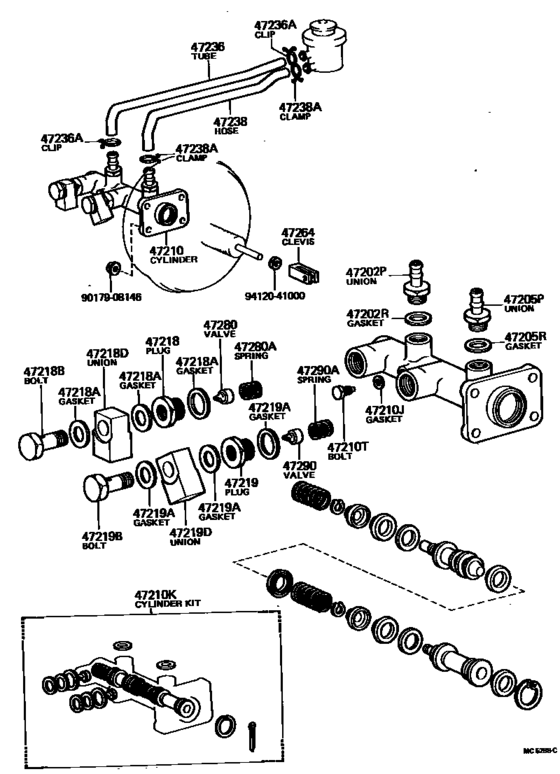

| 04493-36020 |
Cylinder Kit, Brake Master |
Brake Master Cylinder ([08.1977 - ] (7708- )) |
| 47201-36060 |
Cylinder Assy, Master, W/o Booster |
Brake Master Cylinder ([08.1977 - ] (7708- )) |
| 47218-36040 |
Plug, Master Cylinder Fluid Outlet |
Brake Master Cylinder ([08.1977 - ] (7708- )) |
| 47234-36030 |
Tube, Reservoir Brake |
Brake Master Cylinder ([08.1977 - ] (7708- )) |
| 47235-36030 |
Hose, Master Cylinder Bridge |
Brake Master Cylinder ([08.1977 - ] (7708- )) |
| 47264-35010 |
Clevis,brake Pedal |
Brake Master Cylinder ([08.1977 - ] (7708- )) |
| 47281-30020 |
Valve Assy, Brake Master Cylinder Outlet Check |
Brake Master Cylinder ([08.1977 - ] (7708- )) |
| 90109-06008 |
Bolt(For Brake Master Cylinder) |
Brake Master Cylinder ([08.1977 - ] (7708- )) |
| 90170-A0002 |
Nut |
Brake Master Cylinder ([08.1977 - ] (7708- )) |
| 90179-08146 |
Nut |
Brake Master Cylinder ([08.1977 - ] (7708- )) |
| 90179-08204 |
Nut |
Brake Master Cylinder ([08.1977 - ] (7708- )) |
| 90401-10037 |
Bolt, Union(For Master Cylinder Fluid Outlet) |
Brake Master Cylinder ([08.1977 - ] (7708- )) |
| 90404-16233 |
Union, Reservoir(For Brake Master Cylinder Side) |
Brake Master Cylinder ([08.1977 - ] (7708- )) |
| 90405-12148 |
Union(For Master Cylinder Fluid Outlet) |
Brake Master Cylinder ([08.1977 - ] (7708- )) |
| 90430-06104 |
Gasket(For Brake Actuator) |
Brake Master Cylinder ([08.1977 - ] (7708- )) |
| 90430-10074 |
Gasket(For Oil Pressure Regulator) |
Brake Master Cylinder ([08.1977 - ] (7708- )) |
| 90430-11001 |
Gasket(For Fluid Outlet Plug) |
Brake Master Cylinder ([08.1977 - ] (7708- )) |
| 90430-16044 |
Gasket(For Water By-Pass Hose) - RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) |
Brake Master Cylinder ([08.1977 - ] (7708- )) |
| 90467-15120 |
Clip Or Clamp(For Ventilation Hose) |
Brake Master Cylinder ([08.1977 - ] (7708- )) |
| 90504-05003 |
Spring, Compression |
Brake Master Cylinder ([08.1977 - ] (7708- )) |
| 94120-41000 |
Nut(For Clutch Pedal Stopper) |
Brake Master Cylinder ([08.1977 - ] (7708- )) |
