Search › Model › RB10

RB10

Toyota COASTER · 1977 · 3,232 parts · 125 categories

3,232 items

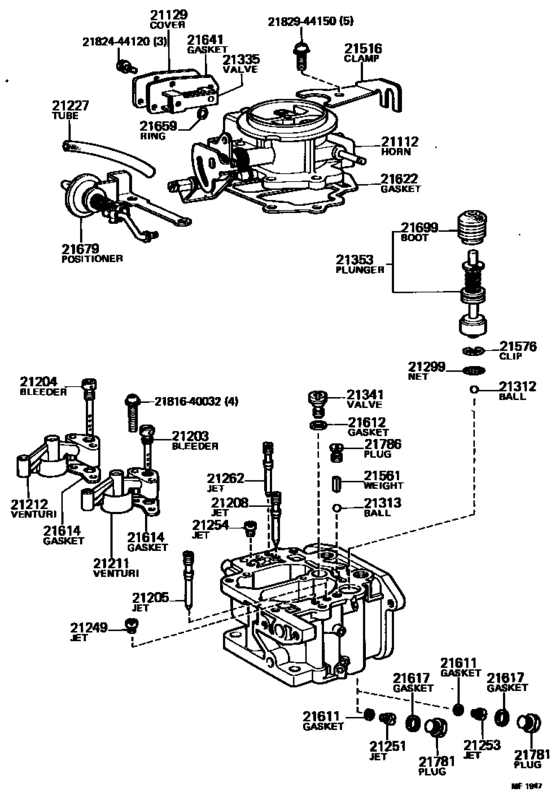

Carburetor ([08.1977 - 11.1979] (7708-7911)5R) 94

#	OEM	Part name
21049	21421-44120	Lever Sub-Assy, 2Nd Throttle
21112	21012-44122	Horn, Air
21113	21013-44250	Flange, Carburetor
21129	21398-44120	Cover(For Thermostatic Valve)
21161	21161-44120	Enricher, Coasting
21161	21655-44120	Ring, O(For Coasting Enricher)
21171	21171-44120	Chamber, Diaphragm
21203	21203-44120	Bleeder Sub-Assy, 1St Main Air
21204	21203-44051	Bleeder Sub-Assy, 2Nd Main Air
21205	21205-44250	Jet Sub-Assy, Slow
21206	21206-44052	Strainer Sub-Assy
21208	21208-44120	Jet Sub-Assy, Step
21209	21209-44120	Float Sub-Assy
21211	21201-44120	Venturi, 1St Small
21212	21202-44122	Venturi, 2Nd Small
21227	21681-44171	Tube, Air Vent
21249	21249-34400	Jet, Air Bleed, No.2
21251	21251-44250	Jet, 1St Main
21253	21253-34400	Jet, 2Nd Main
21254	21204-44122	Jet, Step Air Bleed
21262	21262-44250	Jet, Main Air Bleed
21271	21271-44220	Screw, Idle Adjusting
21273	21273-44120	Screw, Throttle Adjusting
21291	21291-40020	Glass, Level Gage
21299	21299-40020	Net, Pump Filter
21301	21301-44250	Valve Sub-Assy, Needle
21312	21312-40020	Ball, Steel(For Auxiliary Acceleration Pump)
21335	21038-44122	Valve, Thermostatic
21341	21302-36120	Valve, Power
21341	21302-73110	Jet, Power
21353	21035-44052	Plunger, Pump
21406	21406-44120	Lever Sub-Assy, 1St Throttle
21431	21044-44120	Arm, 1St Throttle Shaft
21452	21407-44250	Lever, Pump
21453	21431-44120	Lever, 1St Throttle
21456	21048-44120	Lever, 1St Throttle Idle Adjusting, No.1
21467	21467-44120	Lever, 2Nd Throttle Return
21471	21471-44250	Link, Pump Connecting
21481	21475-44120	Connector, 1St Idle
21511	21511-40020	Clamp, Level Gage
21516	21516-44170	Clamp, Connector
21541	21541-40020	Collar, Float Pin
21548	21541-44120	Collar, Throttle Lever
21551	21551-36120	Holder, Back Spring
21561	21561-40020	Weight, Pump Discharge
21576	21576-40020	Clip, Pump Strainer
21611	21611-40021	Gasket, Main Jet
21612	21612-31100	Gasket, Power Valve
21614	21614-44120	Gasket, Venturi
21617	21633-44150	Gasket, Main Passage Plug
21618	21618-40020	Gasket, Needle Valve Seat
21621	21621-31100	Gasket, Union Nipple
21622	21622-44120	Gasket, Air Horn
21622	21622-44301	Gasket, Air Horn
21623	21623-44120	Gasket, Body Flange
21623	21623-44310	Gasket, Body Flange
21625	21625-31031	Gasket, Level Gage
21631	21631-40020	Gasket, Main Guide
21641	21626-44120	Gasket(For Thermostatic Valve Cover)
21645	21638-44120	Gasket, Diaphragm, Cap
21659	21655-31100	Ring, O(For Thermostatic Valve)
21679	21039-44122	Positioner
21699	21656-40021	Boot(For Pump Plunger)
21723	21723-30030	Spring, Idle Adjusting
21724	21722-44120	Spring, Throttle Adjusting
21727	21723-44120	Spring, Pump Connecting Link Support
21735	21722-44050	Spring, Pump Arm
21751	21751-44051	Union, Nipple
21781	21781-44150	Plug, Main Passage(For Carburetor Jet)
21785	21811-44051	Plug, Carburetor Fuel Inlet Strainer
21786	21787-40021	Plug, Pump Passage
21791	21791-40020	Ring, Snap, No.1(For Carburetor Link)
21794	21799-40020	Ring, Retainer, No.1(For Throttle Shaft)
21797	21797-44050	Ring, Snap, No.1(For Carburetor Link)
21833	21804-44170	Screw, Set, No.1(For Carburetor Body Set)
21834	21834-31100	Screw, Set, No.2(For Carburetor Body Set)
21842	21832-40021	Screw, Set(For Carburetor Level Gage Clamp Set)
21852	21852-44050	Nut, Throttle Lever Set
21852	21855-40030	Nut, Throttle Lever Set
21881	21881-31030	Washer, Lock(For Throttle Shaft)
21881	21881-40030	Washer, Lock(For Throttle Shaft)
21934	21391-44120	Solenoid, Throttle Valve
21934	21637-44120	Gasket
2176536120	21765-36120	Pin(for Pump Plunger)
2176536120	21765-36110	Pin(for Pump Plunger)
2176540020	21765-40020	Pin(for Pump Plunger)
2181640032	21816-40032	Screw, Small Venturi Set, No.1
2182444120	21824-44120	Screw, Set(for 1st Idle Cam Follower Set)
2182944120	21829-44120	Screw, High Speed Valve Set
2182944150	21829-44150	Screw, High Speed Valve Set
2183244051	21832-44051	Screw(for Choke Lever Adapter Set)
2183244120	21832-44120	Screw, Set(for 1st Idle Cam Follower Set)
2187536120	21875-36120	Washer, Throttle Opener Arm
2187540040	21875-40040	Washer, Throttle Opener Arm

OEM	Part name	Category
21012-44122	Horn, Air	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21013-44250	Flange, Carburetor	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21035-44052	Plunger, Pump	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21038-44122	Valve, Thermostatic	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21039-44122	Positioner	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21044-44120	Arm, 1St Throttle Shaft	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21048-44120	Lever, 1St Throttle Idle Adjusting, No.1	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21161-44120	Enricher, Coasting	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21171-44120	Chamber, Diaphragm	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21201-44120	Venturi, 1St Small	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21202-44122	Venturi, 2Nd Small	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21203-44051	Bleeder Sub-Assy, 2Nd Main Air	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21203-44120	Bleeder Sub-Assy, 1St Main Air	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21204-44122	Jet, Step Air Bleed	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21205-44250	Jet Sub-Assy, Slow	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21206-44052	Strainer Sub-Assy	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21208-44120	Jet Sub-Assy, Step	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21209-44120	Float Sub-Assy	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21249-34400	Jet, Air Bleed, No.2	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21251-44250	Jet, 1St Main	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21253-34400	Jet, 2Nd Main	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21262-44250	Jet, Main Air Bleed	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21271-44220	Screw, Idle Adjusting	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21273-44120	Screw, Throttle Adjusting	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21291-40020	Glass, Level Gage	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21299-40020	Net, Pump Filter	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21301-44250	Valve Sub-Assy, Needle	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21302-36120	Valve, Power	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21302-73110	Jet, Power	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21312-40020	Ball, Steel(For Auxiliary Acceleration Pump)	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21391-44120	Solenoid, Throttle Valve	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21398-44120	Cover(For Thermostatic Valve)	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21406-44120	Lever Sub-Assy, 1St Throttle	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21407-44250	Lever, Pump	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21421-44120	Lever Sub-Assy, 2Nd Throttle	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21431-44120	Lever, 1St Throttle	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21467-44120	Lever, 2Nd Throttle Return	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21471-44250	Link, Pump Connecting	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21475-44120	Connector, 1St Idle	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21511-40020	Clamp, Level Gage	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21516-44170	Clamp, Connector	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21541-40020	Collar, Float Pin	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21541-44120	Collar, Throttle Lever	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21551-36120	Holder, Back Spring	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21561-40020	Weight, Pump Discharge	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21576-40020	Clip, Pump Strainer	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21611-40021	Gasket, Main Jet	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21612-31100	Gasket, Power Valve	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21614-44120	Gasket, Venturi	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21618-40020	Gasket, Needle Valve Seat	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21621-31100	Gasket, Union Nipple	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21622-44120	Gasket, Air Horn	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21622-44301	Gasket, Air Horn	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21623-44120	Gasket, Body Flange	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21623-44310	Gasket, Body Flange	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21625-31031	Gasket, Level Gage	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21626-44120	Gasket(For Thermostatic Valve Cover)	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21631-40020	Gasket, Main Guide	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21633-44150	Gasket, Main Passage Plug	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21637-44120	Gasket	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21638-44120	Gasket, Diaphragm, Cap	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21655-31100	Ring, O(For Thermostatic Valve)	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21655-44120	Ring, O(For Coasting Enricher)	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21656-40021	Boot(For Pump Plunger)	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21681-44171	Tube, Air Vent	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21722-44050	Spring, Pump Arm	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21722-44120	Spring, Throttle Adjusting	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21723-30030	Spring, Idle Adjusting	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21723-44120	Spring, Pump Connecting Link Support	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21751-44051	Union, Nipple	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21765-36110	Pin(for Pump Plunger)	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21765-36120	Pin(for Pump Plunger)	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21765-40020	Pin(for Pump Plunger)	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21781-44150	Plug, Main Passage(For Carburetor Jet)	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21787-40021	Plug, Pump Passage	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21791-40020	Ring, Snap, No.1(For Carburetor Link)	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21797-44050	Ring, Snap, No.1(For Carburetor Link)	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21799-40020	Ring, Retainer, No.1(For Throttle Shaft)	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21804-44170	Screw, Set, No.1(For Carburetor Body Set)	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21811-44051	Plug, Carburetor Fuel Inlet Strainer	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21816-40032	Screw, Small Venturi Set, No.1	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21824-44120	Screw, Set(for 1st Idle Cam Follower Set)	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21829-44120	Screw, High Speed Valve Set	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21829-44150	Screw, High Speed Valve Set	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21832-40021	Screw, Set(For Carburetor Level Gage Clamp Set)	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21832-44051	Screw(for Choke Lever Adapter Set)	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21832-44120	Screw, Set(for 1st Idle Cam Follower Set)	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21834-31100	Screw, Set, No.2(For Carburetor Body Set)	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21852-44050	Nut, Throttle Lever Set	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21855-40030	Nut, Throttle Lever Set	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21875-36120	Washer, Throttle Opener Arm	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21875-40040	Washer, Throttle Opener Arm	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21881-31030	Washer, Lock(For Throttle Shaft)	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)
21881-40030	Washer, Lock(For Throttle Shaft)	Carburetor ([08.1977 - 11.1979] (7708-7911)5R)

Source: Public OEM parts-catalog data
Variants: 2 / 16
Category: 125
Collected: 2026-08-02
