RA64

Toyota CELICA · 1981 · 6,790 parts · 219 categories
RA64 ×

← Back to categories

6,790 items

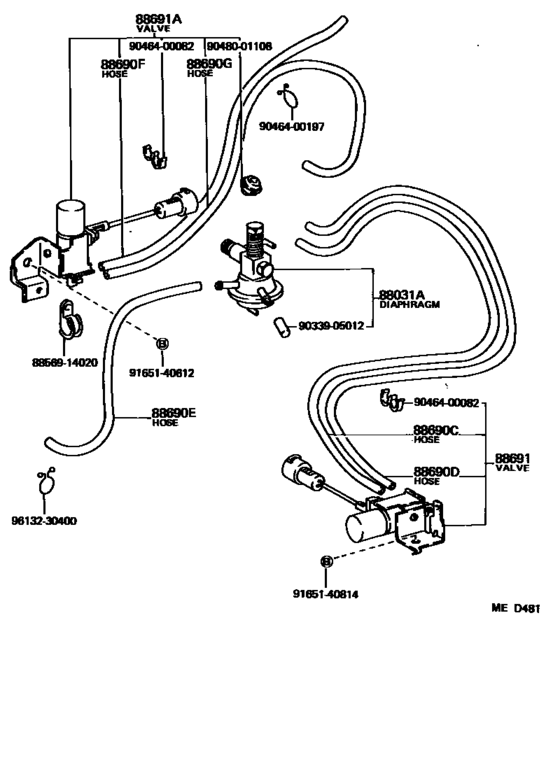

Heating & Air Conditioning - Vacuum Piping ([08.1982 - 07.1985] (8208-8507)RA6#..EFI) 22
#OEMPart name
88031 88606-14050 Diaphragm Sub-Assy, Idle-Up Actuator
88031 88606-14051 Diaphragm Sub-Assy, Idle-Up Actuator
88031 90339-05012 New Genuine Part
88690 95411-10130 Pipe Or Hose
88690 90999-92002 Air Hose (300 mm)
88690 95411-10030 Hose (For Idle Up Device)
88690 88689-14080 Hose, Damper Control Diaphragm Vacuum - VACUUM (FOR IDLE UP DIVICE), NO.2
88690 95411-19995 Hose, Vaccum
88690 90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift)
88690 95411-10095 Hose, Vacuum, No.6 (For Front Drive Shift)
88691 88690-14730 Valve, Magnet (For Idle Up Device)
88691 88690-14740 Valve, Magnet (For Blower Changing-Over Device)
8856914020 88569-14020 Clamp (For Idle Up Divice), No.2
9046400082 90464-00082 Clamp(For Resistive Cord)
9046400197 90464-00197 New Genuine Part
9048001108 90480-01108 Grommet(For Heater Control Cable)
9165140612 91651-40612 BOLT
9165140612 90080-11225 New Genuine Part
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9613230400 96132-30400 Clip Or Clamp(For Ventilation Hose)
9613230400 96132-51000 Clip Or Clamp(For Ventilation Hose)
