RA64

Toyota CELICA · 1981 · 6,790 parts · 219 categories
RA64 ×

← Back to categories

6,790 items

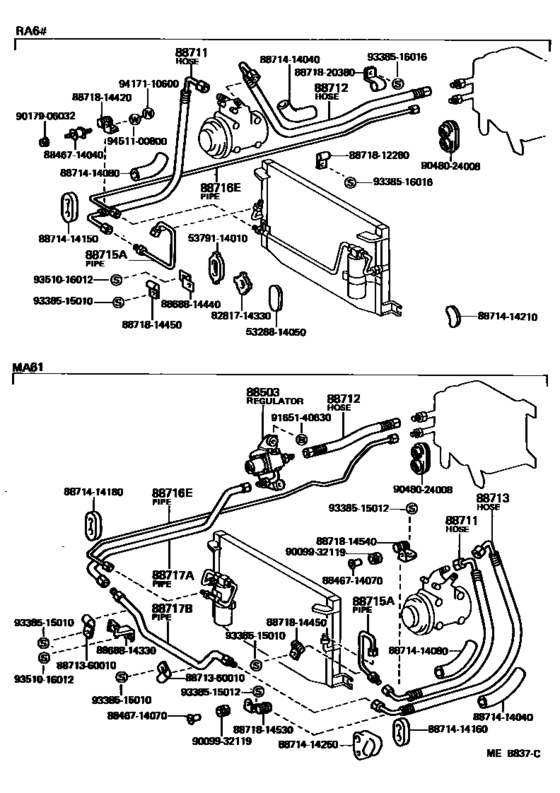

Heating & Air Conditioning - Cooler Piping ([08.1981 - ] (8108- )) 42
#OEMPart name
88711 88711-14440 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-14441 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-14830 Hose, Cooler Refrigerant Suction, No.1
88712 88720-14140 Hose, Cooler Refrigerant Suction, No.1
88715 88715-14130 Pipe, Cooler Refrigerant Discharge, A
88716 88716-14770 Pipe, Cooler Refrigerant Liquid, E
88716 88716-14771 Pipe, Cooler Refrigerant Liquid, E
5328814050 53288-14050 Cover, Power Steering Pipe Hole
5379114010 53791-14010 Cover, Cool Air Intake Hole
8281714330 82817-14330 Protector, Wiring Harness, No.1
8846714040 88467-14040 Cushion, Cooler Condenser, No.1
8846714070 88467-14070 Insulator (For Power Take-Off Cable Bracket)
8868814330 88688-14330 Bracket, Cooler Diaphragm
8868814440 88688-14440 Bracket, Cooler Diaphragm
8871360010 88713-60010 Hose, Cooler Refrigerant Suction, No.2
8871414040 88714-14040 Insulator, Cooler Refrigerant Hose, No.1
8871414040 87173-36040 Insulator, Cooler Refrigerant Hose, No.4
8871414080 88714-14080 Insulator, Cooler Refrigerant Hose, No.2
8871414080 88714-24020 Insulator, Cooler Refrigerant Hose, No.1
8871414150 88714-14150 Hose, Cooler Refrigerant Liquid, No.1
8871414160 88714-14160 Hose, Cooler Refrigerant Liquid, No.1
8871414180 88714-14180 Hose, Cooler Refrigerant Liquid, No.1
8871414210 88714-14210 Hose, Cooler Refrigerant Liquid, No.1
8871414250 88714-14250 Hose, Cooler Refrigerant Liquid, No.1
8871812280 88718-12280 Clamp(For Cooler Refrigerant Pipe), No.1
8871814420 88718-14420 Pipe, Cooler Refrigerant Suction, No.2
8871814450 88718-14450 Clamp(For Cooler Refrigerant Pipe), No.1
8871814530 88718-14530 Pipe, Cooler Refrigerant Suction, No.2
8871814540 88718-14540 Pipe, Cooler Refrigerant Suction, No.2
8871820380 88718-20380 Pipe, Cooler Refrigerant Suction, No.2
9009932119 90099-32119 New Genuine Part
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
9048024008 90480-24008 Grommet (For Cooler Unit)
9048024008 90099-32137 Grommet (For Cooler Unit)
9165140630 91651-40630 BOLT
9338515010 93385-15010 Screw(For Steering Tilt Lever)
9338515012 93385-15012 SCREW
9338516016 93385-16016 New Genuine Part
9351016012 93510-16012 Screw, Pillar Joint Setting
9417110600 94171-10600 New Genuine Part
9451100800 94511-00800 WASHERSPRING
