RA64

Toyota CELICA · 1981 · 6,790 parts · 219 categories
RA64 ×

← Back to categories

6,790 items

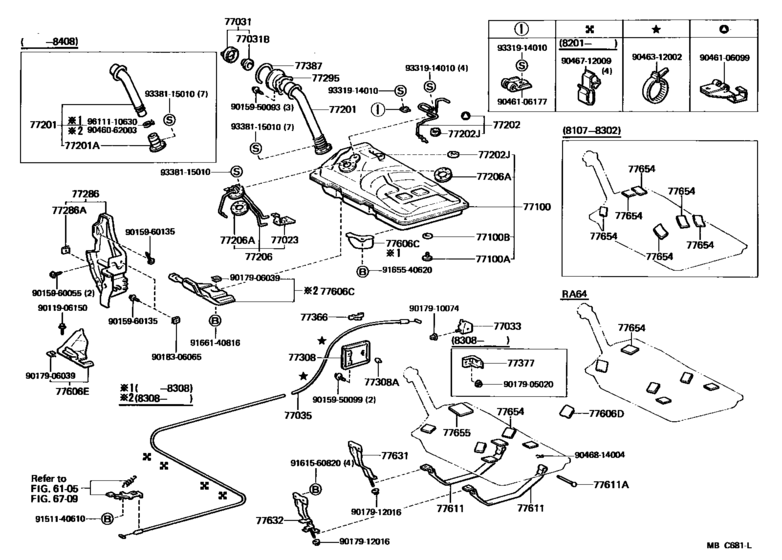

Fuel Tank & Tube ([08.1981 - ] (8108- )) 79
#OEMPart name
77023 77023-30010 Filter Sub-Assy, Fuel Suction Tube
77031 77310-12100 Cap Assy, Fuel Tank
77031 77310-16010 Cap Assy, Fuel Tank
77031 77310-16011 Cap Assy, Fuel Tank
77031 77316-12050 Gasket (For Fuel Tank Cap)
77031 77316-16010 Gasket (For Fuel Tank Cap)
77033 77037-14010 Lock Sub-Assy, Fuel Tank Cap
77033 77037-90K00 Lock Sub-Assy, Fuel Tank Cap
77033 77037-24010 Lock Sub-Assy, Fuel Tank Cap
77035 77035-14130 Cable Sub-Assy, Fuel Lid Lock Control
77035 77035-14200 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-19188 Tank Assy, Fuel
77100 90341-20003 Plug(For Fuel Tank)
77100 90341-20004 Plug(For Fuel Tank)
77100 90430-20007 Gasket(For Fuel Tank)
77100 77001-19185 Tank Assy, Fuel
77100 77001-19187 Tank Assy, Fuel
77100 90341-24036 Plug(For Fuel Tank)
77100 90430-20006 Gasket(For Fuel Tank)
77100 90430-24047 Gasket(For Fuel Tank)
77201 77201-14210 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-14240 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-14270 Pipe Sub-Assy, Fuel Tank Inlet
77201 77213-14090 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77202 77012-14034 Tube Sub-Assy, Breather
77202 77179-14030 Retainer, Fuel Tank Mounting, Front
77202 77012-14033 Tube Sub-Assy, Breather
77206 77203-14071 Tube Sub-Assy, Fuel Tank Suction
77206 77169-14010 Gasket, Fuel Pump Bracket
77286 77277-14090 Protector, Fuel Tank Inlet Pipe
77286 90183-06006 Retainer, Fuel Filler Pipe Protector
77295 77034-14010 Shield, Fuel Filler Pipe
77295 77034-14020 Shield, Fuel Filler Pipe
77308 77350-14040 Cover Sub-Assy, Fuel Inlet Box
77308 90541-05009 Cushion(For Fuel Inlet Box Cover)
77308 77350-91D01 Cover Sub-Assy, Fuel Inlet Box
77366 77360-24010 Retainer, Fuel Inlet Cushion
77377 77377-24010 Retainer, Fuel Filler Opening Lid Lock
77387 77391-14020 Ring, Fuel Inlet Box
77606 77642-14020 Protector, Fuel Tank, No.2
77606 77641-14080 Protector, Fuel Tank, No.4
77611 77601-14060 Band, Fuel Tank
77611 77601-14050 Band, Fuel Tank
77611 77602-14030 Band, Fuel Tank
77611 90240-08020 Pin (For Fuel Tank Band)
77631 77613-14022 Bracket, Fuel Tank, No.1
77632 77614-14021 Bracket, Fuel Tank, No.2
77654 77652-14080 Cushion, Fuel Tank, No.1
77654 77652-14060 Cushion, Fuel Tank, No.2
77654 77652-20010 Cushion, Fuel Tank, No.1
9011906150 90119-06150 New Genuine Part
9011906150 90109-06165 New Genuine Part
9015950093 90159-50093 New Genuine Part
9015950099 90159-50099 New Genuine Part
9015960055 90159-60055 New Genuine Part
9015960135 90159-60135 New Genuine Part
9017905020 90179-05020 NUT
9017905020 90179-05011 NUT
9017906039 90179-06039 New Genuine Part
9017910074 90179-10074 New Genuine Part
9017912016 90179-12016 NUT
9018306065 90183-06065 NUTSPRG
9046062003 90460-62003 Clamp Or Clip(For Air Hose, No.2)
9046062003 90460-62007 Clamp Or Clip(For Air Hose, No.2) - NO.1)
9046106099 90461-06099 New Genuine Part
9046106177 90461-06177 New Genuine Part
9046312002 90463-12002 Clamp, Choke Cable
9046712009 90467-12009 Clamp, No.1(For Luggage Door Lock Control Cable)
9046814004 90468-14004 Union, Auxiliary Fuel Band
9151140610 91511-40610 New Genuine Part
9151140610 91511-B0610 BOLT FLANGE
9161560820 91615-60820 Bolt (For Transmission Control Cable Bracket)
9161560820 91611-B0816 Bolt
9165540620 91655-40620 Bolt(For Oil Receiver Pipe)
9165540620 91651-60618 Bolt(For Oil Receiver Pipe)
9166140816 91661-40816 New Genuine Part
9331914010 93319-14010 SCREW
9338115010 93381-15010 SCREW
9611110630 96111-10630 Clamp, Hose
