RA64

Toyota CELICA · 1981 · 6,790 parts · 219 categories

6,790 items

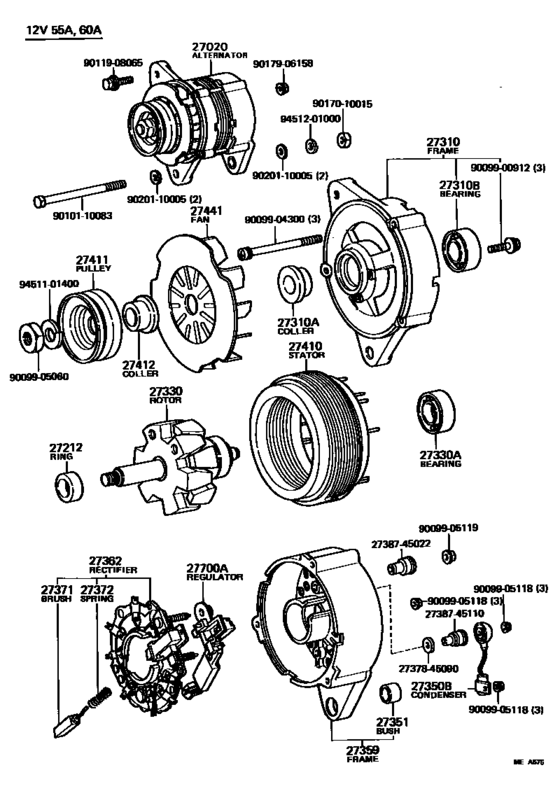

Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC) 61

#	OEM	Part name
27020	27060-35020	Alternator Assy
27020	27060-35060	Alternator Assy
27212	27412-45070	Ring, Space(For Alternator Rotor)
27310	27310-35020	Frame Assy, Drive End, Alternator
27310	27310-35060	Frame Assy, Drive End, Alternator
27310	27310-35061	Frame Assy, Drive End, Alternator
27310	27310-35120	Frame Assy, Drive End, Alternator
27310	27412-31040	Collar Or Nut(For Alternator Drive End Frame)
27310	90099-10125	Bearing(For Alternator Drive End Frame)
27310	90099-10152	Bearing(For Alternator Drive End Frame)
27310	90099-10159	Bearing(For Alternator Drive End Frame)
27310	90099-10199	Bearing(For Alternator Drive End Frame)
27310	27310-38061	Frame Assy, Drive End, Alternator
27330	27330-15070	Rotor Assy, Alternator
27330	27330-43040	Rotor Assy, Alternator
27330	27330-63021	Rotor Assy, Alternator
27330	27330-72101	Rotor Assy, Alternator
27330	27330-72100	Rotor Assy, Alternator
27330	90099-10116	Bearing(For Alternator Rotor)
27330	90099-10140	Bearing(For Alternator Rotor)
27350	90099-52065	Condenser, Alternator
27350	90099-52034	Condenser, Alternator
27351	27351-38051	Bush(For Alternator Rectifier End Frame)
27359	27359-16011	Frame, Alternator Rectifier End
27359	27359-16012	Frame, Alternator Rectifier End
27359	27384-16380	Washer
27359	27359-34080	Frame, Alternator Rectifier End
27359	27359-28030	Frame, Alternator Rectifier End
27362	27362-43040	Rectifier Assy, W/brush
27371	27371-31011	Brush, Alternator
27371	27371-63020	Brush, Alternator
27371	27371-70300	Brush, Alternator
27372	27372-31011	Spring, Alternator Brush
27372	27372-63020	Spring, Alternator Brush
27372	27372-87501	Spring, Alternator Brush
27372	27372-72100	Spring, Alternator Brush
27410	27410-45120	Stator Assy, Alternator
27410	27410-43040	Stator Assy, Alternator
27411	27411-31042	Pulley, Alternator
27411	27411-35060	Pulley, Alternator
27411	27411-35061	Pulley, Alternator
27412	27412-44031	Collar, Spacer(For Alternator Pulley)
27441	27441-70040	Fan, Alternator
27700	27700-43010	Regulator Assy, Generator
27700	27700-63021	Regulator Assy, Generator
27700	27700-70030	Regulator Assy, Generator
2737845090	27378-45090	Insulator, Alternator, No.1
2738745022	27387-45022	Insulator, Terminal
2738745110	27387-45110	Insulator, Terminal
9009900912	90099-00912	New Genuine Part
9009904300	90099-04300	New Genuine Part
9009905060	90099-05060	Collar Or Nut(For Alternator Drive End Frame)
9009905118	90099-05118	New Genuine Part
9009905119	90099-05119	New Genuine Part
9010110083	90101-10083	BOLT
9011908065	90119-08065	New Genuine Part
9017010015	90170-10015	NUT
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9020110005	90201-10005	Washer, Plate(For Cylinder Head Set)
9451101400	94511-01400	WASHER
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)

OEM	Part name	Category
27060-35020	Alternator Assy	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27060-35060	Alternator Assy	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27310-35020	Frame Assy, Drive End, Alternator	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27310-35060	Frame Assy, Drive End, Alternator	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27310-35061	Frame Assy, Drive End, Alternator	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27310-35120	Frame Assy, Drive End, Alternator	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27310-38061	Frame Assy, Drive End, Alternator	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27330-15070	Rotor Assy, Alternator	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27330-43040	Rotor Assy, Alternator	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27330-63021	Rotor Assy, Alternator	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27330-72100	Rotor Assy, Alternator	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27330-72101	Rotor Assy, Alternator	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27351-38051	Bush(For Alternator Rectifier End Frame)	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27359-16011	Frame, Alternator Rectifier End	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27359-16012	Frame, Alternator Rectifier End	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27359-28030	Frame, Alternator Rectifier End	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27359-34080	Frame, Alternator Rectifier End	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27362-43040	Rectifier Assy, W/brush	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27371-31011	Brush, Alternator	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27371-63020	Brush, Alternator	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27371-70300	Brush, Alternator	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27372-31011	Spring, Alternator Brush	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27372-63020	Spring, Alternator Brush	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27372-72100	Spring, Alternator Brush	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27372-87501	Spring, Alternator Brush	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27378-45090	Insulator, Alternator, No.1	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27384-16380	Washer	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27387-45022	Insulator, Terminal	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27387-45110	Insulator, Terminal	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27410-43040	Stator Assy, Alternator	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27410-45120	Stator Assy, Alternator	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27411-31042	Pulley, Alternator	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27411-35060	Pulley, Alternator	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27411-35061	Pulley, Alternator	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27412-31040	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27412-44031	Collar, Spacer(For Alternator Pulley)	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27412-45070	Ring, Space(For Alternator Rotor)	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27441-70040	Fan, Alternator	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27700-43010	Regulator Assy, Generator	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27700-63021	Regulator Assy, Generator	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
27700-70030	Regulator Assy, Generator	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
90099-00912	New Genuine Part	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
90099-04300	New Genuine Part	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
90099-05060	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
90099-05118	New Genuine Part	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
90099-05119	New Genuine Part	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
90099-10116	Bearing(For Alternator Rotor)	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
90099-10125	Bearing(For Alternator Drive End Frame)	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
90099-10140	Bearing(For Alternator Rotor)	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
90099-10152	Bearing(For Alternator Drive End Frame)	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
90099-10159	Bearing(For Alternator Drive End Frame)	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
90099-10199	Bearing(For Alternator Drive End Frame)	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
90099-52034	Condenser, Alternator	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
90099-52065	Condenser, Alternator	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
90101-10083	BOLT	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
90119-08065	New Genuine Part	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
90170-10015	NUT	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
90201-10005	Washer, Plate(For Cylinder Head Set)	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
94511-01400	WASHER	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Alternator ([08.1982 - 08.1984] (8108-8308)22R ; (8208-8408)22REC)
