RA43

Toyota CELICA · 1980 · 1,844 parts · 162 categories

← Back to categories

1,844 items

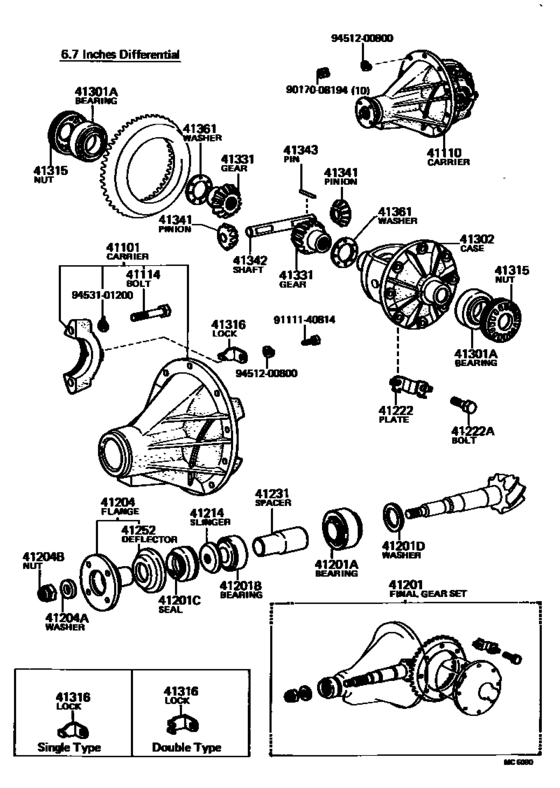

Rear Axle Housing & Differential ([08.1980 - ] (7708-8008)RA42..LB ; (7708-8008)RA42..LB ; (790 8-8008)CP..GT ; (7908-8008)CP..GT ; (8008- )GT ; (8008- )GT) 6

#	OEM	Part name
9017008194	90170-08194	Nut(For Backing Plate To Rear Axle Housing Setting)
9017008194	94130-00802	Nut, No.1 (For Center Support Bearing)
9111140814	91111-40814	Bolt (for Transmission Control Cable Bracket)
9111140814	91611-B0816	Bolt
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)
9453101200	94531-01200	WASHER

OEM	Part name	Category
90170-08194	Nut(For Backing Plate To Rear Axle Housing Setting)	Rear Axle Housing & Differential ([08.1980 - ] (7708-8008)RA42..LB ; (7708-8008)RA42..LB ; (790 8-8008)CP..GT ; (7908-8008)CP..GT ; (8008- )GT ; (8008- )GT)
91111-40814	Bolt (for Transmission Control Cable Bracket)	Rear Axle Housing & Differential ([08.1980 - ] (7708-8008)RA42..LB ; (7708-8008)RA42..LB ; (790 8-8008)CP..GT ; (7908-8008)CP..GT ; (8008- )GT ; (8008- )GT)
91611-B0816	Bolt	Rear Axle Housing & Differential ([08.1980 - ] (7708-8008)RA42..LB ; (7708-8008)RA42..LB ; (790 8-8008)CP..GT ; (7908-8008)CP..GT ; (8008- )GT ; (8008- )GT)
94130-00802	Nut, No.1 (For Center Support Bearing)	Rear Axle Housing & Differential ([08.1980 - ] (7708-8008)RA42..LB ; (7708-8008)RA42..LB ; (790 8-8008)CP..GT ; (7908-8008)CP..GT ; (8008- )GT ; (8008- )GT)
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Rear Axle Housing & Differential ([08.1980 - ] (7708-8008)RA42..LB ; (7708-8008)RA42..LB ; (790 8-8008)CP..GT ; (7908-8008)CP..GT ; (8008- )GT ; (8008- )GT)
94531-01200	WASHER	Rear Axle Housing & Differential ([08.1980 - ] (7708-8008)RA42..LB ; (7708-8008)RA42..LB ; (790 8-8008)CP..GT ; (7908-8008)CP..GT ; (8008- )GT ; (8008- )GT)

Source: Public OEM parts-catalog data
Variants: 2 / 6
Category: 162
Collected: 2026-08-02
