Search › Model › RA43
RA43

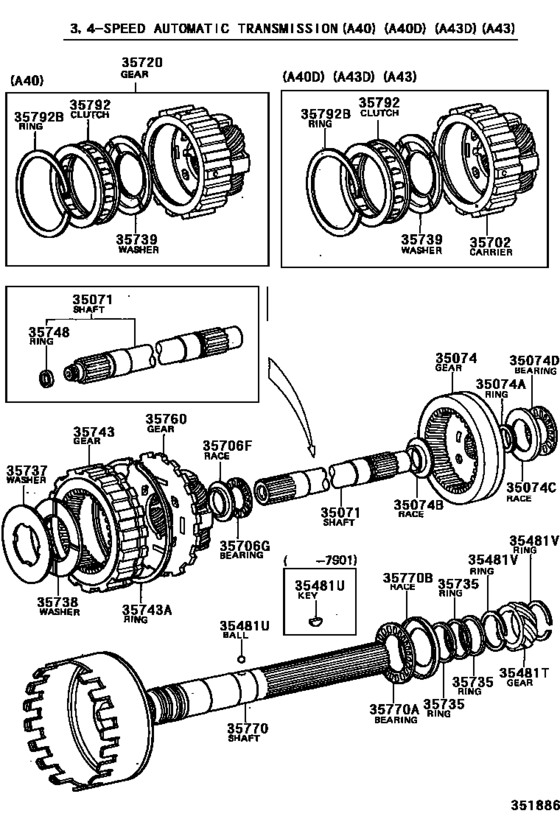

Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1977 - ] (7708- )ATM) 4
| # | OEM | Part name |
|---|---|---|
| 35481 | 33481-26010 | Gear, Speedmeter Drive (Atm) |
| 35481 | 90360-06004 | Ball, Detent(For Gear Shift Head No.4) |
| 35481 | 90080-36191 | Ball, Check Valve |
| 35481 | 90520-28009 | Ring Or Spacer (For Mtm Speedometer Drive Gear) |
| OEM | Part name | Category |
|---|---|---|
| 33481-26010 | Gear, Speedmeter Drive (Atm) | Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1977 - ] (7708- )ATM) |
| 90080-36191 | Ball, Check Valve | Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1977 - ] (7708- )ATM) |
| 90360-06004 | Ball, Detent(For Gear Shift Head No.4) | Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1977 - ] (7708- )ATM) |
| 90520-28009 | Ring Or Spacer (For Mtm Speedometer Drive Gear) | Planetary Gear, Reverse Piston & Counter Gear(Atm) ([08.1977 - ] (7708- )ATM) |
