Search › Model › RA43
RA43

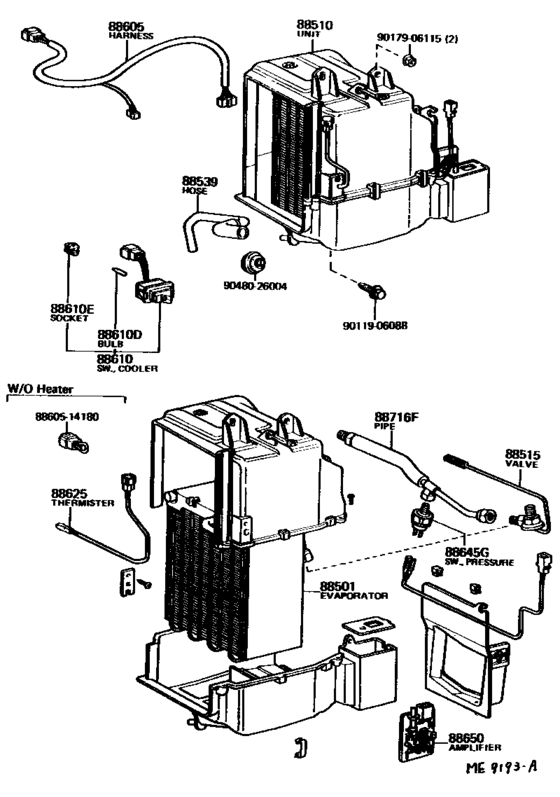

Heating & Air Conditioning - Cooler Unit ([08.1979 - ] (7908- )) 8
| # | OEM | Part name |
|---|---|---|
| 8856914020 | 88569-14020 | Clamp (For Idle Up Divice), No.2 |
| 8860514180 | 88605-14180 | Harness Sub-Assy, Cooler Wiring |
| 8868814200 | 88688-14200 | Bracket, Cooler Diaphragm |
| 8868814230 | 88688-14230 | Bracket, Cooler Diaphragm |
| 8889114030 | 88891-14030 | Gasket, Air Duct |
| 9011906088 | 90119-06088 | Bolt, W/washer (For Floor Shift) |
| 9017906115 | 90179-06115 | Nut (For Rear Wiper Arm Setting) |
| 9048026004 | 90480-26004 | Grommet, Heater Hose |
| OEM | Part name | Category |
|---|---|---|
| 88569-14020 | Clamp (For Idle Up Divice), No.2 | Heating & Air Conditioning - Cooler Unit ([08.1979 - ] (7908- )) |
| 88605-14180 | Harness Sub-Assy, Cooler Wiring | Heating & Air Conditioning - Cooler Unit ([08.1979 - ] (7908- )) |
| 88688-14200 | Bracket, Cooler Diaphragm | Heating & Air Conditioning - Cooler Unit ([08.1979 - ] (7908- )) |
| 88688-14230 | Bracket, Cooler Diaphragm | Heating & Air Conditioning - Cooler Unit ([08.1979 - ] (7908- )) |
| 88891-14030 | Gasket, Air Duct | Heating & Air Conditioning - Cooler Unit ([08.1979 - ] (7908- )) |
| 90119-06088 | Bolt, W/washer (For Floor Shift) | Heating & Air Conditioning - Cooler Unit ([08.1979 - ] (7908- )) |
| 90179-06115 | Nut (For Rear Wiper Arm Setting) | Heating & Air Conditioning - Cooler Unit ([08.1979 - ] (7908- )) |
| 90480-26004 | Grommet, Heater Hose | Heating & Air Conditioning - Cooler Unit ([08.1979 - ] (7908- )) |
