RA43

Toyota CELICA · 1980 · 1,844 parts · 162 categories
RA43 ×

← Back to categories

1,844 items

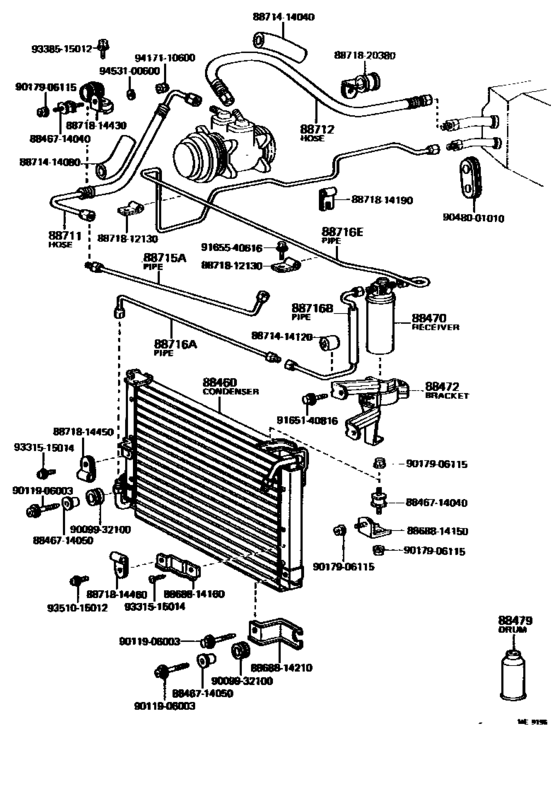

Heating & Air Conditioning - Cooler Piping ([08.1979 - ] (7908- )RA4#) 29
#OEMPart name
8846714040 88467-14040 Cushion, Cooler Condenser, No.1
8846714050 88467-14050 Cushion, Cooler Condenser, No.1
8868814150 88688-14150 Bracket, Cooler Diaphragm
8868814160 88688-14160 Bracket, Cooler Diaphragm
8868814210 88688-14210 Bracket, Cooler Diaphragm
8871414040 88714-14040 Insulator, Cooler Refrigerant Hose, No.1
8871414040 87173-36040 Insulator, Cooler Refrigerant Hose, No.4
8871414080 88714-14080 Insulator, Cooler Refrigerant Hose, No.2
8871414080 88714-24020 Insulator, Cooler Refrigerant Hose, No.1
8871414120 88714-14120 Hose, Cooler Refrigerant Liquid, No.1
8871812130 88718-12130 Clamp (for Cooler Relay)
8871812130 88569-30400 Clamp (for Cooler Relay)
8871814190 88718-14190 Pipe, Cooler Refrigerant Suction, No.2
8871814430 88718-14430 Pipe, Cooler Refrigerant Suction, No.2
8871814450 88718-14450 Clamp(For Cooler Refrigerant Pipe), No.1
8871814460 88718-14460 Pipe, Cooler Refrigerant Suction, No.2
8871820380 88718-20380 Pipe, Cooler Refrigerant Suction, No.2
9009932100 90099-32100 Cushion, Cooler Condenser, No.2
9011906003 90119-06003 New Genuine Part
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
9048001010 90480-01010 New Genuine Part
9165140816 91651-40816 BOLT
9165540616 91655-40616 Bolt
9165540616 91651-60614 Bolt
9331515014 93315-15014 New Genuine Part
9338515012 93385-15012 SCREW
9351015012 93510-15012 New Genuine Part
9417110600 94171-10600 New Genuine Part
9453100600 94531-00600 Washer(For Outer Lever Oil Setting)
