RA43

Toyota CELICA · 1980 · 1,844 parts · 162 categories
RA43 ×

← Back to categories

1,844 items

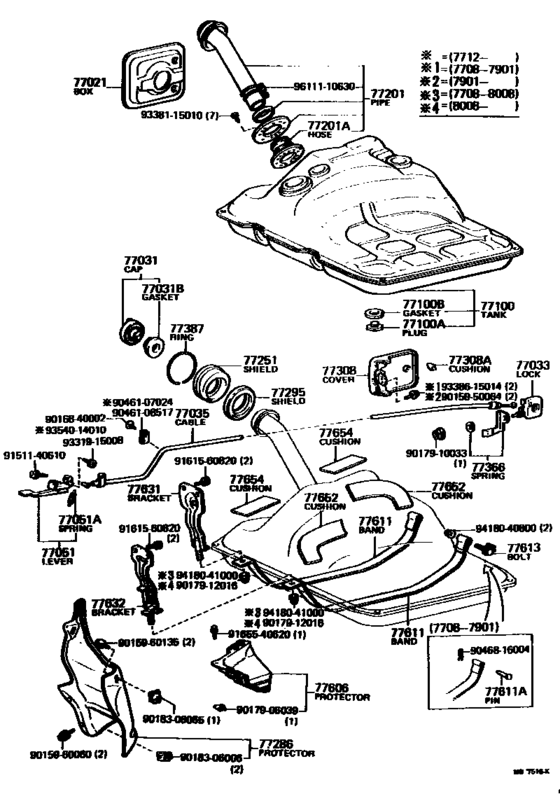

Fuel Tank & Tube ([08.1977 - ] (7708- )) 68
#OEMPart name
77021 61709-14040 Box Assy, Fuel Tank Inlet
77031 77310-12090 Cap Assy, Fuel Tank
77031 77310-12100 Cap Assy, Fuel Tank
77031 77316-12050 Gasket (For Fuel Tank Cap)
77033 77033-14020 Lock Sub-Assy, Fuel Tank Cap
77035 77035-14170 Cable Sub-Assy, Fuel Lid Lock Control
77035 77035-22040 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-14925 Tank Assy, Fuel
77100 77001-19096 Tank Assy, Fuel
77100 77012-14023 Tube Sub-Assy, Breather
77100 77001-14929 Tank Assy, Fuel
77100 90341-24036 Plug(For Fuel Tank)
77100 90430-24047 Gasket(For Fuel Tank)
77201 77201-14190 Pipe Sub-Assy, Fuel Tank Inlet
77201 77201-14171 Pipe Sub-Assy, Fuel Tank Inlet
77201 77213-14090 Hose, Fuel, No.1(For Fuel Tank Inlet Pipe)
77251 77291-14020 Shield, Fuel Tank, Inlet, No.1
77286 77277-14030 Protector, Fuel Tank Inlet Pipe
77295 77292-14010 Shield, Fuel Filler Pipe
77308 77350-14020 Cover Sub-Assy, Fuel Inlet Box
77308 90541-08003 Cushion(For Inspection Opening)
77366 77366-14011 Spring, Fuel Filler Opening Lid Hinge
77387 77391-14010 Ring, Fuel Inlet Box
77606 77641-14060 Protector Sub-Assy, Fuel Tank, No.1
77611 77601-14040 Band, Fuel Tank
77611 77601-14050 Band, Fuel Tank
77613 77645-14030 Bolt, Fuel Tank Band Set
77631 77613-14021 Bracket, Fuel Tank, No.1
77631 77613-14022 Bracket, Fuel Tank, No.1
77632 77614-14021 Bracket, Fuel Tank, No.2
77654 77652-14060 Cushion, Fuel Tank, No.2
77654 77652-20010 Cushion, Fuel Tank, No.1
7728114020 77281-14020 Bracket, Fuel Main Tube, No.1
7728214020 77282-14020 Bracket, Fuel Main Tube, No.2
9015950064 90159-50064 New Genuine Part
9015950064 90159-50225 New Genuine Part
9015960060 90159-60060 New Genuine Part
9015960060 90159-60497 SCREW WWASHER
9015960135 90159-60135 New Genuine Part
9016840002 90168-40002 SCREWTAPPING
9017906039 90179-06039 New Genuine Part
9017910033 90179-10033 Nut (For Front Wiper Arm Setting)
9017912016 90179-12016 NUT
9018306006 90183-06006 Retainer, Fuel Filler Pipe Protector
9018306065 90183-06065 NUTSPRG
9046106099 90461-06099 New Genuine Part
9046107016 90461-07016 New Genuine Part
9046107019 90461-07019 New Genuine Part
9046107024 90461-07024 New Genuine Part
9046108220 90461-08220 New Genuine Part
9046108517 90461-08517 New Genuine Part
9046108621 90461-08621 New Genuine Part
9046816004 90468-16004 CLIP
9151140610 91511-40610 New Genuine Part
9151140610 91511-B0610 BOLT FLANGE
9161560820 91615-60820 Bolt (For Transmission Control Cable Bracket)
9161560820 91611-B0816 Bolt
9165140614 91651-40614 Bolt
9165540620 91655-40620 Bolt(For Oil Receiver Pipe)
9165540620 91651-60618 Bolt(For Oil Receiver Pipe)
9331915008 93319-15008 SCREW
9338115010 93381-15010 SCREW
9338615014 93386-15014 New Genuine Part
9354014010 93540-14010 Clip, Headlining Retainer
9418040800 94180-40800 NUT
9418041000 94180-41000 Nut
9611110630 96111-10630 Clamp, Hose
9622110706 96221-10706 Clamp, Brake Tube, No.8
