RA410

Suzuki ALTO-A-STAR-CELERIO · 2,765 parts · 139 categories
RA410 ×

← Back to categories

2,765 items

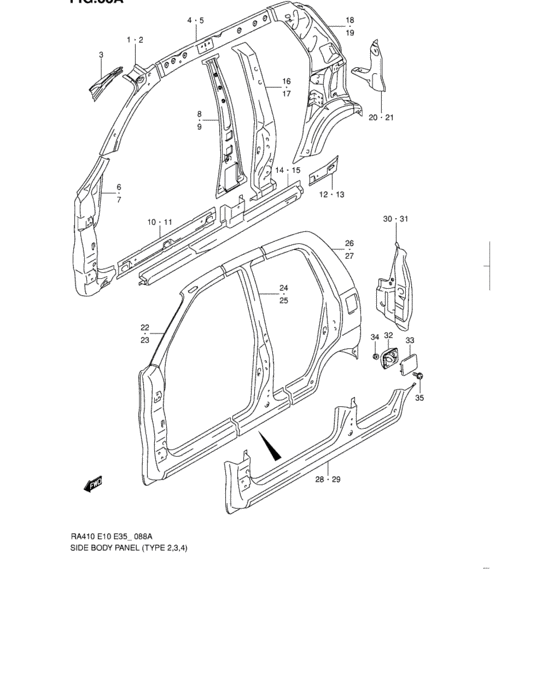

Side body panel (TYPE 2,3,4) 44
#OEMPart name
1 63111-84G00-000 Pillar,front inner upper,r
2 63511-76G00-000 PILLAR,FR INNER UPPER,L
3 63115-84G00-000 リンフォースメント,フロントインナアッパ,ライト
3 63112-84G10-000 REINFORCEMENT,FR INR UPR,R
4 63131-77G00-000 RAIL,ROOF SIDE INNER,R
5 63531-77G00-000 RAIL,ROOF SIDE INNER,L
6 63140-84G00-000 REINFORCEMENT,FR DOOR HNG,R
7 63540-76G01-000 REINFORCEMENT,FR DOOR HNG,L
8 63211-77G00-000 PANEL,CTR PILLAR INNER,R
9 63611-77G00-000 PANEL,CTR PILLAR INNER,L
10 63221-84G00-000 STRENGTH,SIDE SILL,R
11 63221-76G01-000 STRENGTH,SIDE SILL
12 63222-77G00-000 STRENGTH,SIDE SILL RR,R
13 63622-77G00-000 STRENGTH,SIDE SILL RR,L
14 63230-85G00-000 STRENGTH,SILL OUTER,R
15 63630-77G00-000 STRENGTH,SILL OUTER,L
16 63240-77G01-000 REINFORCEMENT,RR DOOR HNG,R
17 63640-77G01-000 REINFORCEMENT,RR DOOR HNG,L
18 63310-77G01-000 PANEL,QUARTER INNER,R
19 63710-77G01-000 PANEL,QUARTER INNER,L
20 63321-76G00-000 PANEL,RR COMB INNER,R
21 63721-76G00-000 PANEL,RR COMB INNER,L
22 64111-77GV0-P12 Panel,a-pillar,r
22 64111-77GV0-P11 PANEL,A-PILLAR,R
23 64511-77GV0-P12 Panel,a-pillar,l
23 64511-77GV0-P11 PANEL,A-PILLAR,L
24 64111-77GV0-P21 PANEL,B-PILLAR,R
25 64511-77GV0-P21 PANEL,B-PILLAR,L
26 64111-77GV0-P31 PANEL,QUARTER,R
27 64511-77GV0-P31 PANEL,QUARTER,L
28 64111-77GV0-P41 PANEL,SIDE SILL,R
29 64511-77GV0-P41 PANEL,SIDE SILL,L
30 64151-76G00-000 HOUSING,RR COMB OTR,R
31 64551-76G00-000 HOUSING,RR COMB OTR,L
32 64561-76GV0-000 BOX,FUEL INLET
32 64561-76G01-000 BOX,FUEL INLET
33 64570-76G01-000 リッド,フューエル,インレット
33 02162-0612B-000 SCREW - Bolt
33 64570-76G10-000 LID,FUEL INLET
33 02162-0612A-000 SCREW - Bolt, bracket
33 02162-06123-000 Bolt (6x12)
33 64570-76G02-000 リッド,フューエル,インレット
34 08316-10063-000 Nut
34 08316-1006B-000 NUT
