Search › Model › RA410
RA410

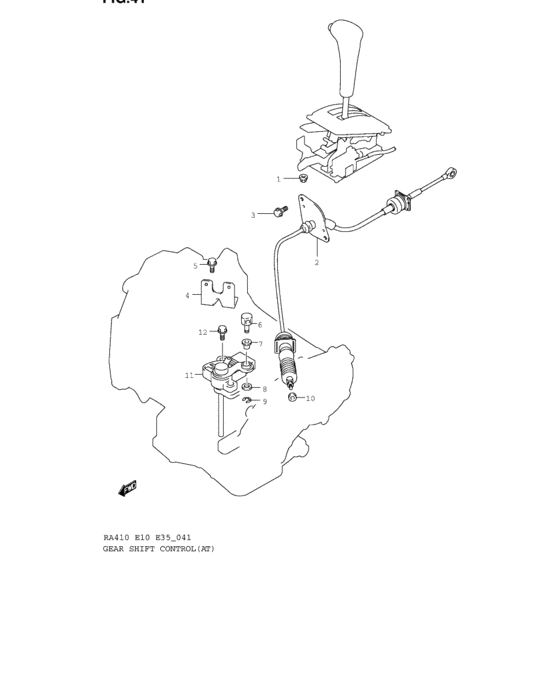

Gear shift control (AT) 23
| # | OEM | Part name |
|---|---|---|
| 1 | 08316-10083-000 | Nut |
| 1 | 08316-1008B-000 | NUT |
| 2 | 28210-76G11-000 | CABLE ASSY,SELECT |
| 3 | 02162-06203-000 | Bolt |
| 3 | 02162-0620C-000 | SCREW |
| 4 | 28221-61D11-000 | BRACKET,SELECT CABLE |
| 5 | 01550-08163-000 | Bolt, holder |
| 5 | 01550-0816B-000 | Bolt |
| 5 | 01550-0816A-000 | Bolt - Bolt, rear |
| 6 | 28291-78233-000 | JOINT,CABLE |
| 7 | 09305-08012-000 | BUSH |
| 8 | 08322-01083-000 | WASHER |
| 8 | 08322-0108B-000 | WASHER |
| 8 | 08322-0108A-000 | WASHER |
| 9 | 08332-11063-000 | E ring |
| 9 | 08332-1106B-000 | E RING - Circlip |
| 9 | 08332-1106A-000 | E RING - E ring, pinion |
| 10 | 08310-00063-000 | Nut |
| 10 | 08310-0006B-000 | NUT - Nut gear shift link rod |
| 10 | 08310-0006A-000 | NUT |
| 11 | 37720-76G31-000 | SWITCH ASSY,SHIFT |
| 12 | 25948-76G10-000 | Bolt, shift switch |
| 12 | 25948-76G11-000 | BOLT,SHIFT SWITCH |
| OEM | Part name | Category |
|---|---|---|
| 01550-08163-000 | Bolt, holder | Gear shift control (AT) |
| 01550-0816A-000 | Bolt - Bolt, rear | Gear shift control (AT) |
| 01550-0816B-000 | Bolt | Gear shift control (AT) |
| 02162-06203-000 | Bolt | Gear shift control (AT) |
| 02162-0620C-000 | SCREW | Gear shift control (AT) |
| 08310-00063-000 | Nut | Gear shift control (AT) |
| 08310-0006A-000 | NUT | Gear shift control (AT) |
| 08310-0006B-000 | NUT - Nut gear shift link rod | Gear shift control (AT) |
| 08316-10083-000 | Nut | Gear shift control (AT) |
| 08316-1008B-000 | NUT | Gear shift control (AT) |
| 08322-01083-000 | WASHER | Gear shift control (AT) |
| 08322-0108A-000 | WASHER | Gear shift control (AT) |
| 08322-0108B-000 | WASHER | Gear shift control (AT) |
| 08332-11063-000 | E ring | Gear shift control (AT) |
| 08332-1106A-000 | E RING - E ring, pinion | Gear shift control (AT) |
| 08332-1106B-000 | E RING - Circlip | Gear shift control (AT) |
| 09305-08012-000 | BUSH | Gear shift control (AT) |
| 25948-76G10-000 | Bolt, shift switch | Gear shift control (AT) |
| 25948-76G11-000 | BOLT,SHIFT SWITCH | Gear shift control (AT) |
| 28210-76G11-000 | CABLE ASSY,SELECT | Gear shift control (AT) |
| 28221-61D11-000 | BRACKET,SELECT CABLE | Gear shift control (AT) |
| 28291-78233-000 | JOINT,CABLE | Gear shift control (AT) |
| 37720-76G31-000 | SWITCH ASSY,SHIFT | Gear shift control (AT) |
