RA410

Suzuki ALTO-A-STAR-CELERIO · 2,765 parts · 139 categories
RA410 ×

← Back to categories

2,765 items

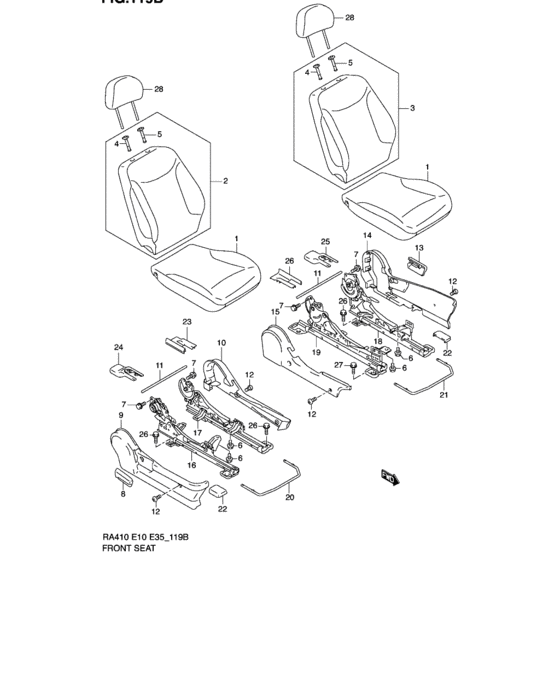

Front seat (TYPE 2,3,4) 36
#OEMPart name
1 85101-76G00-EY1 Cushion assy,fr
1 85101-76G00-JH1 CUSHION ASSY,FR
2 85301-76G50-EY1 BACK ASSY,FR
2 85301-76G50-JH1 BACK ASSY,FR
4 85341-81A00-P4Z GUIDE,HEADRESTRAINT
5 85840-81A10-P4Z GUIDE,HEADRESTRAINT
6 01550-08123-000 Bolt - Plug, oil gallery
6 01550-0812B-000 Bolt - Plug, drain
6 01550-0812A-000 Bolt
7 01550-10203-000 Bolt - Bolt, lower
7 01550-1020A-000 Bolt - Bolt, bal sprocket
8 85211-76G00-P4Z ノブ,リクライニング,ライト(グレー)
8 85211-75H00-P4Z KNOB,RECL,R
9 85221-76G00-P4Z COVER,RECL OUTSIDE,R
10 85241-76G00-P4Z COVER,RECL INSIDE,R
11 85250-76G00-000 ROD,FR ADJUSTER
12 03241-05083-000 Screw
12 03241-0508A-000 SCREW
13 85711-76G00-P4Z ノブ,リクライニング,レフト(グレー)
13 85711-75H00-P4Z KNOB,RECL,L
14 85721-76G00-P4Z COVER,RECL OUTSIDE,L
15 85741-76G00-P4Z COVER,RECL INSIDE,L
16 86603-76G01-000 ADJUSTER ASSY,FR OUTSIDE,R
17 86601-76G01-000 ADJUSTER ASSY,FR INSIDE,R
18 86604-76G01-000 ADJUSTER ASSY,FR OUTSIDE,L
19 86602-76G01-000 ADJUSTER ASSY,FR INSIDE,L
20 86691-76G01-000 HANDLE,FR ADJ,R
21 86891-76G01-000 HANDLE,FR ADJUSTER,L
22 85492-76G00-P4Z COVER,FR OUTSIDE
23 85495-76G00-P4Z COVER,RR INSIDE,R
24 85496-76G00-P4Z COVER,RR OUTSIDE
26 85995-76G00-P4Z COVER,RR INSIDE,L
27 01551-10253-000 Bolt
27 01551-1025A-000 Bolt
28 86401-76GA0-P7T Headrestraint assy
28 86401-76GA0-R5J HEADRESTRAINT ASSY
