RA410

Suzuki ALTO-A-STAR-CELERIO · 2,765 parts · 139 categories
RA410 ×

← Back to categories

2,765 items

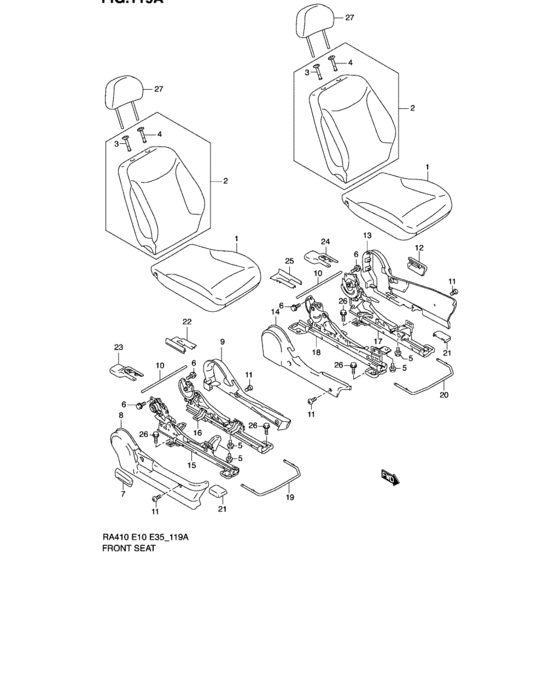

Front seat (TYPE 1:JSAEHA62SY5101013~,JSAEHA62S00100120~) 36
#OEMPart name
1 85101-76G00-CZ7 Cushion assy, front - Beige/gray
1 85101-76G00-CZ8 Cushion assy, front - Blue/gray
2 85301-76G00-CZ7 Back assy, front - Beige,gray
2 85301-76G00-CZ8 Back assy, front - Blue,gray
3 85341-81A00-T01 GUIDE,HEADRESTRAINT
4 85840-81A10-T01 GUIDE,HEADRESTRAINT
5 01550-08123-000 Bolt - Plug, oil gallery
5 01550-0812B-000 Bolt - Plug, drain
5 01550-0812A-000 Bolt
6 01550-10203-000 Bolt - Bolt, lower
6 01550-1020A-000 Bolt - Bolt, bal sprocket
7 85211-76G00-T01 KNOB,RECL,R
8 85221-76G00-T01 COVER,RECL OUTSIDE,R
9 85241-76G00-T01 COVER,RECL INSIDE,R
10 85250-76G00-000 ROD,FR ADJUSTER
11 03241-05083-000 Screw
11 03241-0508A-000 SCREW
12 85711-76G00-T01 Knob,recl,l
12 85711-75H00-T01 KNOB,RECL,L
13 85721-76G00-T01 COVER,RECL OUTSIDE,L
14 85741-76G00-T01 Cover,recl inside,l
15 86603-76G01-000 ADJUSTER ASSY,FR OUTSIDE,R
16 86601-76G01-000 ADJUSTER ASSY,FR INSIDE,R
17 86604-76G01-000 ADJUSTER ASSY,FR OUTSIDE,L
18 86602-76G01-000 ADJUSTER ASSY,FR INSIDE,L
19 86691-76G01-000 HANDLE,FR ADJ,R
20 86891-76G01-000 HANDLE,FR ADJUSTER,L
21 85492-76G00-T01 COVER,FR OUTSIDE
22 85495-76G00-T01 COVER,RR INSIDE,R
23 85496-76G00-T01 COVER,RR OUTSIDE
25 85995-76G00-T01 COVER,RR INSIDE,L
26 01551-10253-000 Bolt
26 01551-1025A-000 Bolt
27 86401-76G00-CZ7 Headrestraint assy - Beige/gray
27 86401-76G01-CZ7 Headrestraint assy
27 86401-76G00-CZ8 HEADRESTRAINT ASSY
