RA410

Suzuki ALTO-A-STAR-CELERIO · 2,765 parts · 139 categories
RA410 ×

← Back to categories

2,765 items

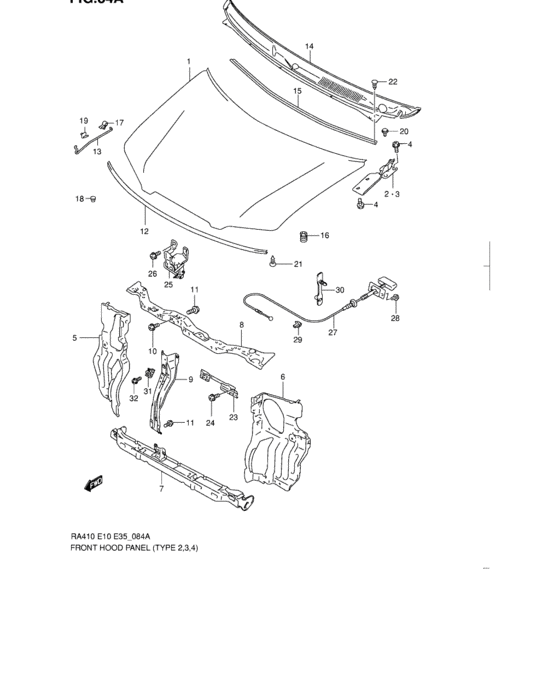

Front hood panel (TYPE 2,3,4) 35
#OEMPart name
1 57300-76G00-000 PANEL,FRONT HOOD
2 57410-84G00-000 HINGE,FR HOOD,R
3 57420-84G00-000 HINGE,FR HOOD,L
4 02162-06163-000 Screw - Bolt
4 02162-0616B-000 SCREW - Bolt, adjust
5 58111-76GV0-000 PANEL,LAMP SUPPORT,R
6 58131-76GV0-000 PANEL,LAMP SUPPORT,L
7 58210-84G00-000 クロスメンバ,フロント,ロア
7 58210-84G02-000 CROSSMEMBER,FR LOWER
8 58230-76G01-000 MEMBER,HOOD LOCK
9 58241-84G00-000 BRACE,HOOD LOCK
10 09132-05049-000 SCREW(5X12)
11 02162-06123-000 Bolt (6x12)
11 02162-0612B-000 SCREW - Bolt
11 02162-0612A-000 SCREW - Bolt, bracket
12 72151-76G01-000 SEAL,HOOD FR
13 72311-50E00-000 STAY,FRONT HOOD
14 72331-76G10-5PK GARNISH,COWL TOP
14 72331-76G00-5PK GARNISH,COWL TOP
15 72341-76G00-000 SEAL,HOOD RR
16 72372-82000-000 CUSHION,BACK DR SIDE
17 09209-09007-000 LINKAGE - Connector
18 09321-10023-000 CUSHION
19 09403-07311-000 CLAMP
20 09409-08331-000 CLIP
21 09409-10304-5ES CLIP(BLACK)
21 09409-05308-5PK CLIP(BLACK)
23 72451-76G10-000 PANEL,AIR GUARD
25 82110-76G10-000 LATCH,HOOD
27 82160-76G10-000 CABLE,HOOD LATCH RELEASE
27 82160-84G00-000 CABLE,HOOD LATCH RELEASE
28 09409-07308-5PK CLIP(BLACK)
29 09403-04401-000 CLAMP
30 09407-05403-000 CLAMP,L:88
31 58242-84G00-000 BRACKET,HORN
